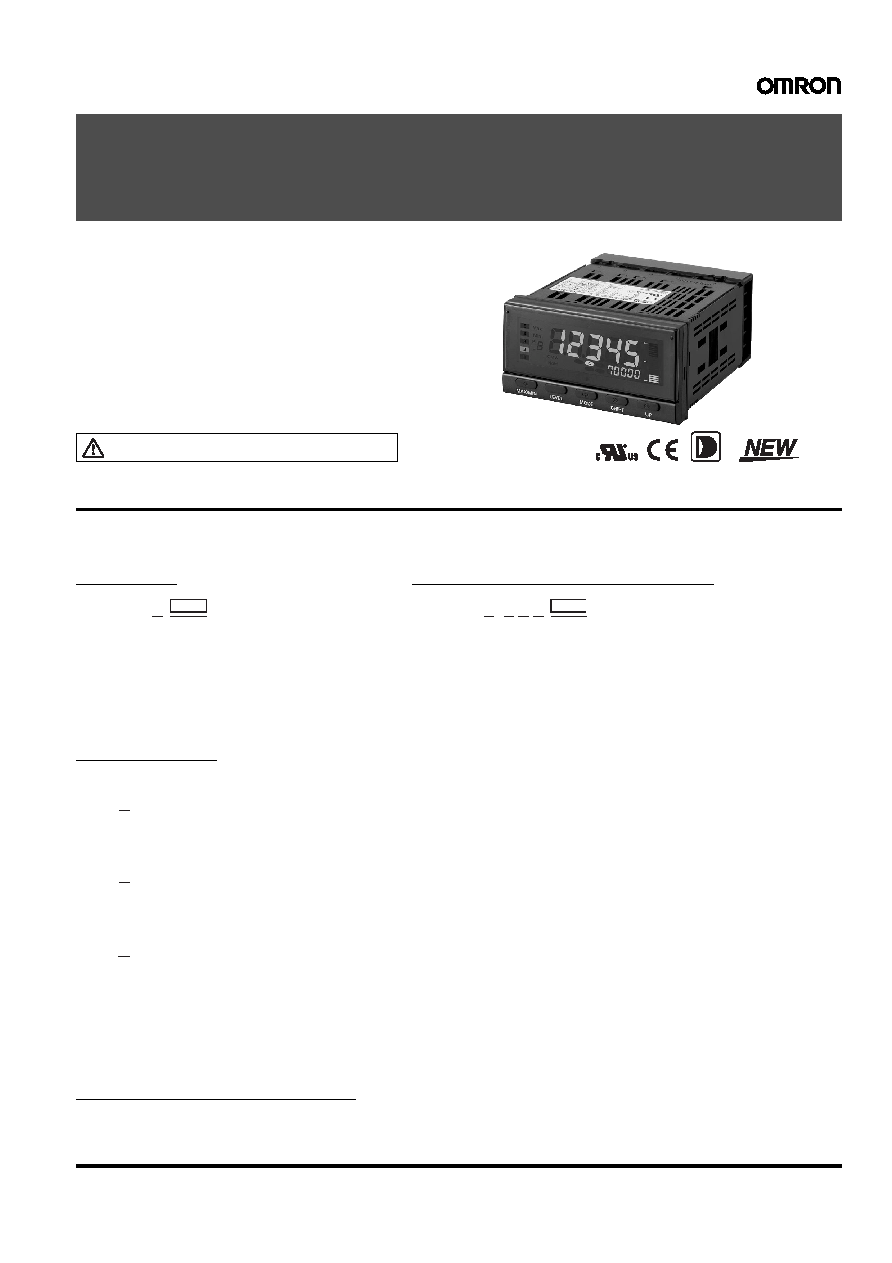

Up/Down Counting Pulse Indicator

K3HB-C

Up/Down Counting Pulse Indicator

K3HB-C

Measure High-speed Up/down Pulses with

this Up/down Pulse Meter.

• Perfect for Measuring Rotary Encoder and ON/OFF Pulse

Signals at High Speed

Cumulative pulse input is 50 kHz, quadrature pulse inputs are 25 kHz,

and up/down pulse inputs are 30 kHz.

Note: No-voltage contacts of up to 30 Hz are supported.

• The count value can be converted to any value.

The length equivalent for any pulse can be set to any desired value.

This is effective for feed amount and position monitor displays.

Refer to Common Precautions on page 30.

Model Number Structure

■ Model Number Legend

Base Units and Optional Boards can be ordered individually or as sets.

Note: 1. CPA can be combined with relay outputs only.

2. Only one of the following can be used by each Digital Indicator:

RS-232C/RS-485 communications, a linear output, or DeviceNet communications.

Accessories (Sold Separately)

K32-DICN: Special Cable (for event inputs with 8-pin connector)

K32-BCD: Special BCD Output Cable

Base Units

1. Input Sensor Codes

NB: NPN input/voltage pulse input

PB: PNP input

5. Supply Voltage

100-240 VAC: 100 to 240 VAC

24 VAC/VDC: 24 VAC/VDC

Optional Board

Sensor Power Supply/Output Boards

Relay/Transistor Output Boards

Event Input Boards

Base Units with Optional Boards

2. Sensor Power Supply/Output Type Codes

None:

None

CPA:

Relay output (PASS: SPDT) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 1.)

L1A:

Linear current output (DC0(4)-20 mA) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

L2A:

Linear voltage output (DC0(1)-5 V, 0 to 10 V) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

Sensor power supply (12 VDC ±10%, 80 mA)

FLK1A: Communications (RS-232C) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

FLK3A: Communications (RS-485) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

3. Relay/Transistor Output Type Codes

None: None

C1:

Relay contact (H/L: SPDT each)

C2:

Relay contact (HH/H/LL/L: SPST-NO each)

T1:

Transistor (NPN open collector: HH/H/PASS/L/LL)

T2:

Transistor (PNP open collector: HH/H/PASS/L/LL)

BCD: BCD output + transistor output (NPN open collector: HH/H/PASS/L/LL)

DRT: DeviceNet (See note 2.)

4. Event input Type Codes

None: None

5 points (M3 terminal blocks) NPN open collector

8 points (10-pin MIL connector) NPN open collector

5 points (M3 terminal blocks) PNP open collector

8 points (10-pin MIL connector) PNP open collector

K3HB-C

K33-

K34-

K35-

2 3 4

K3HB-C

@-@@@
