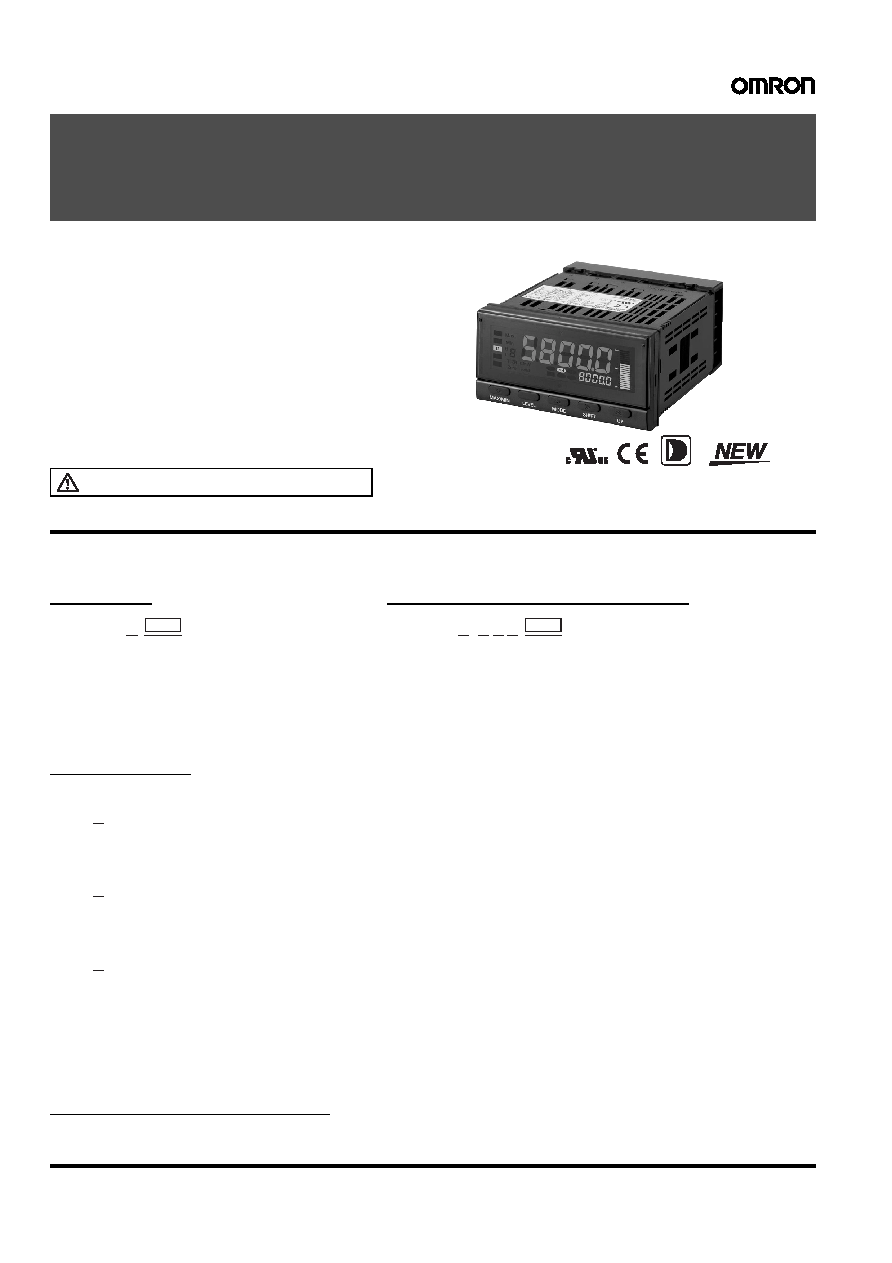

Timer Interval Indicator

K3HB-P

Timer Interval Indicator

K3HB-P

Digital Time Interval Meter for Measuring

Passing Speed, Time, or Cycle between Two

Points.

• Measures Wide Range of Pulse Interval Times

Measures, calculates, and displays pulse intervals between two

points. Wide range for pulse interval measurements, from 10 ms to

3,200 s, max.

• Six Measurement Operations, Including Passing Speed, Time,

and Cycle Measurement between Two Points

One Digital Time Interval Meter has six measurement functions, to

support a variety of pulse interval measurement applications. Select

the best function for your application from the following: Passing

speed, cycle, time difference, time band, measuring length, and

interval.

Refer to Common Precautions on page 30.

Model Number Structure

■ Model Number Legend

Base Units and Optional Boards can be ordered individually or as sets.

Note: 1. CPA can be combined with relay outputs only.

2. Only one of the following can be used by each Digital Indicator:

RS-232C/RS-485 communications, a linear output, or DeviceNet communications.

Accessories (Sold Separately)

K32-DICN: Special Cable (for event inputs with 8-pin connector)

K32-BCD: Special BCD Output Cable

Base Units

1. Input Sensor Codes

NB: NPN input/voltage pulse input

PB: PNP input

5. Supply Voltage

100-240 VAC: 100 to 240 VAC

24 VAC/VDC: 24 VAC/VDC

Optional Board

Sensor Power Supply/Output Boards

Relay/Transistor Output Boards

Event Input Boards

Base Units with Optional Boards

2. Sensor Power Supply/Output Type Codes

None:

None

CPA:

Relay output (PASS: SPDT) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 1.)

L1A:

Linear current output (DC0(4)-20 mA) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

L2A:

Linear voltage output (DC0(1)-5 V, 0 to 10 V) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

Sensor power supply (12 VDC ±10%, 80 mA)

FLK1A: Communications (RS-232C) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

FLK3A: Communications (RS-485) + Sensor power supply

(12 VDC±10%, 80 mA) (See note 2.)

3. Relay/Transistor Output Type Codes

None: None

C1:

Relay contact (H/L: SPDT each)

C2:

Relay contact (HH/H/LL/L: SPST-NO each)

T1:

Transistor (NPN open collector: HH/H/PASS/L/LL)

T2:

Transistor (PNP open collector: HH/H/PASS/L/LL)

BCD: BCD output + transistor output (NPN open collector: HH/H/PASS/L/LL)

DRT: DeviceNet (See note 2.)

4. Event input Type Codes

None: None

5 points (M3 terminal blocks) NPN open collector

8 points (10-pin MIL connector) NPN open collector

5 points (M3 terminal blocks) PNP open collector

8 points (10-pin MIL connector) PNP open collector

K3HB-P

K33-

K34-

K35-

2 3 4

K3HB-P

@-@@@
