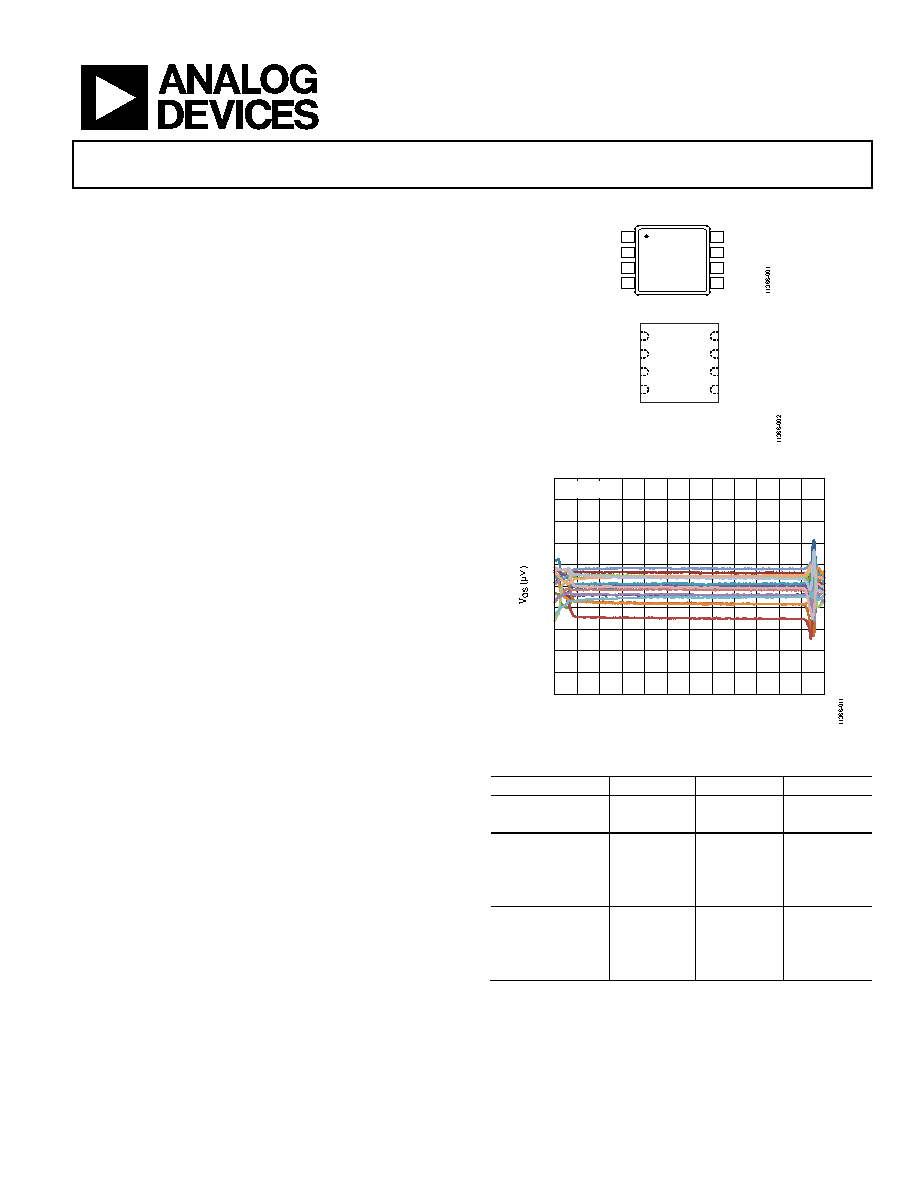

1 / 32 page

18 V, Precision, 725 µA, 4 MHz,

CMOS RRIO Operational Amplifier

Data Sheet

ADA4661-2

Rev. 0

Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

Technical Support

www.analog.com

FEATURES

Low power at high voltage (18 V): 725 μA maximum

Low offset voltage

150 µV maximum at VSY/2

300 µV maximum over entire common-mode range

Low input bias current: 15 pA maximum

Gain bandwidth product: 4 MHz typical at AV = 100

Unity-gain crossover: 4 MHz typical

−3 dB closed-loop bandwidth: 2.1 MHz typical

Single-supply operation: 3 V to 18 V

Dual-supply operation: ±1.5 V to ±9 V

Unity-gain stable

APPLICATIONS

Current shunt monitors

Active filters

Portable medical equipment

Buffer/level shifting

High impedance sensor interfaces

Battery powered instrumentation

GENERAL DESCRIPTION

The ADA4661-2 is a dual, precision, rail-to-rail input/output

amplifier optimized for low power, high bandwidth, and wide

operating supply voltage range applications.

The ADA4661-2 performance is guaranteed at 3.0 V, 10 V,

and 18 V power supply voltages. It is an excellent selection for

applications that use single-ended supplies of 3.3 V, 5 V, 10 V, 12

V and 15 V, and dual supplies of ±2.5 V, ±3.3 V, and ±5 V. It

uses the Analog Devices, Inc., patented DigiTrim® trimming

technique, which achieves low offset voltage. Additionally, the

unique design architecture of the ADA4661-2 allows it to have

excellent power supply rejection, common-mode rejection, and

offset voltage when operating in the common-mode voltage

range of −VSY + 1.5 V to +VSY − 1.5 V.

The ADA4661-2 is specified over the extended industrial

temperature range (−40°C to +125°C) and is available in

8-lead MSOP and 8-lead LFCSP (3 mm × 3 mm) packages.

PIN CONNECTION DIAGRAMS

Figure 1. 8-Lead MSOP

Figure 2. 8-Lead LFCSP

Figure 3. Input Offset Voltage vs. Common-Mode Voltage

Table 1. Precision Low Power Op Amps (<1 mA)

Supply Voltage

5 V

12 V to 16 V

30 V

Single

ADA4505-1

OP196

OP777

AD8500

Dual

ADA4505-2

AD8657

ADA4096-2

AD8502

OP296

OP727

AD8506

ADA4661-2

AD8682

ADA4666-2

AD8622

Quad

ADA4505-4

AD8659

ADA4096-4

AD8504

OP496

OP747

AD8508

AD8684

AD8624

OUT A 1

–IN A 2

+IN A 3

V–

4

V+

8

OUT B

7

–IN B

6

+IN B

5

ADA4661-2

TOP VIEW

(Not to Scale)

ADA4661-2

TOP VIEW

(Not to Scale)

NOTES

1. CONNECT THE EXPOSED PAD TO V– OR

LEAVE IT UNCONNECTED.

3

+IN A

4

V–

1

OUT A

2

–IN A

6 –IN B

5 +IN B

8 V+

7 OUT B

–250

–200

–150

–100

–50

0

50

100

150

200

250

0

1.5

3.0

4.5

6.0

7.5

9.0 10.5 12.0 13.5 15.0 16.5 18.0

VCM (V)

VSY = 18V
