Data Sheet
ADA4661-2
Rev. 0 | Page 13 of 32

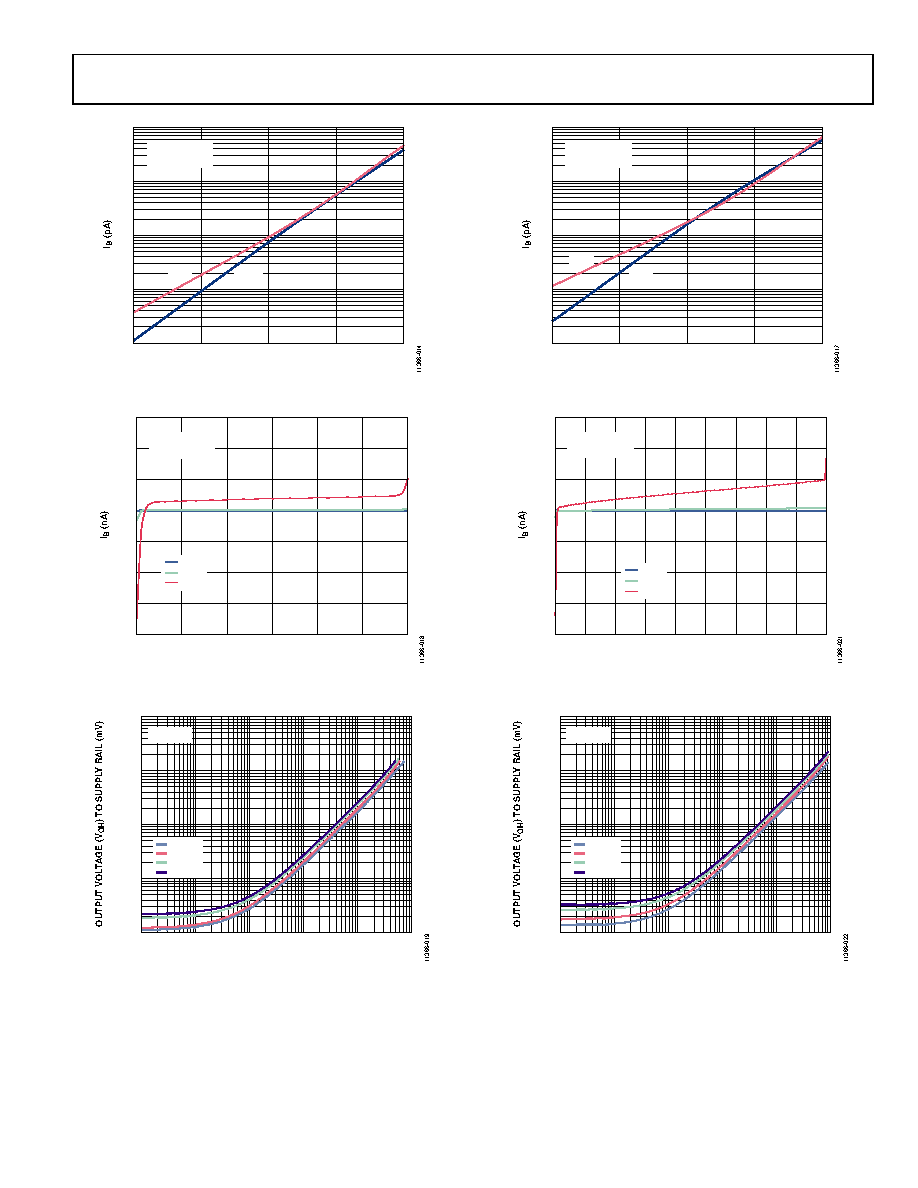

Figure 18. Input Bias Current vs. Temperature
Figure 19. Input Bias Current vs. Common-Mode Voltage
Figure 20. Output Voltage (VOH) to Supply Rail vs. Load Current
Figure 21. Input Bias Current vs. Temperature
Figure 22. Input Bias Current vs. Common-Mode Voltage
Figure 23. Output Voltage (VOH) to Supply Rail vs. Load Current
0.1
1
10
100
1000
25
50
75
100
125
TEMPERATURE (°C)
|IB+|
|IB–|
VSY = 3V
VCM = VSY/2
–4
–3
–2
–1
0
1
2
3
0
0.5
1.0
1.5
2.0
2.5
3.0
VCM (V)
VSY = 3V
VCM = VSY/2
25°C
85°C
125°C
1
10
100
1000
10000
0.001
0.01
0.1
1
10
100
LOAD CURRENT (mA)
VSY = 3V
–40°C
+25°C
+85°C
+125°C
0.1
1
10
100
1000
25
50
75
100
125
TEMPERATURE (°C)
VSY = 18V
|IB+|
|IB–|
VCM = VSY/2
–4
–3
–2
–1
0
1
2
3
VCM (V)
VSY = 18V
VCM = VSY/2
25°C
85°C
125°C
0
2
4
6
8
10
12
14
16
18
1
10
100
1000
10000
0.001
0.01
0.1
1
10
100
LOAD CURRENT (mA)
VSY = 18V
–40°C
+25°C
+85°C
+125°C
