ISL8117

3

FN8666.3

June 4, 2015

Submit Document Feedback

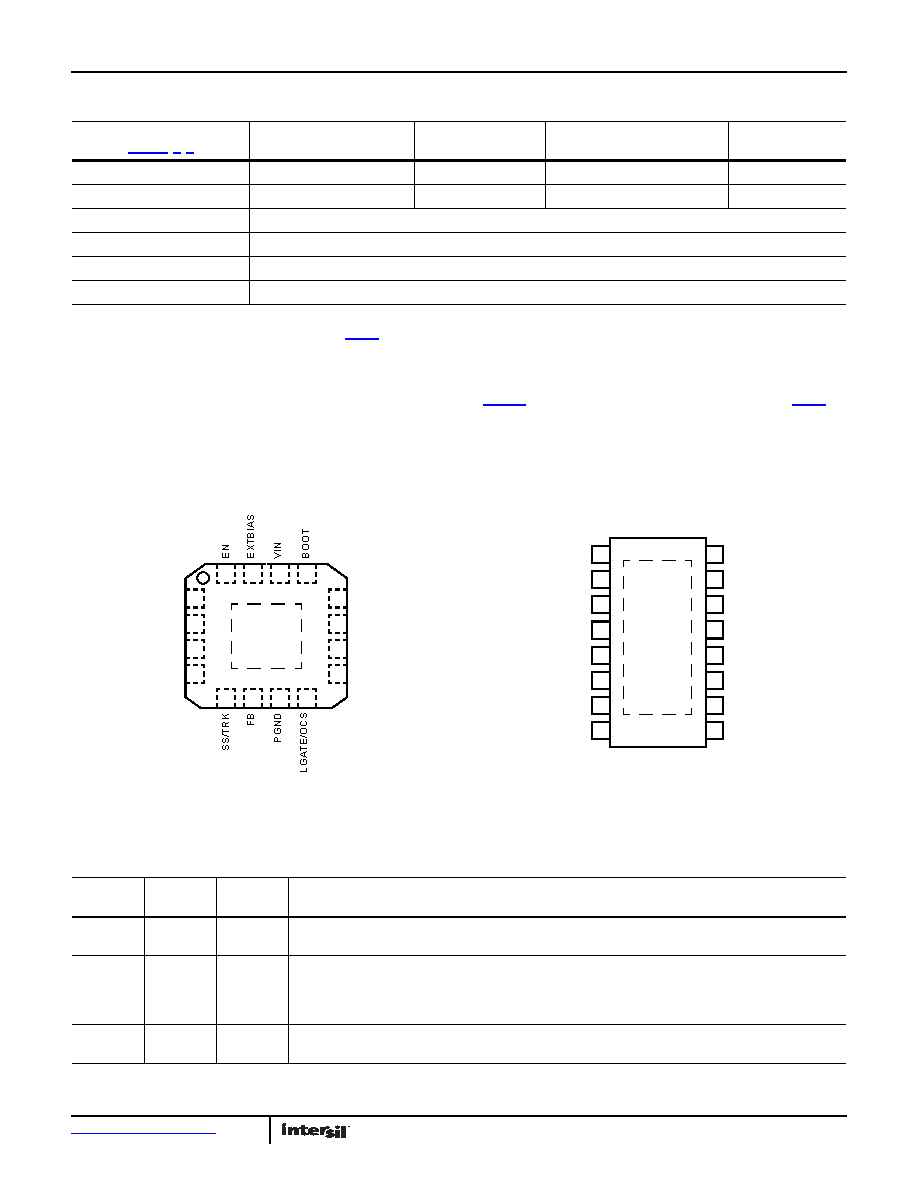

Pin Configurations

ISL8117

16 LD 4x4 QFN

TOP VIEW

ISL8117

16 LD HTSSOP

TOP VIEW

Ordering Information

PART NUMBER

(Notes 1, 2, 3)

PART

MARKING

TEMP. RANGE

(°C)

PACKAGE

(RoHS Compliant)

PKG.

DWG. #

ISL8117FRZ

81 17FRZ

-40 to +125

16 Ld 4x4 QFN

L16.4x4A

ISL8117FVEZ

8117 FVEZ

-40 to +125

16 Ld HTSSOP

M16.173A

ISL8117EVAL1Z

Evaluation Board for HTSSOP

ISL8117DEMO1Z

Demonstration Board for HTSSOP

ISL8117EVAL2Z

Evaluation Board for QFN

ISL8117DEMO2Z

Demonstration Board for QFN

NOTES:

1. Add “-T*” suffix for tape and reel. Please refer to TB347 for details on reel specifications.

2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials and 100% matte tin

plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-free

products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

3. For Moisture Sensitivity Level (MSL), please see device information page for ISL8117. For more information on MSL please see techbrief TB363.

1

3

4

15

CLKOUT

MOD/SYNC

PGOOD

RT

16

14

13

2

12

10

9

11

6

57

8

UGATE

PHASE

ISEN

VCC5V

SGND

14

15

16

9

13

12

11

10

1

2

3

4

5

7

6

8

EXTBIAS

EN

CLKOUT

MOD/SYNC

PGOOD

RT

FB

SS/TRK

VIN

UGATE

PHASE

ISEN

VCC5V

LGATE/OCS

PGND

BOOT

SGND

Pin Descriptions

PIN #

(HTSSOP)

PIN #

(QFN)

PIN

NAME

FUNCTION

3

1

CLKOUT

Clock signal output. The frequency of the clock signal is the switching frequency set by the resistor from RT

to ground.

4

2

MOD/SYNC Dual function pin. Connect this pin to VCC5V to select diode emulation mode with pulse skipping at light-load.

While connected to ground or floating, the controller operates in PWM mode at light-load.

Connect this pin to an external clock for synchronization. The controller operates in PWM Mode at light-load

when synchronized with an external clock.

5

3

PGOOD

Open-drain logic output used to indicate the status of output voltage. This pin is pulled down when the output

is not within ±11% of the nominal voltage or the EN pin is pulled LOW.
