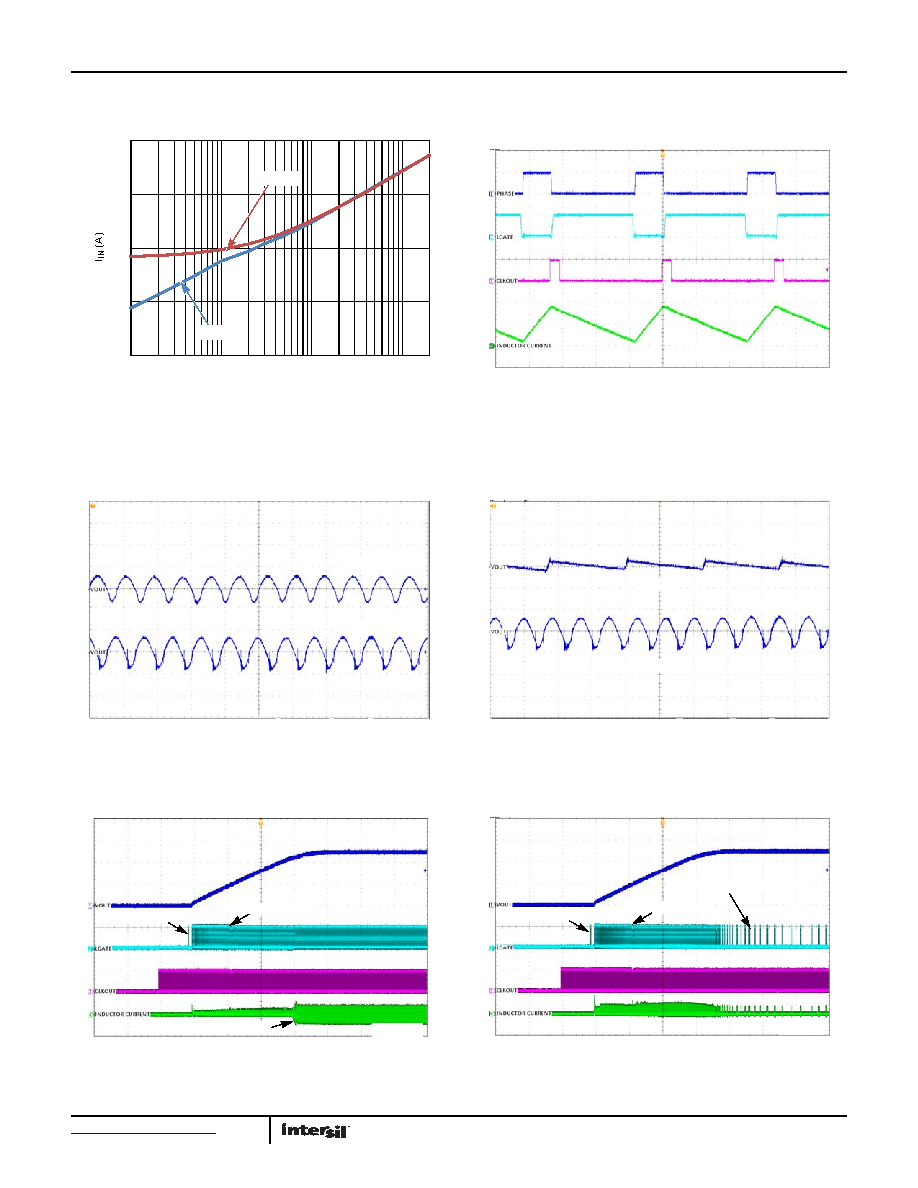

12 / 23 page  ISL8117 12 FN8666.3 June 4, 2015 Submit Document Feedback FIGURE 18. INPUT CURRENT COMPARISON WITH MODE = CCM/DEM, VIN = 48V FIGURE 19. PHASE, LGATE, CLKOUT AND INDUCTOR CURRENT WAVEFORMS FIGURE 20. OUTPUT RIPPLE, MODE = CCM FIGURE 21. OUTPUT RIPPLE, MODE = DEM FIGURE 22. START-UP WAVEFORMS; MODE = CCM, LOAD = 0A, VIN =48V FIGURE 23. START-UP WAVEFORMS; MODE = DEM, LOAD = 0A, VIN = 48V Typical Performance Curves OscilloscopeplotsaretakenusingtheISL8117EVAL2Zevaluationboard,V IN = 18 to 60V, VOUT = 12V, IOUT = 20A unless otherwise noted. (Continued) 0.001 0.01 0.1 1 10 0.01 0.1 1 10 IIN (DEM) IIN (CCM) IOUT (A) IL 5A/DIV LGATE 5V/DIV CLKOUT 5V/DIV PHASE 50V/DIV 1µs/DIV 4µs/DIV VOUT 50mV/DIV VOUT 50mV/DIV NO LOAD, VIN = 48V 20A LOAD, VIN = 48V 4µs/DIV VOUT 50mV/DIV VOUT 50mV/DIV NO LOAD, VIN = 48V 20A LOAD, VIN = 48V 1ms/DIV 4ms/DIV VOUT 5V/DIV LGATE 5V/DIV CLKOUT 5V/DIV IL 10A/DIV DEM TO CCM TRANSITION EXTBIAS KICK-IN BOOT CAP REFRESH 4ms/DIV VOUT 5V/DIV LGATE 5V/DIV CLKOUT 5V/DIV IL 5A/DIV EXTBIAS KICK-IN BOOT CAP REFRESH BURST MODE OPERATION |
|
|
