ISL8117
13
FN8666.3
June 4, 2015
Submit Document Feedback

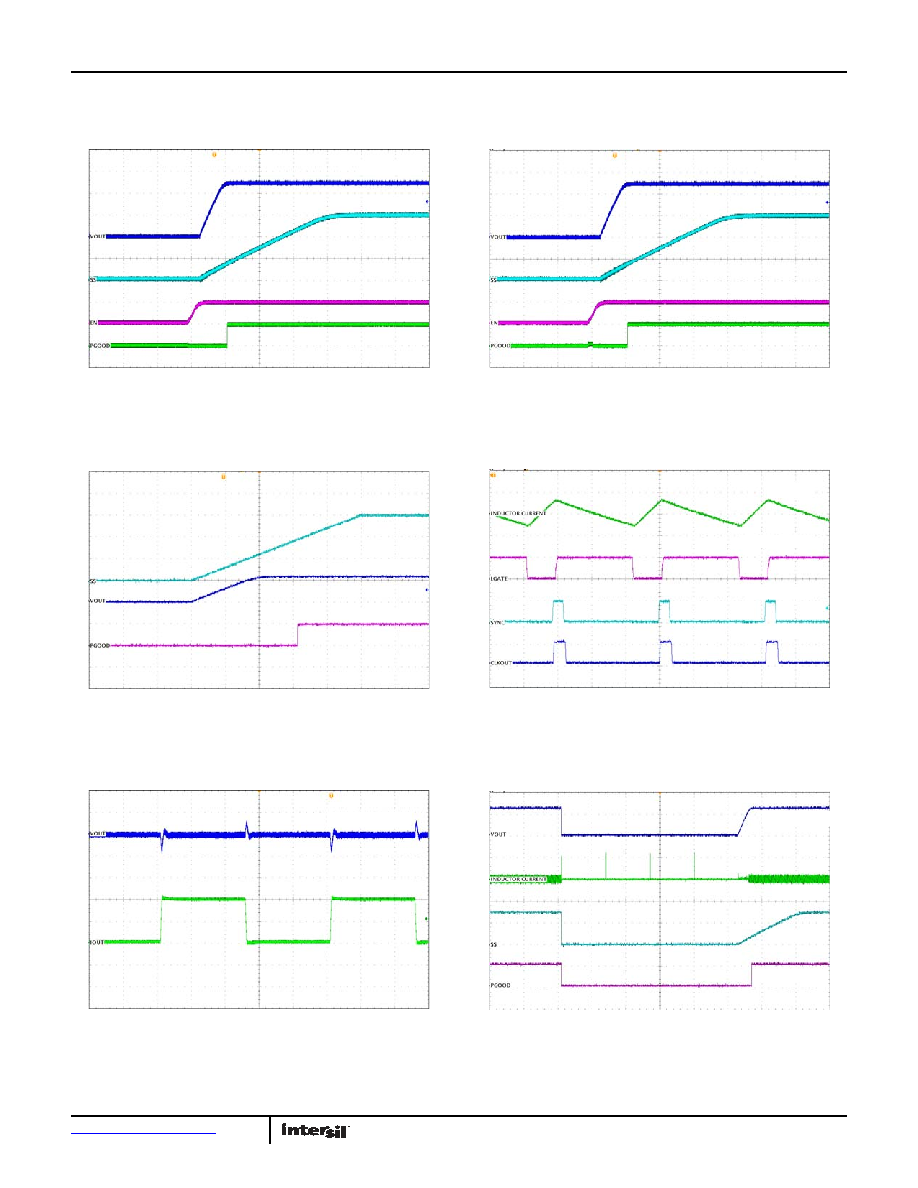

FIGURE 24. START-UP WAVEFORMS; MODE = CCM, LOAD = 0A,
VIN = 48V
FIGURE 25. START-UP WAVEFORMS; MODE = DEM, LOAD = 0A,
VIN = 48V
FIGURE 26. TRACKING; VIN = 48V, LOAD = 0A, MODE = CCM
FIGURE 27. FREQUENCY SYNCHRONIZATION; VIN = 48V, LOAD = 0A,
DEFAULT fSW = 300kHz, SYNC fSW = 400kHz
FIGURE 28. LOAD TRANSIENT RESPONSE; VIN = 48V, 0A TO 20A
1A/µs STEP LOAD, CCM MODE
FIGURE 29. OCP RESPONSE, OUTPUT SHORT-CIRCUITED FROM NO
LOAD TO GROUND AND RELEASED, CCM MODE,
VIN = 48V
Typical Performance Curves OscilloscopeplotsaretakenusingtheISL8117EVAL2Zevaluationboard,V
IN = 18 to 60V,
VOUT = 12V, IOUT = 20A unless otherwise noted. (Continued)
20ms/DIV
VOUT 5V/DIV
SS 1V/DIV
EN 5V/DIV
PGOOD 5V/DIV
20ms/DIV
VOUT 5V/DIV
SS 1V/DIV
EN 5V/DIV
PGOOD 5V/DIV
1ms/DIV
SS 500mV/DIV
VOUT 10V/DIV
PGOOD 5V/DIV
800ns/DIV
IL 5A/DIV
LGATE 5V/DIV
SYNC 5V/DIV
CLKOUT 5V/DIV
400µs/DIV
VOUT 500mV/DIV
IOUT 10A/DIV
40ms/DIV
VOUT 10V/DIV
IL 20A/DIV
SS 2V/DIV
PGOOD 5V/DIV
