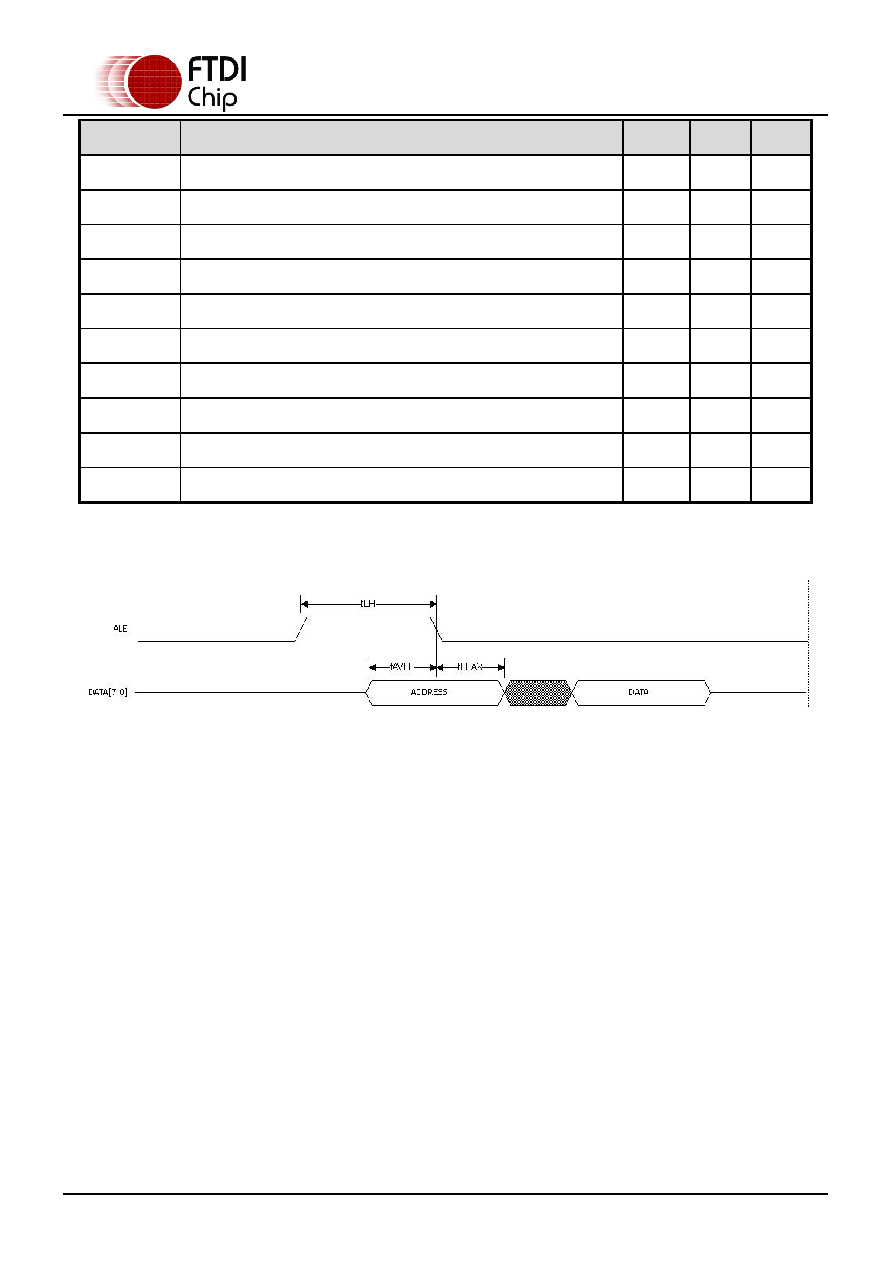

FT120 USB DEVICE CONTROLLER WITH PARALLEL BUS IC
Datasheet Version 1.2
Clearance No.: FTDI#
291
Symbol
Parameter
Min
Max
Unit
t(WC-WD)
Write command to write data
600
ns
Read Timings:
tCLRL
CS_n (DMACK_n) Low to RD_n Low Time
0
ns
tRHCH
RD_n High to CS_n (DMACK_n) High Time
5
ns
tAVRL
A0 Valid to RD_n Low Time
0
ns
tRL
RD_n Low Pulse Width
20
ns
tRLDD
RD_n Low to Data Valid Time
20
ns
tRHDZ
RD_n High to Data Hi-Z Time
20
ns
tRC
Read Cycle Time
500
ns
t(WC-RD)
Write command to read data
600
ns
Table 8-6
Parallel Interface IO timing
Figure 8-1 ALE Timing
