The FT120T is supplied in a RoHS compliant 28 pin TSSOP package. The package is lead (Pb) free and

uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.

This package is nominally 4.4mm x 9.7mm body (6.4mm x9.7mm including pins). The pins are on a 0.65

mm pitch. The above mechanical drawing shows the TSSOP-28 package.

All dimensions are in millimetres.

9.2 TSSOP-28 Package Markings

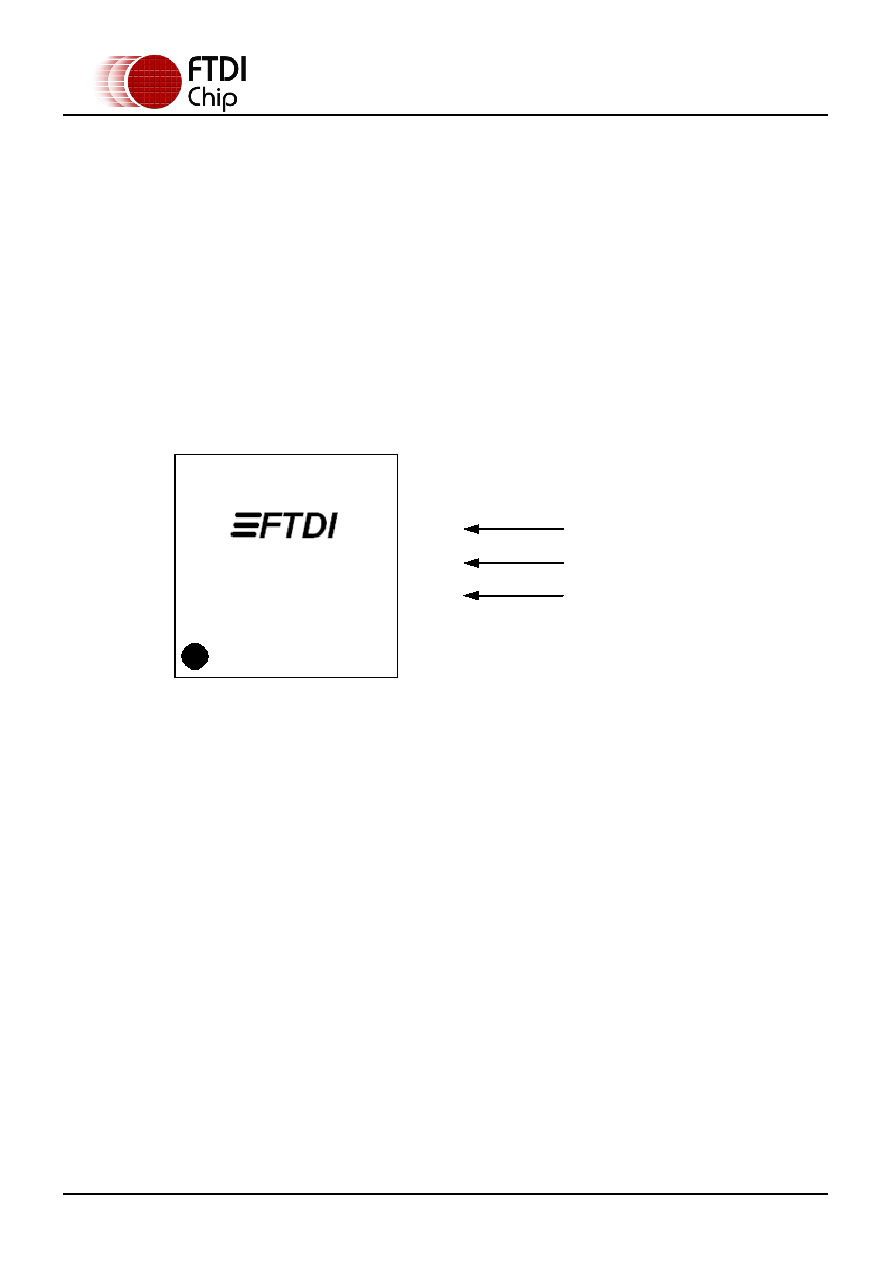

Figure 9-2 TSSOP-28 Package Markings

The date code format is YYWW where WW = 2 digit week number, YY = 2 digit year number.

Line 1 – FTDI Logo

Line 2 – Date Code, Revision

Line 3 – FTDI Part Number

FT120T

YYWW-B
