41 / 72 page

DocID026217 Rev 1

41/72

STLED524

Detailed description

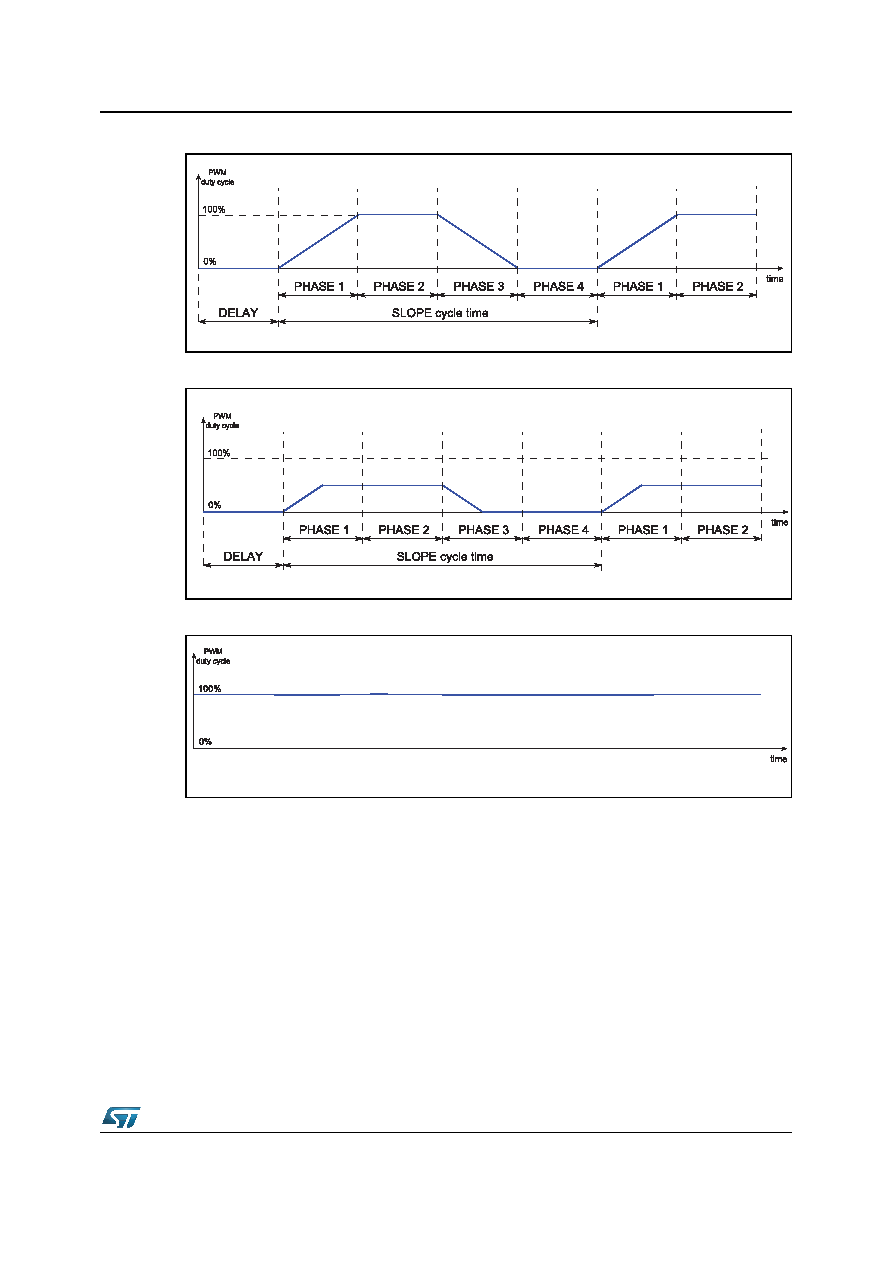

Figure 16. Light output in case of disabled PWM and enabled slope

Figure 17. Light output in case of enabled PWM and enabled slope

Figure 18. Light output in case of enabled scroll

4.9

SPI

The STLED524 is fully compatible with SPI protocol. All commands, addresses and input

data bytes are shifted inside the device, the most significant bit first. The first serial data

input (MOSI) is sampled on the first rising edge of the serial clock (SCK) after slave select

(SS) goes low. Figure 19 shows the writing of a single byte into the device.

GIPG2103141024LM

GIPG2103141026LM

GIPG2103141030LM
