May, 2018 − Rev. 6

1

Publication Order Number:

NCV7728/D

NCV7728

Hex Half-Bridge Driver

The NCV7728 is a Hex Half−Bridge Driver with protection features

designed specifically for automotive and industrial motion control

applications. The NCV7728 has independent controls and diagnostics.

The device can be operated in forward, reverse, brake, and high

impedance states. The drivers are controlled via a 16 bit SPI interface

and are daisy chain compatible.

Features

• Low Quiescent Current Sleep Mode

• High−Side and Low−Side Drivers Connected in a Half−Bridge

Configuration

• Integrated Freewheeling Protection (LS and HS)

• 0.55 A Peak Current

• RDS(on) = 1 W (typ)

• 5 MHz SPI Control

• Compliance with 5 V and 3. 3 V Systems

• Undervoltage and Overvoltage Lockout

• Discriminated Fault Reporting

• Overcurrent Protection

• Overtemperature Protection

• Under Load Detection (HS and LS)

• Daisy Chain Compatible with Multiple of 8 bit Devices

• 16−Bit Frame Detection

• NCV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

• These are Pb−Free Devices

Typical Applications

• Automotive

• Industrial

• DC Motor Management for HVAC Application

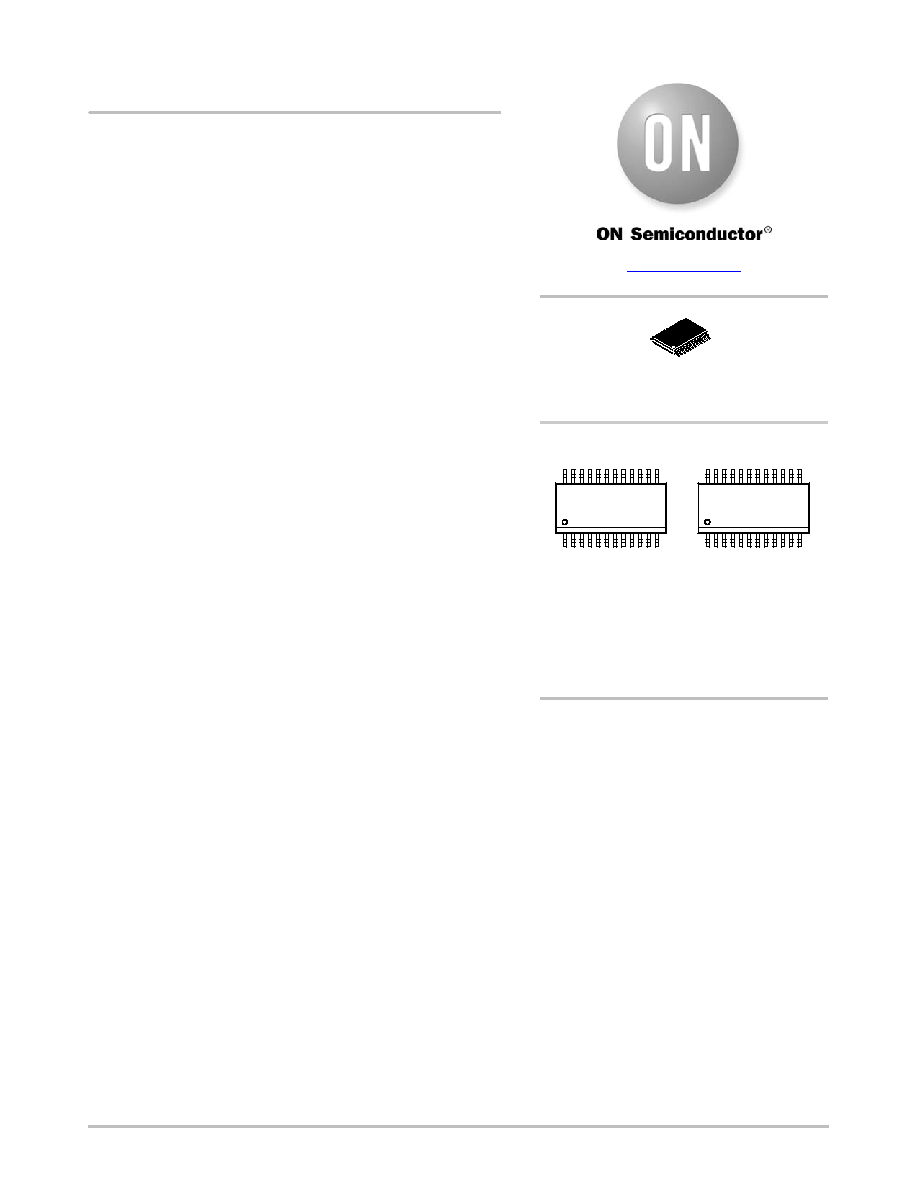

MARKING DIAGRAM

www.onsemi.com

NCV7728

AWLYWWG

NCV7728 or = Specific Device Code

NCV7728A

A

= Assembly Location

WL

= Wafer Lot

Y

= Year

WW

= Work Week

G

= Pb−Free Package

SSOP24 NB

CASE 565AL

See detailed ordering and shipping information in the package

dimensions section on page 26 of this data sheet.

ORDERING INFORMATION

NCV7728A

AWLYWWG
