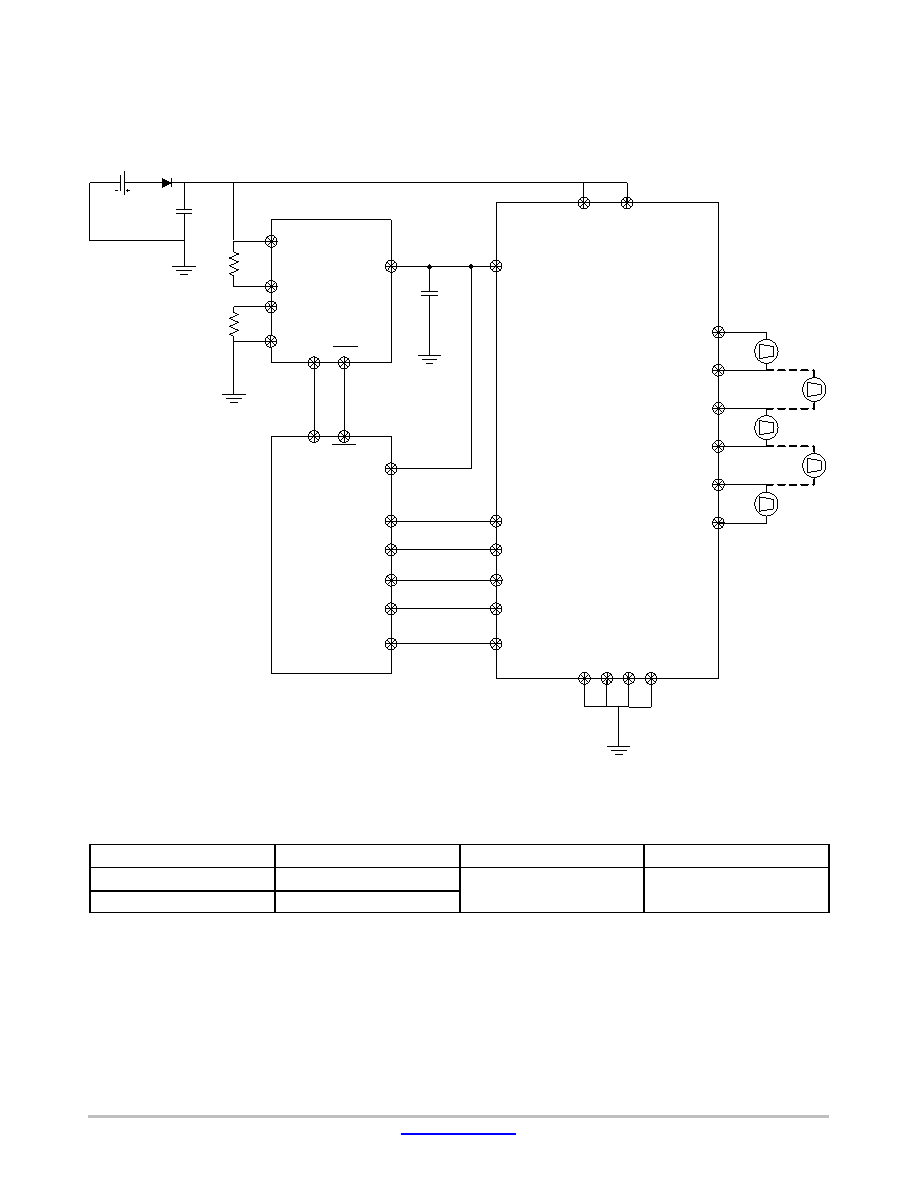

26 / 27 page ![]() NCV7728 www.onsemi.com 26 APPLICATION DIAGRAM The application drawing below demonstrates the drive capability of the NCV7728. The VS1 and VS2 pins must be tied together to avoid any potential difference in the supply voltage. NCV7728 Hex Half Bridge GND GND GND EN VCC SI SO SCLK CSB VS1 VS2 OUT1 OUT2 M1 OUT3 OUT4 M2 OUT5 OUT6 M3 uC EN MOSI MISO SCLK CSB NCV8518B DELAY WDI VOUT EN GND VCC VIN 20k 120k RESET IO RESET MRA4003T3 0.1uF 13.2V 1.0uF GND M5 M4 Figure 29. Application Drawing ORDERING INFORMATION Device Markiing Package Shipping† NCV7728DPR2G NCV7728 SSOP24 (Pb−Free) 2500 / Tape & Reel NCV7728DPAR2G NCV7728A †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. |
|
|
