LTC4373CMS8 数据表(PDF) 8 Page - Analog Devices

部件名 LTC4373CMS8
功能描述  Low Quiescent Current Ideal Diode Controller
PDF  20 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

LTC4373CMS8 数据表(HTML) 8 Page - Analog Devices

Back Button LTC4373CMS8 Datasheet HTML 4Page - Analog Devices LTC4373CMS8 Datasheet HTML 5Page - Analog Devices LTC4373CMS8 Datasheet HTML 6Page - Analog Devices LTC4373CMS8 Datasheet HTML 7Page - Analog Devices LTC4373CMS8 Datasheet HTML 8Page - Analog Devices LTC4373CMS8 Datasheet HTML 9Page - Analog Devices LTC4373CMS8 Datasheet HTML 10Page - Analog Devices LTC4373CMS8 Datasheet HTML 11Page - Analog Devices LTC4373CMS8 Datasheet HTML 12Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 8 / 20 page
background image
LTC4372/LTC4373
8
Rev. 0
For more information www.analog.com

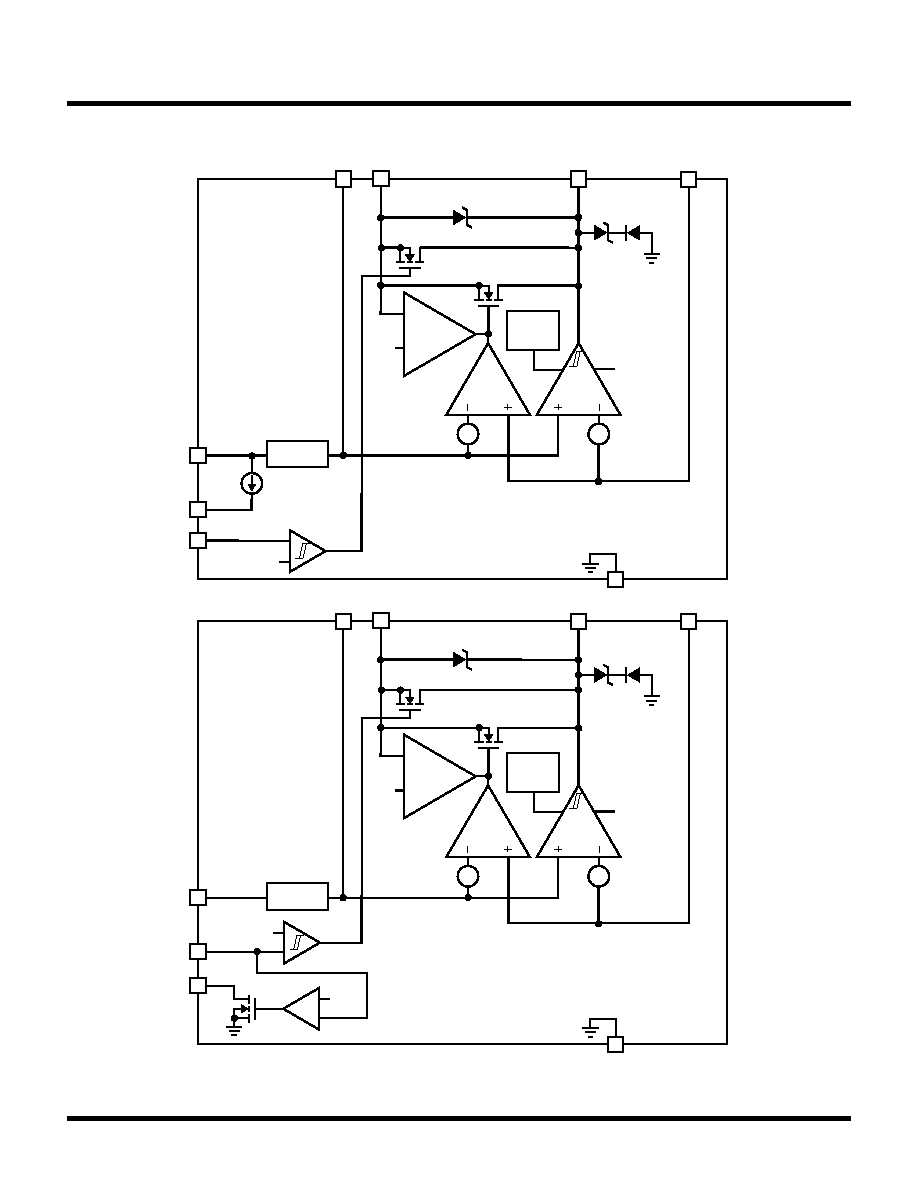

BLOCK DIAGRAM
SHDN
GND
OUT
GATE
SOURCE
IN
CHARGE
PUMP
f = 2MHz
INTVCC
2UPU
2A
32V
–1.8V
11.7V
INTVCC
REGULATOR
LTC4372
1.2V
30mV
30mV
IN
1.191V
1.191V
+
–
+
–
+–
+–
–
+
–
+
REVERSE
HYST-
ERETIC
GATE DRIVER
CURRENT
NEGATIVE
COMP
43723 BD
SHDN
COMP
UV
COMP
UVOUT
GND
OUT
GATE
SOURCE
IN
CHARGE
PUMP
f = 2MHz
INTVCC
UV
32V
–1.8V
11.7V
INTVCC
REGULATOR
LTC4373
30mV
30mV
IN
+–
+–
REVERSE
HYST-
ERETIC
GATE DRIVER
CURRENT
NEGATIVE
COMP
+
–
C1
