2.2 INGT165B TRANSMITTER PARALLEL INTERFACE

The Transmitter parallel interface is designed to support different operating modes providing a maximum

flexibility for the design of the application interface.

GigaST#R

INGT165B

TRANSMITTER

SDATA

SDATA#

PARGEN

FLAGI

RESET#

VALID

RDCLK

PDATA[35..0]

PARITY

PERR#

LOCK

SYNGEN

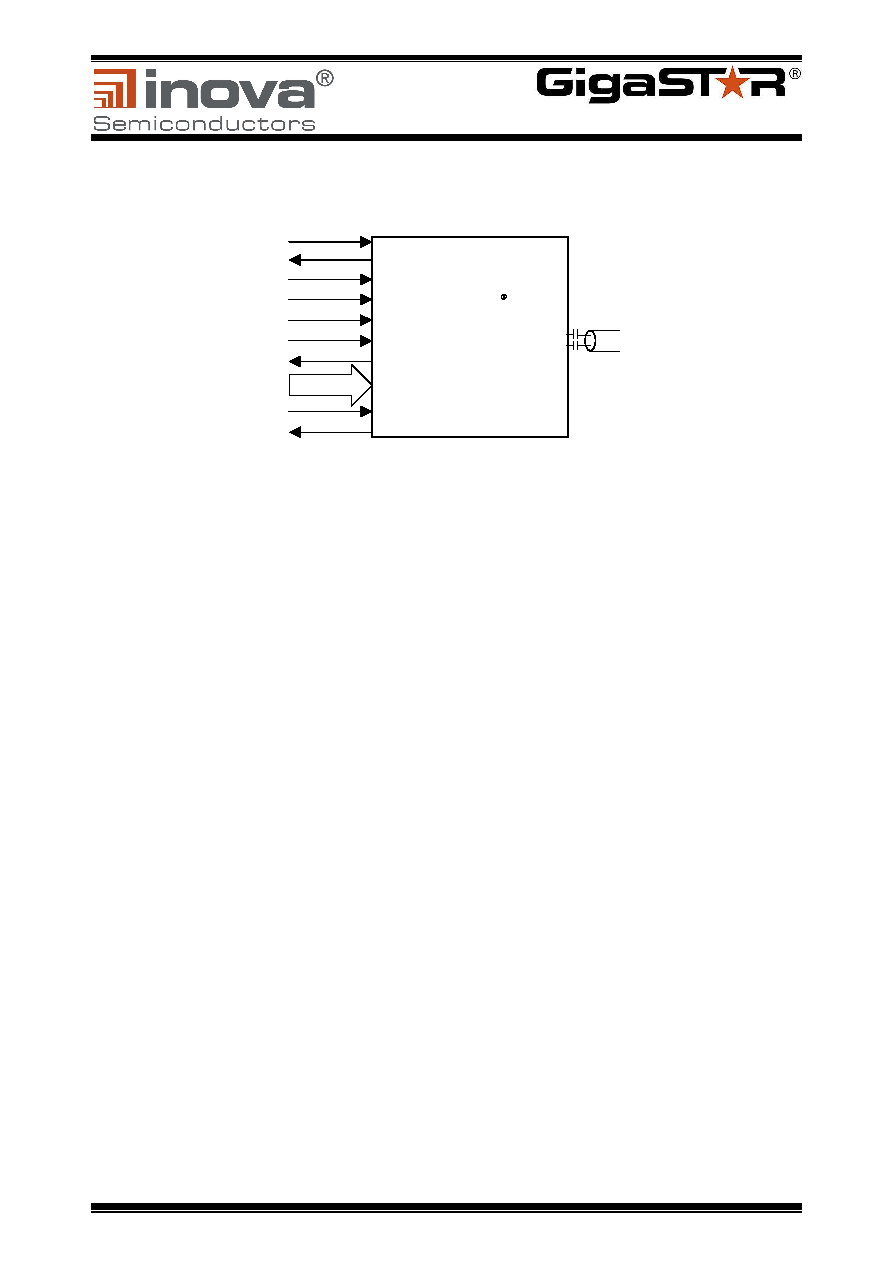

Figure 3: GigaSTaR® Transmitter Parallel Interface

2.2.1 Control Signals

RESET# is an asynchronous active low reset signal. After a power-up sequence and activation of the

reference clock, RESET# has to be kept low for at least 1 ms. The link is operational as soon as the

LSYNC# signal of the Receiver is going low.

LOCK = '1' indicates that the internal PLL is locked. If LOCK is de-asserted the Transmitter is not ready.

PARGEN = '1' activates the internal parity generation. In this mode the PARITY input pin is ignored.

An internal parity bit is generated and transmitted.

The positive edge of FLAGI sets an internal flag which is inserted at the end of the data word currently in

transmission. The Receiver decodes the flag out of the serial bit-stream and toggles the level of the

FLAGO output. This signal can be used to mark the end of a data frame.

VALID = '1' indicates to the Transmitter that data are available. With the assertion of VALID the RDCLK

starts to run. PDATA[35..0] is registered at each rising edge of RDCLK. De-asserting VALID disables

RDCLK and stuffing patterns are transmitted over the GigaSTaR® link to maintain synchronization.

PERR#: description see 2.2.2

Note: the SYNGEN input is reserved for optional functions and has to be set to “0”.

2.2.2 Data Interface

The GigaSTaR® parallel data interface is designed to support a variety of application interfaces.

It provides read clock (RDCLK) pulses with a cycle time of 30,3 ns (corresponding to 33MHz) to the

application output buffers like FIFOs, memory devices, ASICs or PLDs.

A data word at the parallel interface consists of 36 data bits. If PARGEN = '0' the transmitting application

has to supply the data's parity at the input PARITY synchronous to the parallel data. PARGEN = '1' logic

high activates internal parity generation and the PARITY input pin is ignored. If the application supplies its

own parity bit (PARGEN is de-asserted), PERR# reports any mismatch between the internally generated

and the external PARITY signal. If this is the case, the internally generated (correct) PARITY is transmitted

with the data word. PERR# is always inactive when PARGEN = '1'. The default value of PERR# after reset

is ‘1’.
