CC2550
PRELIMINARY Data Sheet (Rev.1.2)
SWRS039A
Page 50 of 54
28.1
Recommended PCB layout for package (QLP 16)

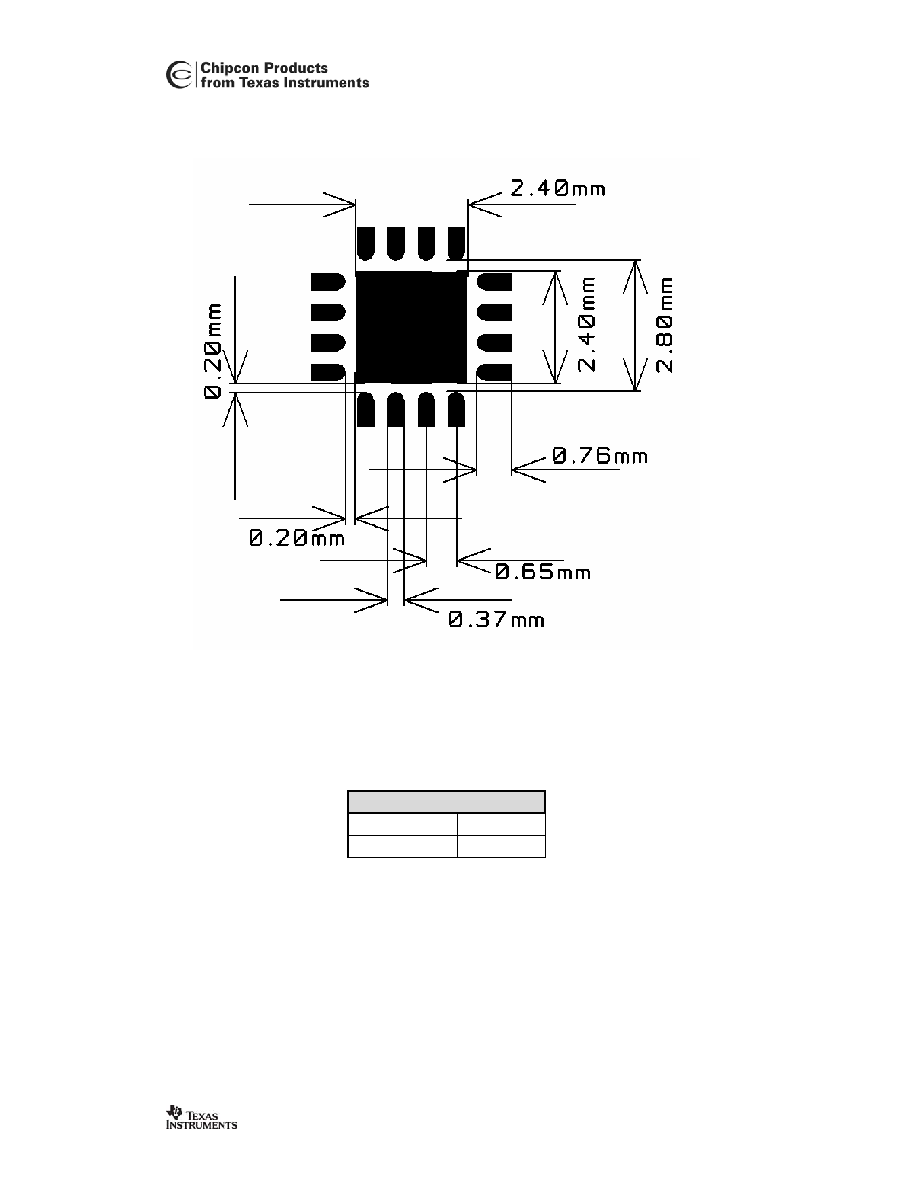

Figure 22: Recommended PCB layout for QLP 16 package
Note: The figure is an illustration only and not to scale. There are five 10 mil diameter via holes
distributed symmetrically in the ground pad under the package. See also the CC2550EM
reference design.
28.2
Package thermal properties
Thermal resistance
Air velocity [m/s]
0
Rth,j-a [K/W]
40.1
Table 28: Thermal properties of QLP 16 package
28.3
Soldering information
The recommendations for lead-free reflow in IPC/JEDEC J-STD-020C should be followed.
