CC2550

SWRS039B

Page 13 of 58

Configuration Overview

CC2550 can be configured to achieve optimum

performance for many different applications.

Configuration is done using the SPI interface.

The

following

key

parameters

can

programmed:

•

Power-down / power up mode

•

Crystal oscillator power-up / power – down

•

Transmit mode

•

RF channel selection

•

Data rate

•

Modulation format

•

RF output power

•

Data buffering with 64-byte transmit FIFO

•

Packet radio hardware support

•

Forward Error Correction (FEC) with

interleaving

•

Data Whitening

Details of each configuration register can be

found in Section 28, starting on page 37.

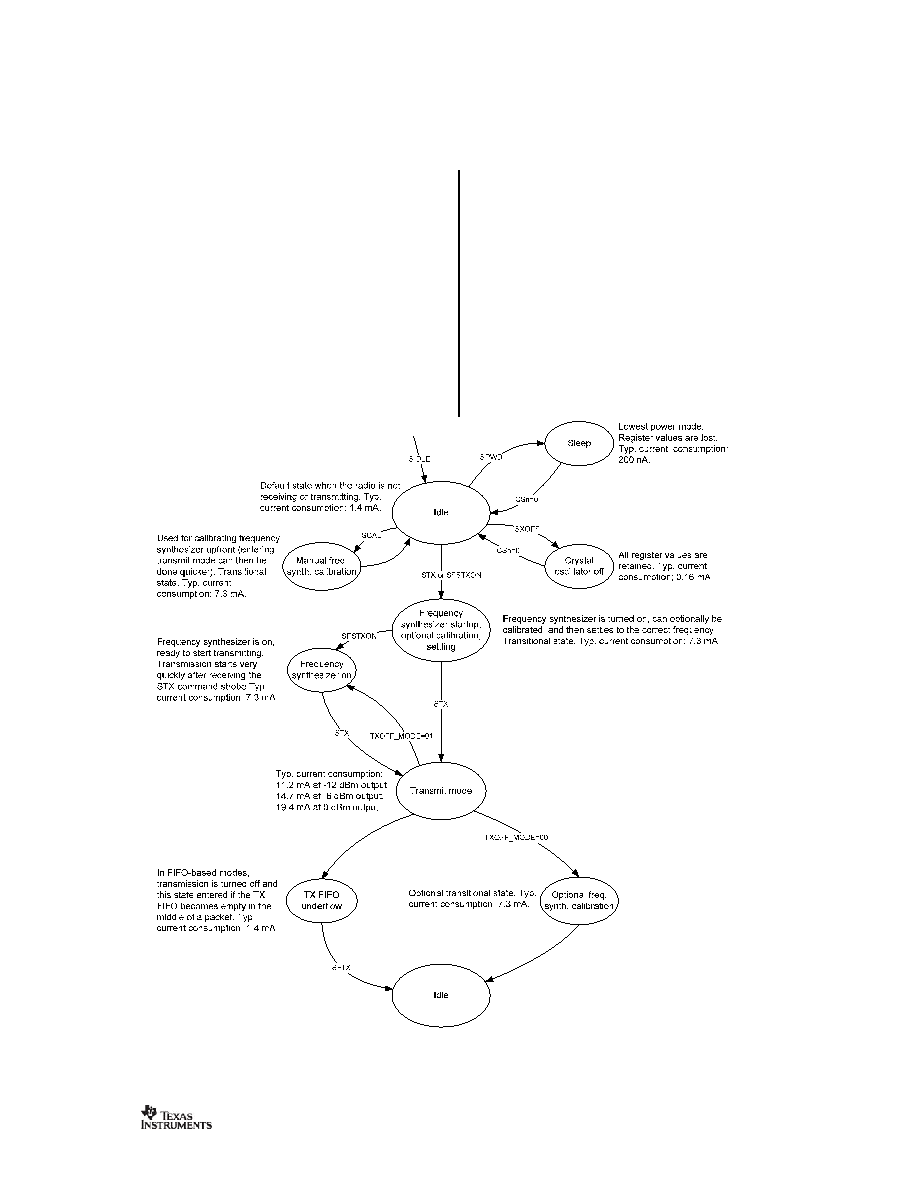

Figure 4 shows a simplified state diagram that

explains the main

CC2550 states, together with

typical usage and current consumption. For

detailed information on controlling the

CC2550

state machine, and a complete state diagram,

see Section 16, starting on page 25.

Figure 4: Simplified State Diagram with Typical Current Consumption
