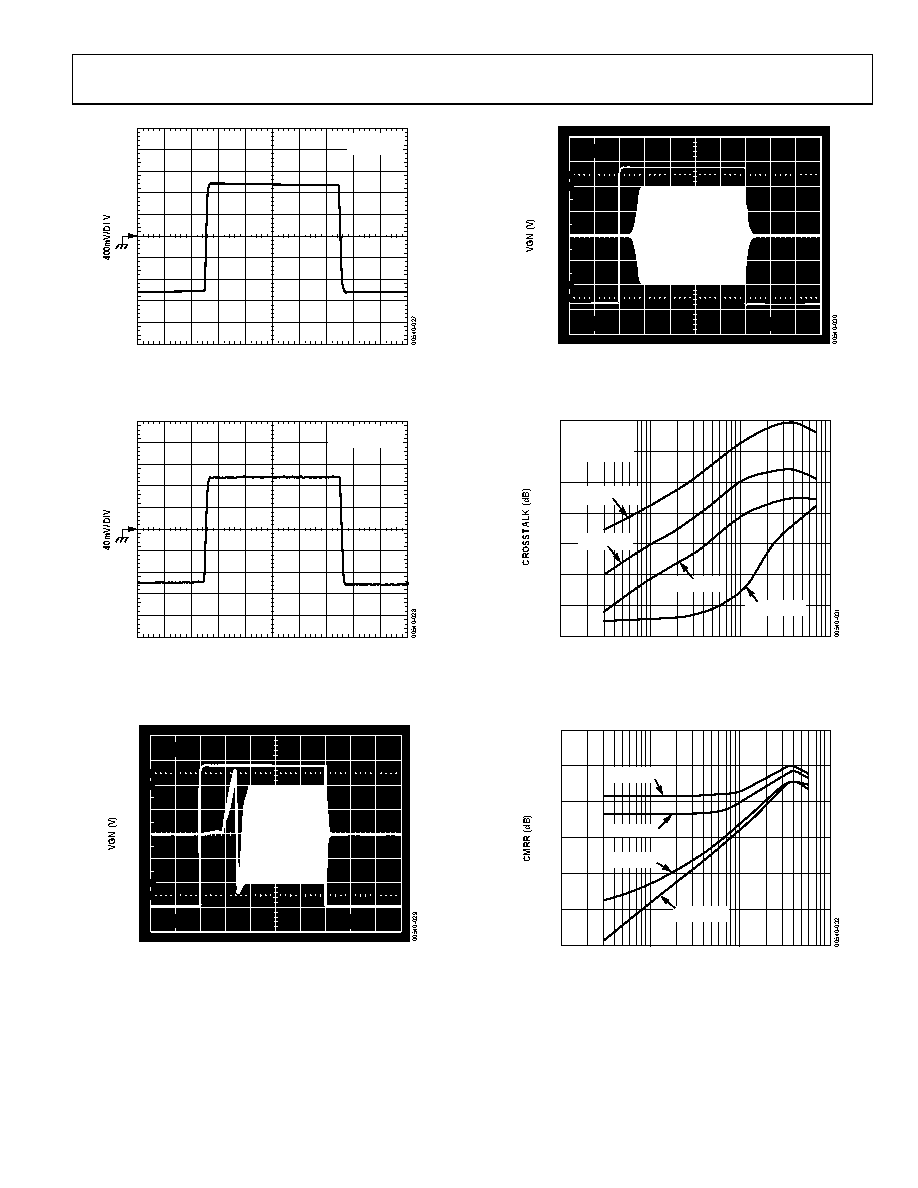

AD604
Rev. D | Page 11 of 32
100ns/DIV
2V
–2V
253ns
1.253µs
VO =2Vp-p
VGN = 1.5V
Figure 27. Large Signal Pulse Response
100ns/DIV
200
–200
253ns
1.253µs
VO =200mV p-p
VGN = 1.5V
TRIG'D
Figure 28. Small Signal Pulse Response
10
0%
100
90
2.9V
0V
200ns
500mV
500mV
Figure 29. Power-Up/Power-Down Response
10
0%
100
90
2.9V
0.1V
100ns
500mV
500mV
Figure 30. Gain Response
FREQUENCY (Hz)
–30
–10
–20
–40
–50
–60
0
–70
100k
1M
10M
100M
VGN2 = 0.1V
VGN2 = 1.5V
VGN2 = 2V
VGN2 = 2.9V
VGN1 = 1V
VOUT1 =1V p-p
VIN2 = GND
Figure 31. Crosstalk (Channel 1 to Channel 2) vs. Frequency
FREQUENCY (Hz)
–50
–10
–20
–30
–40
–60
0
100k
1M
10M
100M
VGN = 2.9V
VGN = 2.5V
VGN = 2V
VGN = 0.1V
Figure 32. DSX Common-Mode Rejection Ratio vs. Frequency
