EM62100
65 COM/132 SEG STN LCD Driver
14 •
•••
Product Specification (V1.1) 09.13.2005
(This specification is subject to change without further notice)
6.3 Busy Flag
The busy flag is output to pin D7 by a read status command. When the busy flag is “1”
it indicates that the EM62100 chip is executing its internal operations, any command
other than status read is ignored during this time. If the cycle time (tCYC) is correct, this
flag need not be checked before each instruction. This makes vast improvements in
MPU processing capabilities possible.
6.4 Display Data RAM
The display data RAM stores the pixel data for the LCD. It is a 65
×132 addressable
array. It allows access to the desired bit by specifying the page address and the
column address. The 65 rows are divided into 8 pages of 8 lines and the 9th page with
a single line (D0). The D7 to D0 display data from the MPU corresponds to the LCD
common lines as show in Fig.4. There are few constraints at the time of display data
transfer when multiple EM62100 chip is used. However, the display structures can be
created easily and with a high degree of freedom. Reading from and writing to the
display RAM from the MPU side is performed through the I/O buffer, which is an
independent operation from signal reading for the liquid crystal driver. Consequently,
even if the display data RAM is accessed asynchronously, it will not cause adverse
effects on the display (such as flickering).
0
0
0
0
1
1
1
1
1
1
1
1
1
0 0 0
0
0
0
0
0
0
0 0 0
D0
D1
D2
D3
D4
COM0
COM1
COM2
COM3
COM4

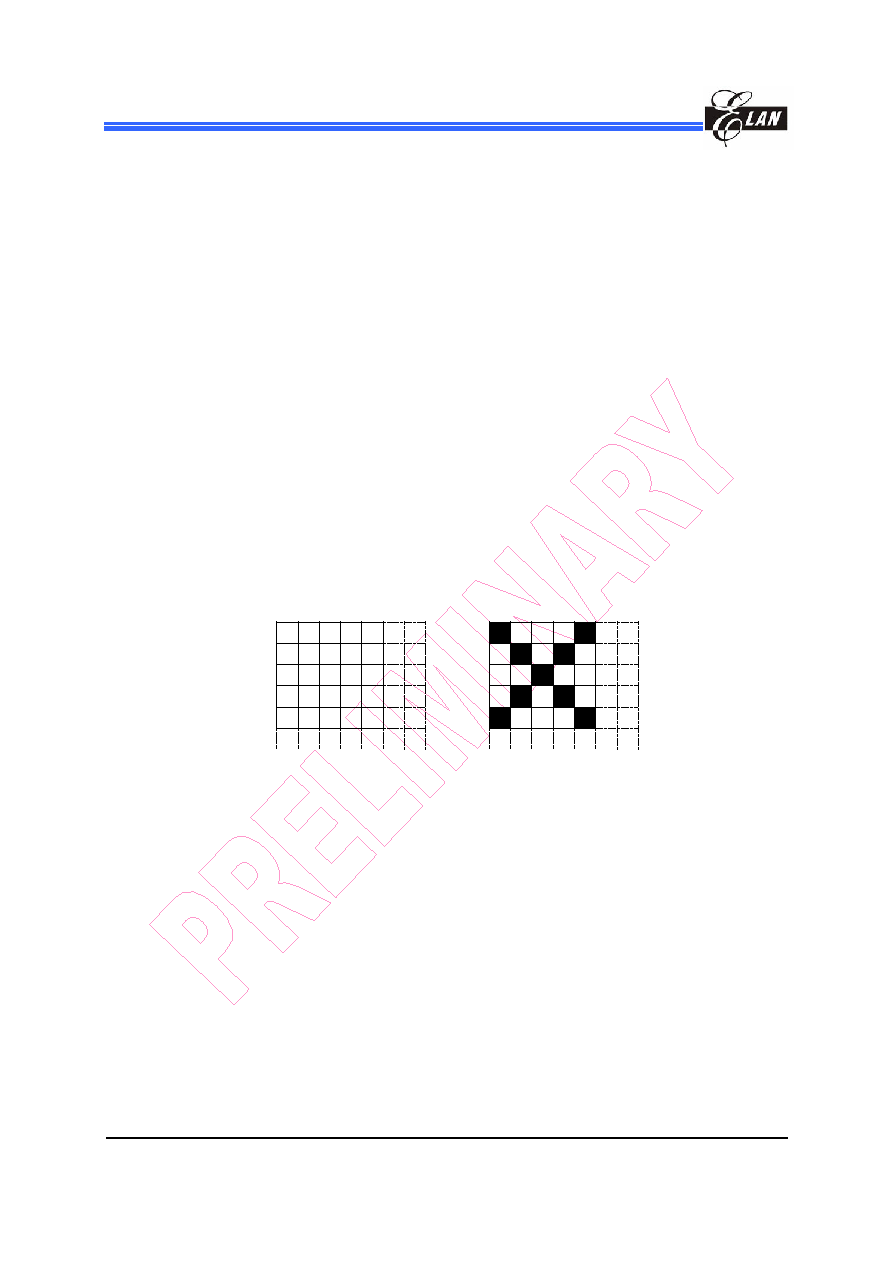

Display Data RAM
Liquid Crystal Display
Fig. 4
6.5 Page Address Circuit
The page address of the display data RAM is specified through the Page Address Set
Command. The page address needs to be specified again in accessing other pages.
Page address 8 is the page for the RAM region used only by the static indicators, and
only display data D0 is used.
