EM62100
65 COM/132 SEG STN LCD Driver
Product Specification (V1.1) 09.13.2005
•••• 3
(This specification is subject to change without further notice)
100 um
40
40
20
40
40
20
100 um

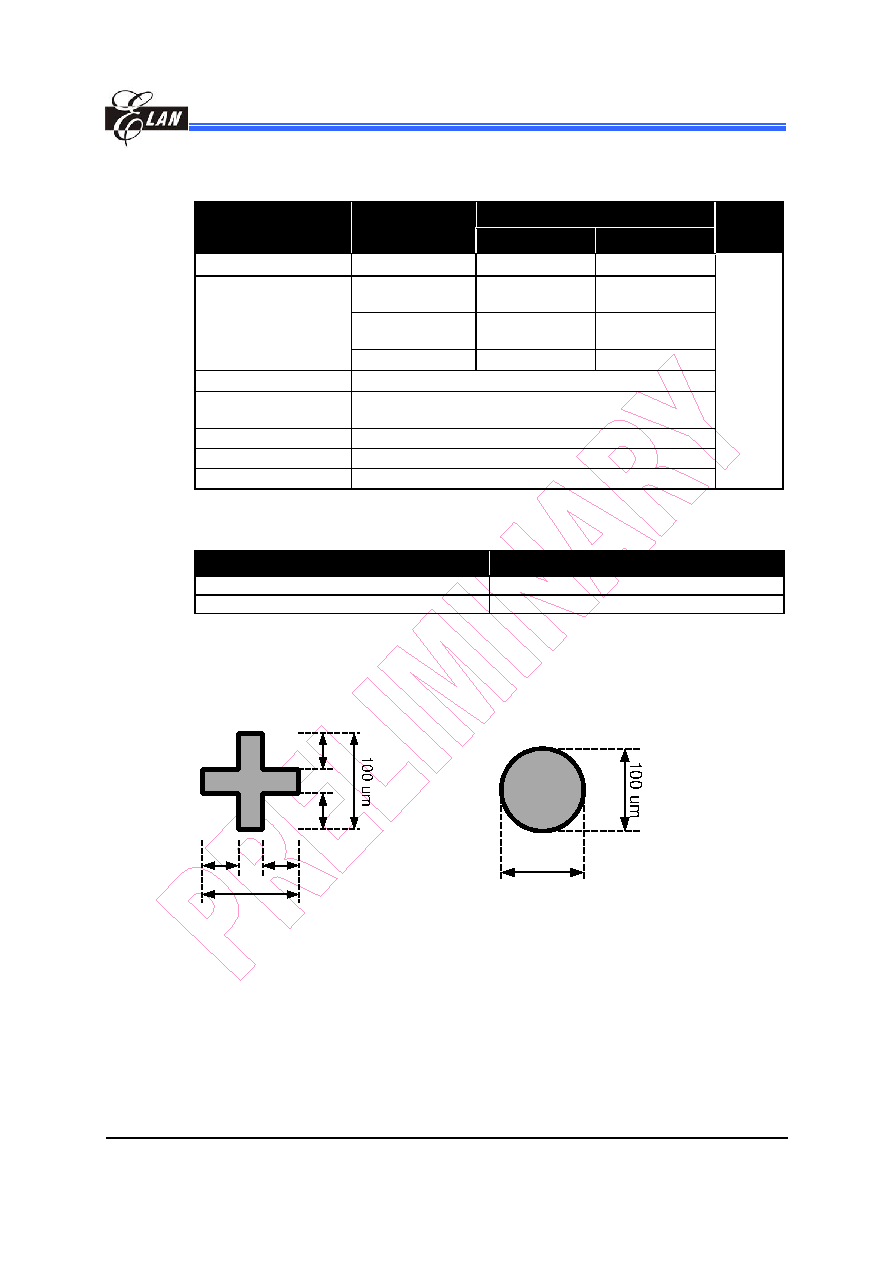

3.1 PIN DIMENSIONS
Size
Item
Pad No.
X
Y
Unit
Chip size
-
8200
1000
1 ~ 62 , 79~122 ,
140 ~ 295
35
80
123 ~ 139 , 296 ~
312
80
35
Bump Size
63 ~78
50
58
Pad Pitch
50 (min.)
m
Die thickness
(excluding bumps)
20 ±1 mil ( 525 ± 25 m)
Bump Height
17 ± 2
Minimum Bump Gap
15
Coordinate Origin
Chip center
3.2 MARK DIMENSIONS
Mark
Coordinate (X, Y)
Left
-3763.05 ,125.15
Right
3748.5 ,125.1
3.3 Alignment Key
