EM62100
65 COM/132 SEG STN LCD Driver
50 •
•••
Product Specification (V1.1) 09.13.2005
(This specification is subject to change without further notice)

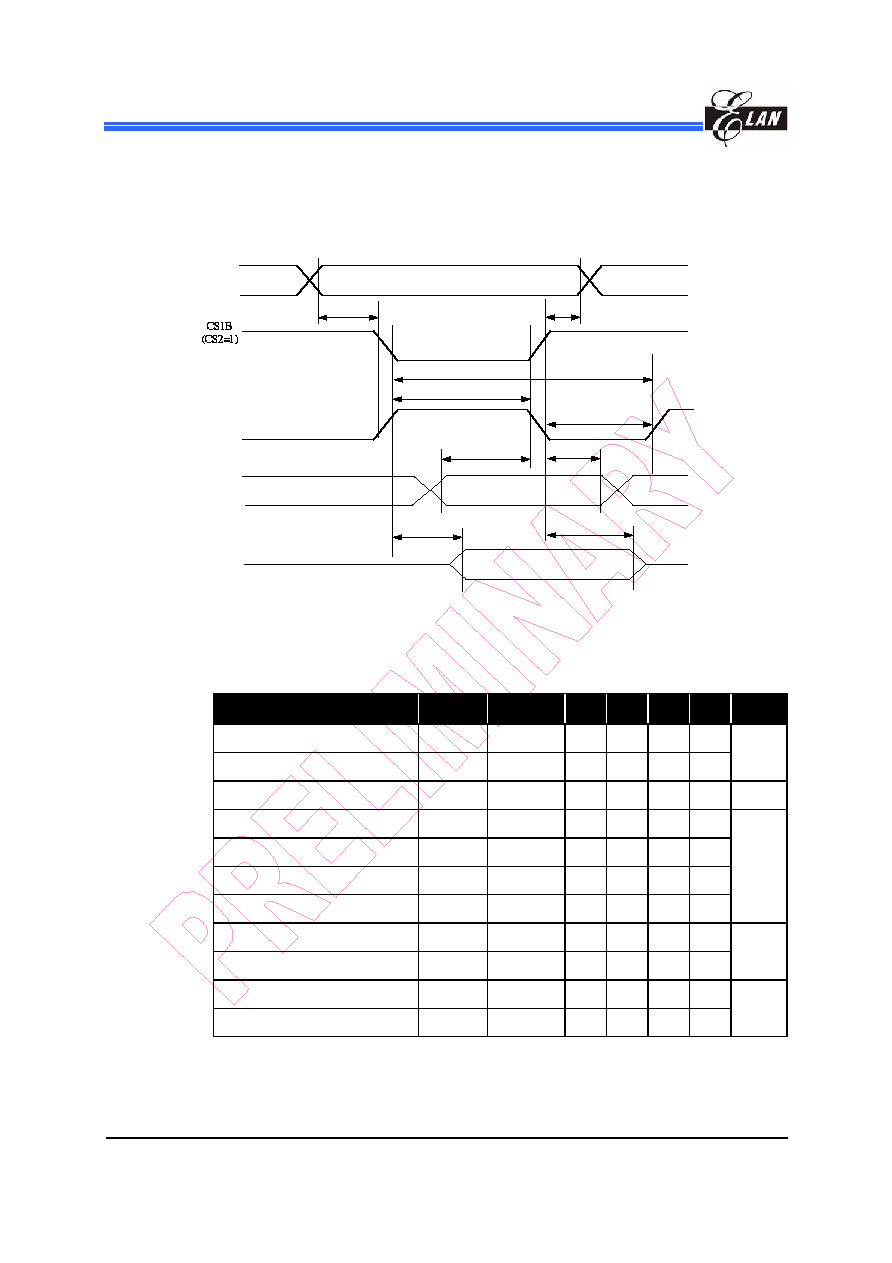

10.2 System Bus Read/Write Characteristics
(6800-Series Microprocessor)
tACC68
tOD68
D0-D7
(Read)
tAS68
tAH68
tELW68, tELR68
tDS68
tCYC68
tEHW68, tEHR68
tDH68
RS,
RW
E
D0-D7
(Write)
VDD = 2.7 ~ 3.6V, Ta = -40~+85°C
Item
Symbol
Condition Min. Typ. Max. Unit Pin Used
Address Hold Time
tAH68
0
ns
Address Setup Time
tAS68
0
ns
RS, RW
System Cycle Time (Write)
tCYC68
240
ns
Enable pulse “H” Width (Write)
tEHW68
120
ns
Enable Pulse “H” Width (Read)
tEHR68
120
ns
Enable Pulse “L” Width (Write)
tELW68
100
ns
Enable Pulse “L” Width (Read)
tELR68
100
ns
E
Data Setup Time
tDS68
40
ns
Data Hold Time
tDH68
10
ns
D0~D15
RDB Access Time
tACC68 CL = 100 pF
140
ns
Output Disable Time
tOD68
5
50
ns
D0-D7
