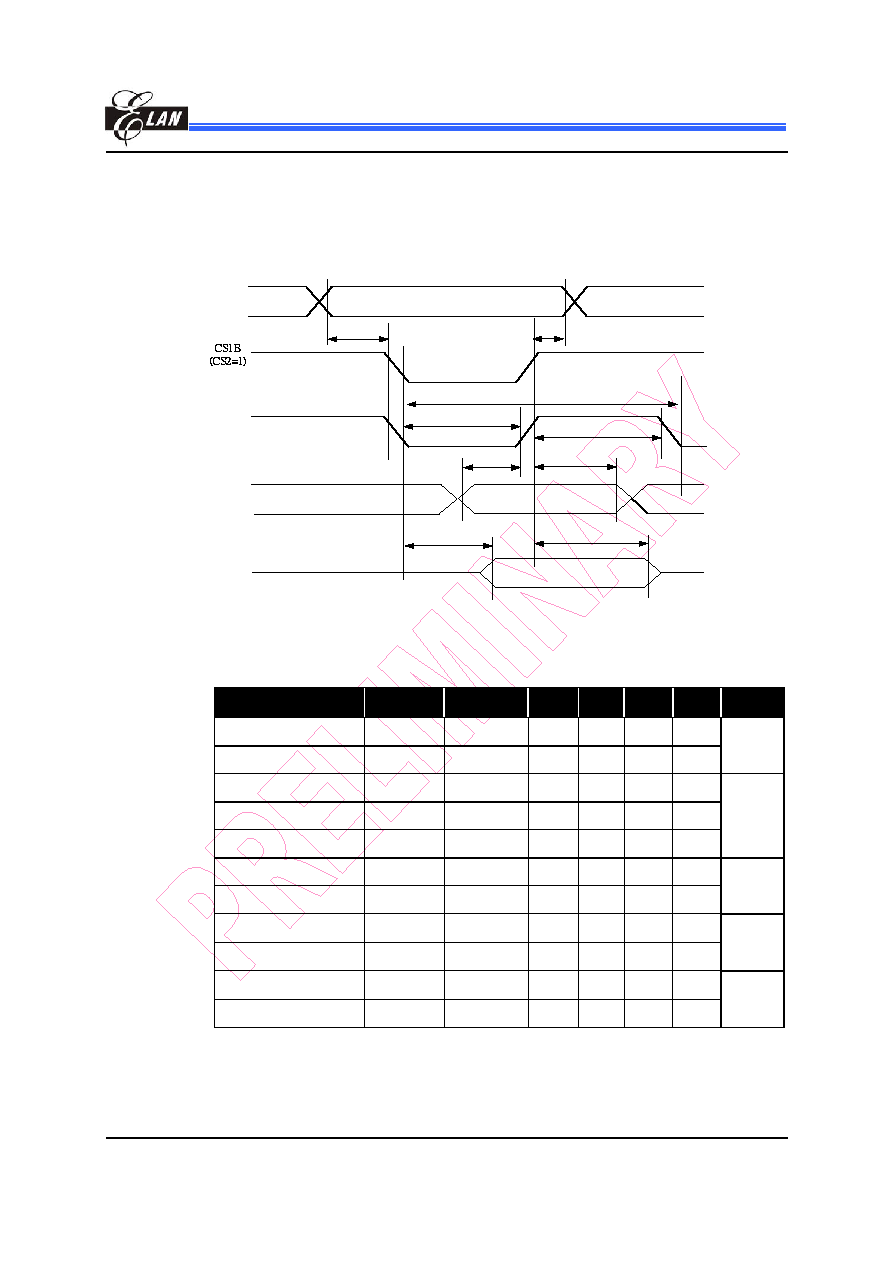

55 / 60 page  EM62100 65 COM/132 SEG STN LCD Driver Product Specification (V1.1) 09.13.2005 •••• 49 (This specification is subject to change without further notice) 10 Timing Diagram 10.1 System Bus Read/Write Characteristics (8080-Series Microprocessor) tACC8 tOD8 D0-D7 (Read) tAS8 tAH8 tWRHW8, tRDLW8 tDS8 tCYC8 tWRLW8, tRDLW8 tDH8 RS WRB, RDB D0-D7 (Write) (VDD = 2.7 ~ 3.6V, Ta = -40~+85°C) Item Symbol Condition Min. Typ. Max. Unit Pin Used Address Hold time tAH8 0 ns Address Setup Time tAS8 0 ns RS System Cycle Time tCYC8 240 ns Write Pulse “L” Width tWRLW8 120 ns Write Pulse “H” Width tWRHW8 100 ns WRB (RW) Data Setup Time tDS8 40 ns Data Hold Time tDH8 10 ns D0-D7 Read Pulse “L” Width tRDLW8 120 ns Read Pulse “H” Width tRDHW8 100 ns RDB (E) RDB Access Time tACC8 CL = 100 pF 140 ns Output Disable Time tOD8 5 50 ns D0-D7 |
|
