EM62100
65 COM/132 SEG STN LCD Driver
Product Specification (V1.1) 09.13.2005
•••• 53
(This specification is subject to change without further notice)
10.6 Application Circuit
The MPU Interface (Reference Example)
The EM62100 can be connected to either 80-Series MPU or 68-Series MPU. Using the
serial interface makes it possible to operate the EM62100 series chips with fewer signal
lines. The display area can be enlarged by integrating several EM62100 Series chips,
after which, the chip select signal can be used to select the individual ICs to access.

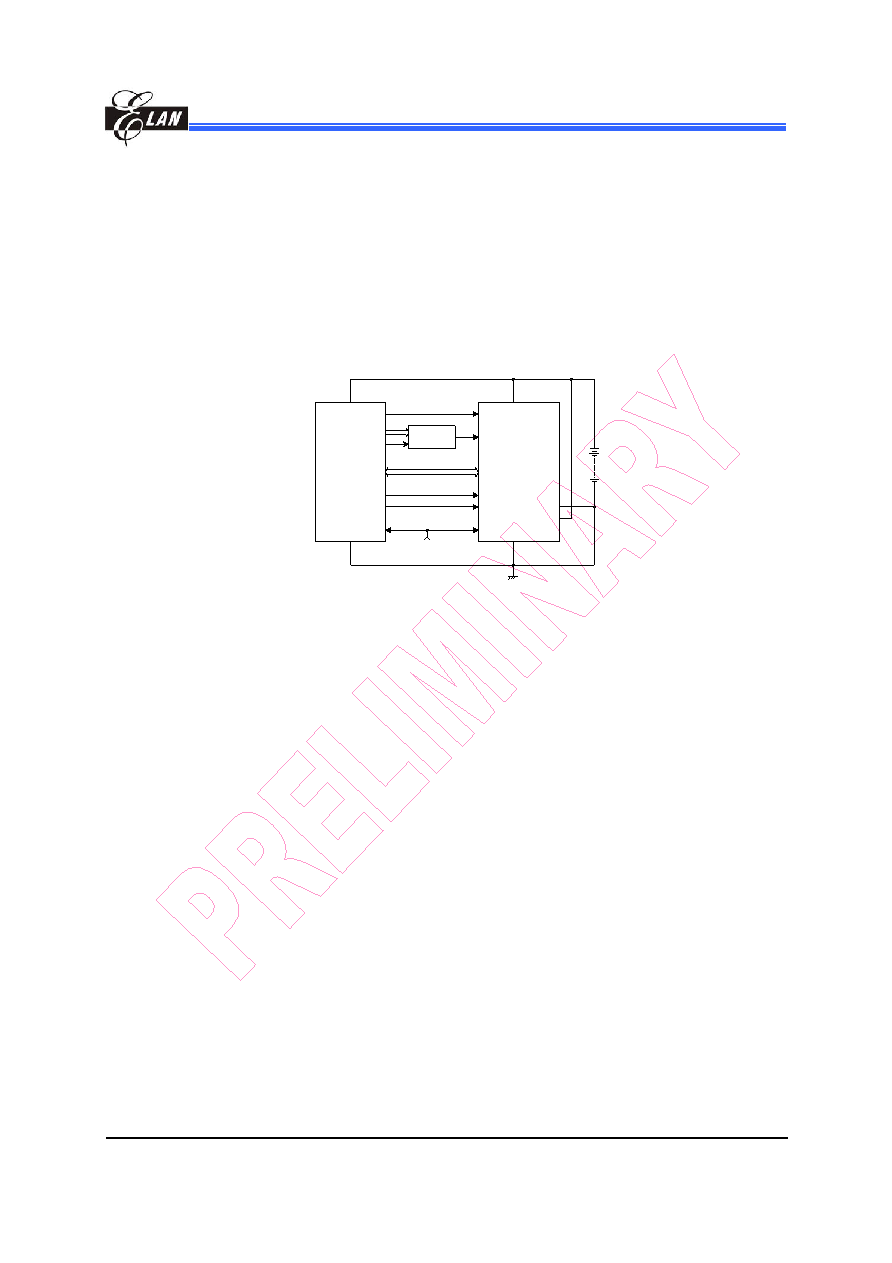

10.6.1 8080-Series MPU
Decoder
DD
V
D0-D7
RDB
WRB
GND
RDB
RESB
D0-D7
MPU
/IORQ
A1-A7
VCC RS
CS1B,CS2
RS VCC
RESB
EM62100
M86
P/S
/Reset
WRB
Fig. 12
