Data Sheet

ADP1850

Rev. C | Page 13 of 32

MODES OF OPERATION

The SYNC pin is a multifunctional pin. PWM mode is enabled

when SYNC is connected to VCCO or a high logic. With SYNC

connected to ground or left floating, the pulse skip mode is

enabled. Switching SYNC from low to high or high to low on

the fly causes the controller to transition from forced PWM

to pulse skip mode or pulse skip mode to forced PWM, respec-

tively, in two clock cycles.

Table 5. Mode of Operation Truth Table

SYNC Pin

Mode of Operation

Low

Pulse skip mode

High

Forced PWM or two-phase operation

No Connect

Pulse skip mode

Clock Signal

Forced PWM or two-phase operation

The ADP1850 has a pulse skip sensing circuitry that allows the

controller to skip PWM pulses, thus, reducing the switching

frequency at light loads and, therefore, maintaining high

efficiency during a light load operation. The switching

frequency is a fraction of the natural oscillator frequency and

is automatically adjusted to regulate the output voltage. The

resulting output ripple is larger than that of the fixed frequency

forced PWM. Figure 24 shows that the ADP1850 operates in

PSM under a very light load. Pulse skip frequency under light

load is dependent on the inductor, output capacitance, output

load, and input and output voltages.

CH3 20mV

CH2 200mV

CH1 10V

CH4 2A

Ω

M200µs

A CH1

7.8V

SW1

COMP1 (CH2)

VOUT RIPPLE

INDUCTOR

CURRENT

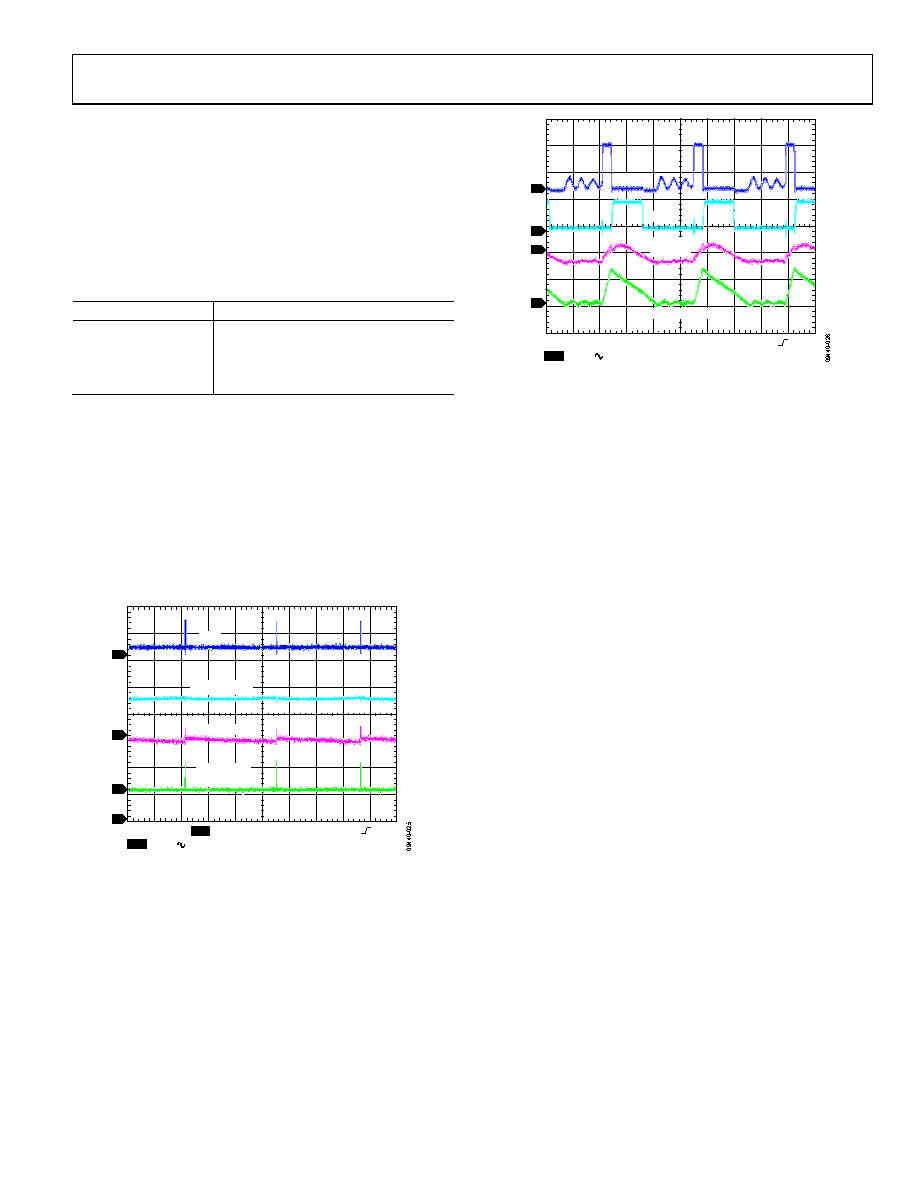

Figure 24. Example of Pulse Skip Mode Under Light Load

When the output load is greater than the pulse skip threshold

current, that is, VCOMP reaches the threshold of 0.9 V, the

ADP1850 exits the pulse skip mode of operation and enters

the fixed frequency discontinuous conduction mode (DCM),

as shown in Figure 25. When the load increases further, the

ADP1850 enters CCM.

CH3 20mV

CH2 5V

CH1 10V

CH4 2A

Ω

M1µs

A CH1

13.4V

DH1

DL1

OUTPUT

RIPPLE

INDUCTOR CURRENT

Figure 25. Example of Discontinuous Conduction Mode (DCM) Waveform

In forced PWM, the ADP1850 always operates in CCM at any

load. The inductor current is always continuous, thus, efficiency

is poor at light loads.

SYNCHRONIZATION

The switching frequency of the ADP1850 can be synchronized

to an external clock by connecting SYNC to a clock signal. The

external clock should be between 1× and 2.3× of the internal

oscillator frequency, fSW. The resulting switching frequency is ½

of the external SYNC frequency because the SYNC input is

divided by 2, and the resulting phases are used to clock the two

channels alternately. In synchronization, the ADP1850 operates

in PWM.

When an external clock is detected at the first SYNC edge, the

internal oscillator is reset, and the clock control shifts to SYNC.

The SYNC edges then trigger subsequent clocking of the PWM

outputs. The DH1/DH2 rising edges appear approximately 100 ns

after the corresponding SYNC edge, and the frequency is locked

to the external signal. Depending on the start-up conditions of

Channel 1 and Channel 2, either Channel 1 or Channel 2 can be

the first channel synchronized to the rising edge of the SYNC

clock. If the external SYNC signal disappears during operation,

the ADP1850 reverts to its internal oscillator. When the SYNC

function is used, it is recommended to connect a pull-up resistor

from SYNC to VCCO so that when the SYNC signal is lost, the

ADP1850 continues to operate in PWM.
