Application Example

The following sections illustrate possible applications of the FT60x. The illustrations have omitted pin

numbers for ease of understanding since the pins differ between the FT600Q and FT601Q package

options.

7.1

FT600/FT601 Connect to FIFO Master Interface

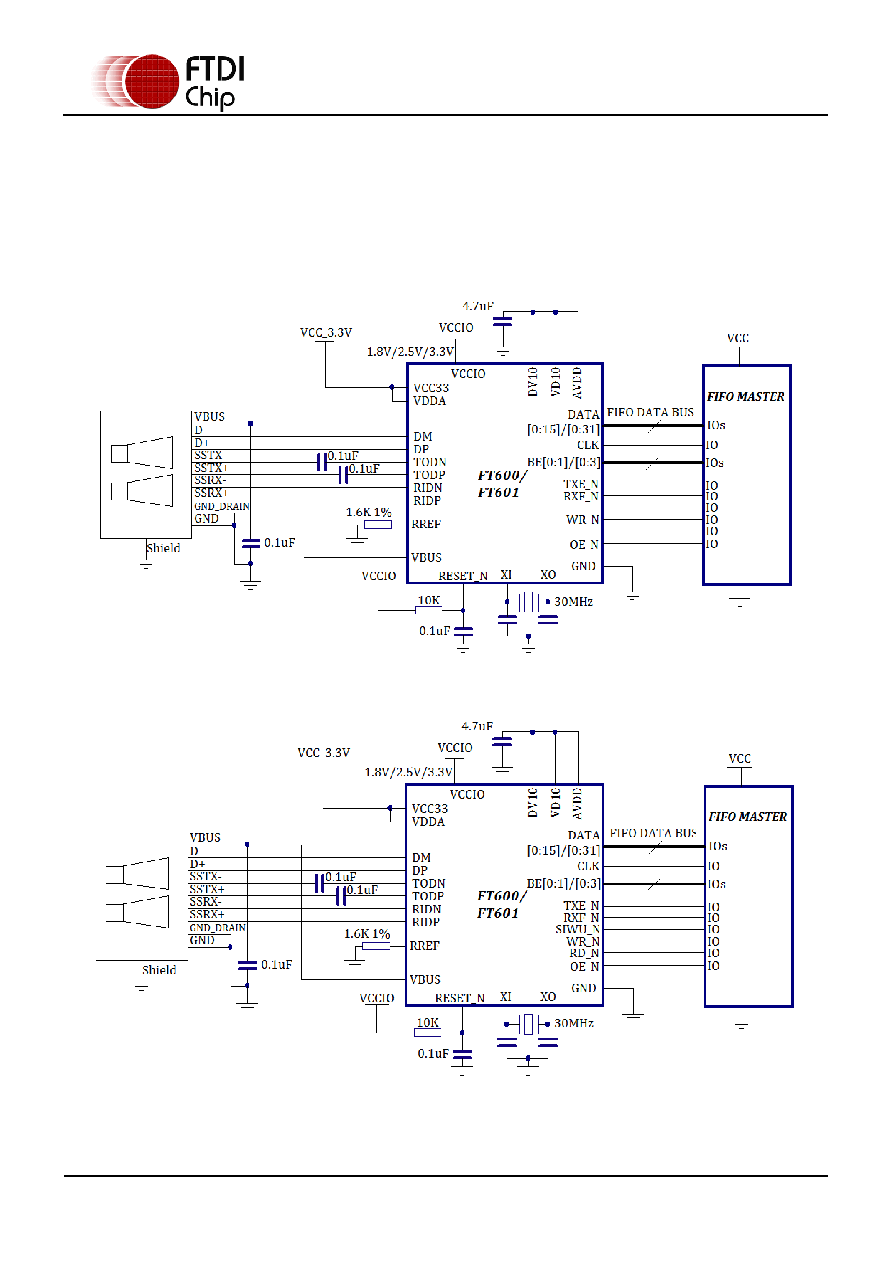

Figure 7.1 FT600/FT601 Connect to FIFO Master Interface (Multi-Channel FIFO Mode)

Figure 7.2 FT600/FT601 Connect to FIFO Master Interface (245 Synchronous FIFO Mode)

A typical example of using the FT600/FT601 as a USB3.0 to FIFO Master Interface is illustrated in Figure

7.1. and Figure 7.2
