FT600Q-FT601Q IC DatasheetDatasheet

Version 1.04

Document No.: FT_001118

Clearance No.: FTDI#424

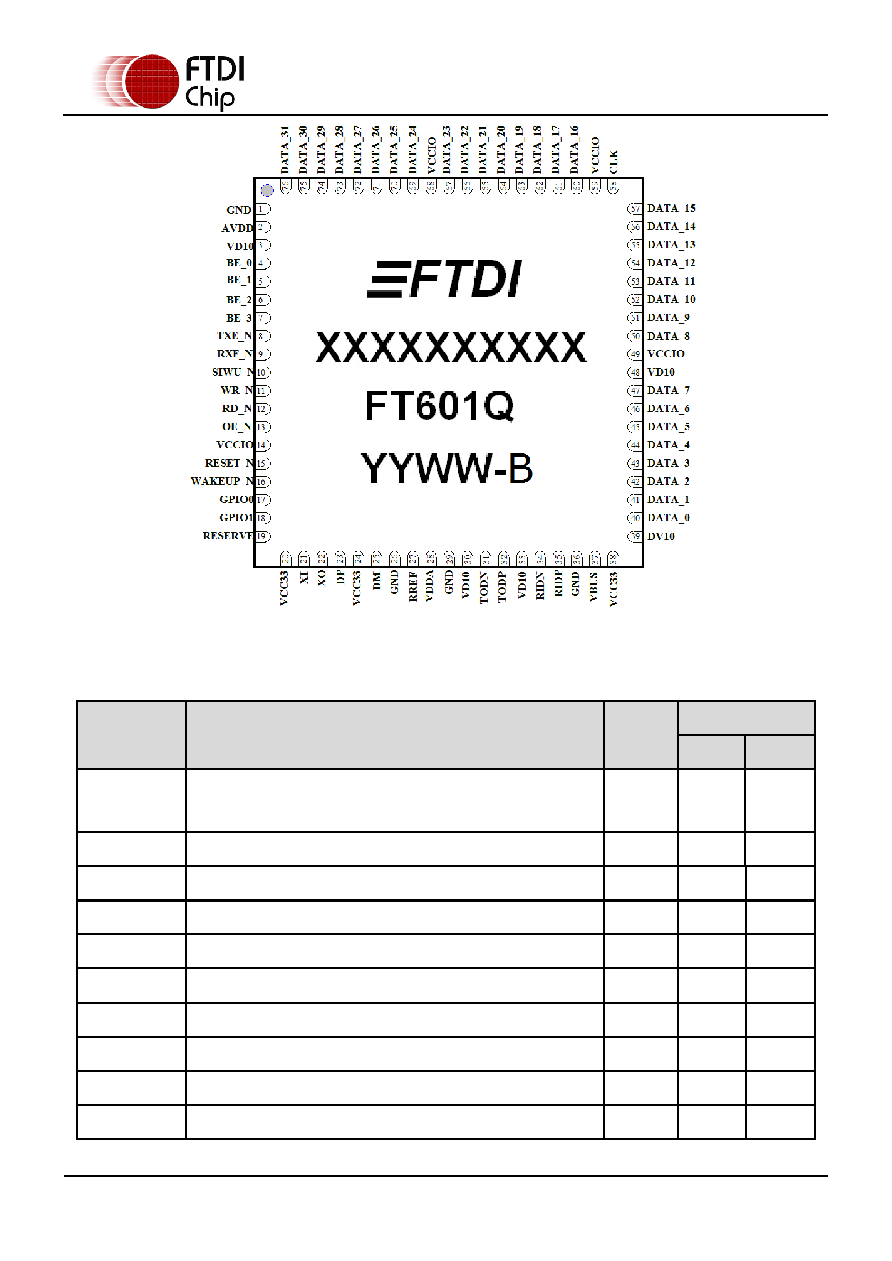

Figure 3.2 QFN76 Package Pin Out

3.2

Device Pin Out Signal Description

Pin Name

Description

Type

Pin No.

QFN76

QFN56

CLK

Parallel FIFO bus clock output pin to FIFO bus master, the

Frequency can be configured as 66Mhz or 100Mhz for both FIFO

bus modes.

DATA_0

Parallel FIFO bus data I/O bit 0.

I/O

DATA_1

Parallel FIFO bus data I/O bit 1.

I/O

DATA_2

Parallel FIFO bus data I/O bit 2.

I/O

DATA_3

Parallel FIFO bus data I/O bit 3.

I/O

DATA_4

Parallel FIFO bus data I/O bit 4.

I/O

DATA_5

Parallel FIFO bus data I/O bit 5.

I/O

DATA_6

Parallel FIFO bus data I/O bit 6.

I/O

DATA_7

Parallel FIFO bus data I/O bit 7.

I/O

DATA_8

Parallel FIFO bus data I/O bit 8.

I/O
