Package Parameters

The FT60x is available in two different packages based on the FIFO bus interface. The FT600Q is the QFN-

56 package 16-bit FIFO bus interface and the FT601Q is the QFN-76 package 32-bit FIFO interface.

8.1

QFN-56 Package Mechanical Dimensions

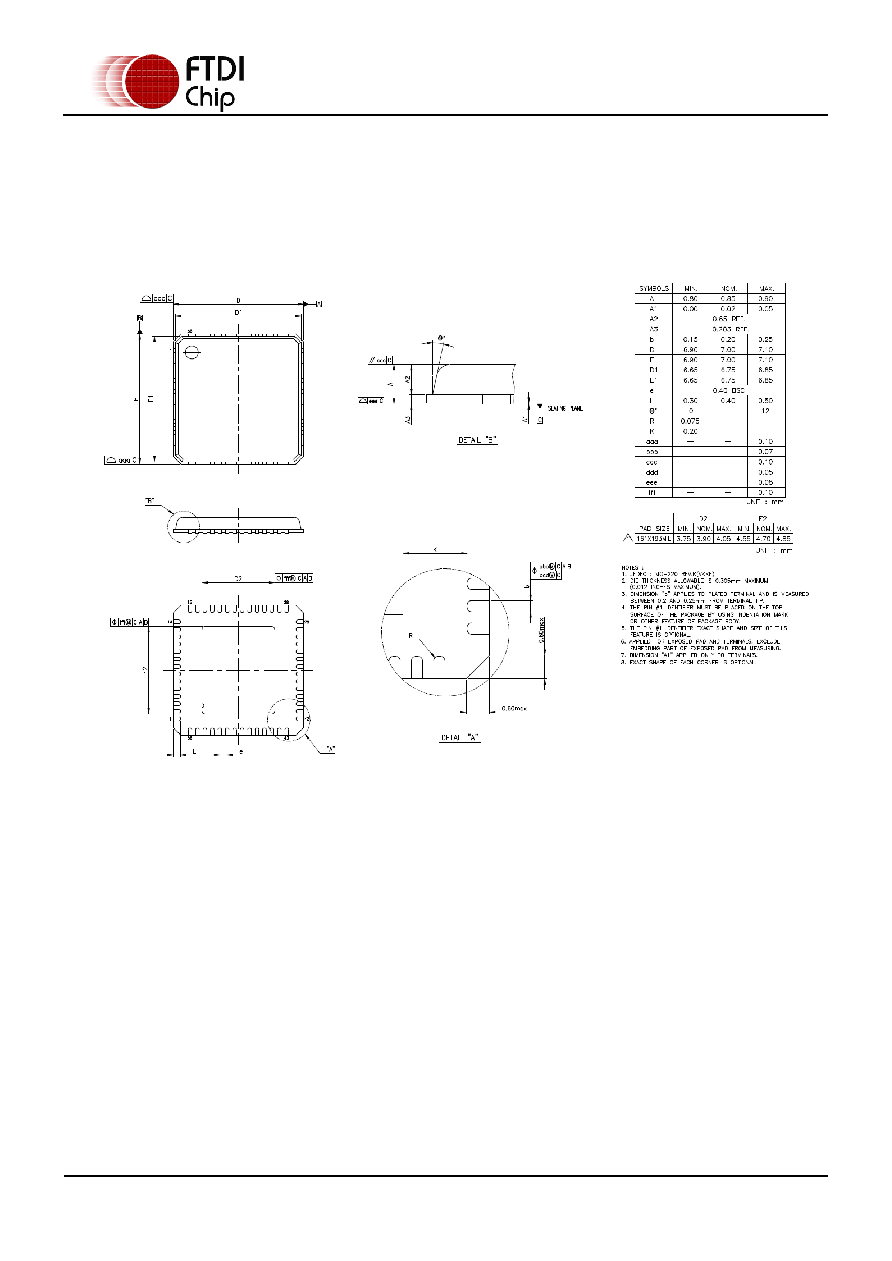

Figure 8.1 QFN-56 Package Dimensions

The FT600Q is supplied in a RoHS compliant 56 pin QFN package. The package is lead (Pb) free and uses

a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.

This package is nominally 7.0mm x 7.0 mm body and the pins are on a 0.4 mm pitch. The above

mechanical drawing shows the QFN-56 package. All dimensions are in millimetres. The centre pad on the

base of the FT600Q is internally connected to GND; the PCB should connect to ground and not have

signal tracking on the same layer as the chip in this area.
