FT121 ENHANCED USB DEVICE CONTROLLER WITH SPI SLAVE IC
Datasheet Version 1.2
Clearance No.: FTDI#
312

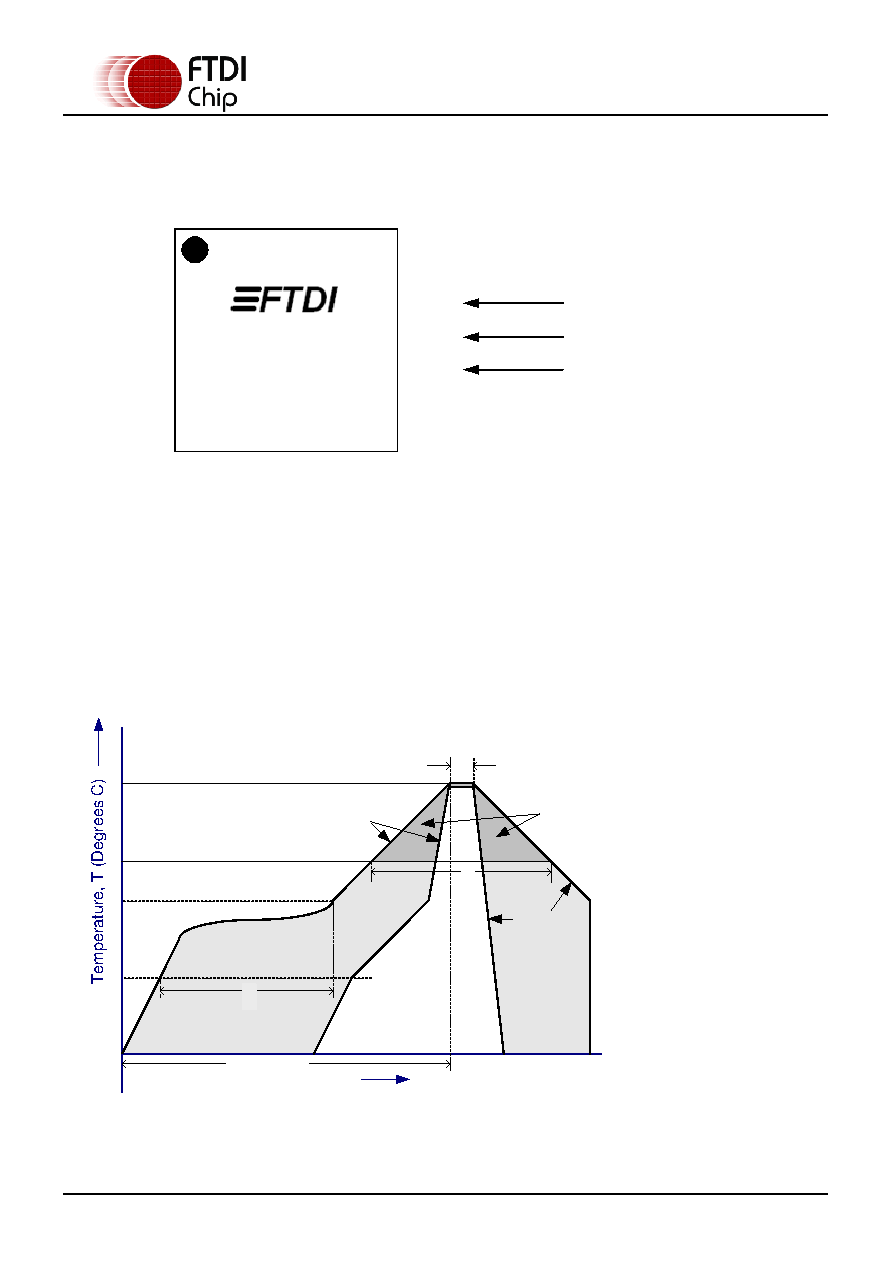

9.4 QFN-16 Package Markings
Figure 9-4 QFN-16 Package Markings
The date code format is YYWW where WW = 2 digit week number, YY = 2 digit year number.
9.5 Solder Reflow Profile
The FT121 is supplied in Pb free TSSOP-16 and QFN-16 packages. The recommended solder reflow profile
for both package options is shown in Figure 9-5.
Figure 9-5 FT121 Solder Reflow Profile
Critical Zone: when
T is in the range
T to T
Time, t (seconds)
25
P
T = 25º C to T
tp
Tp
TL
t
Preheat
S
t
L
Ramp Up
L
p
Ramp
Down
T Max
S
T Min
S
Line 1 – FTDI Logo
Line 2 – Date Code, Revision
Line 3 – FTDI Part Number
FT121Q
YYWW-B
