6 / 46 page

Document No.: FT_000648

FT121 ENHANCED USB DEVICE CONTROLLER WITH SPI SLAVE IC

Datasheet Version 1.2

Clearance No.: FTDI#

312

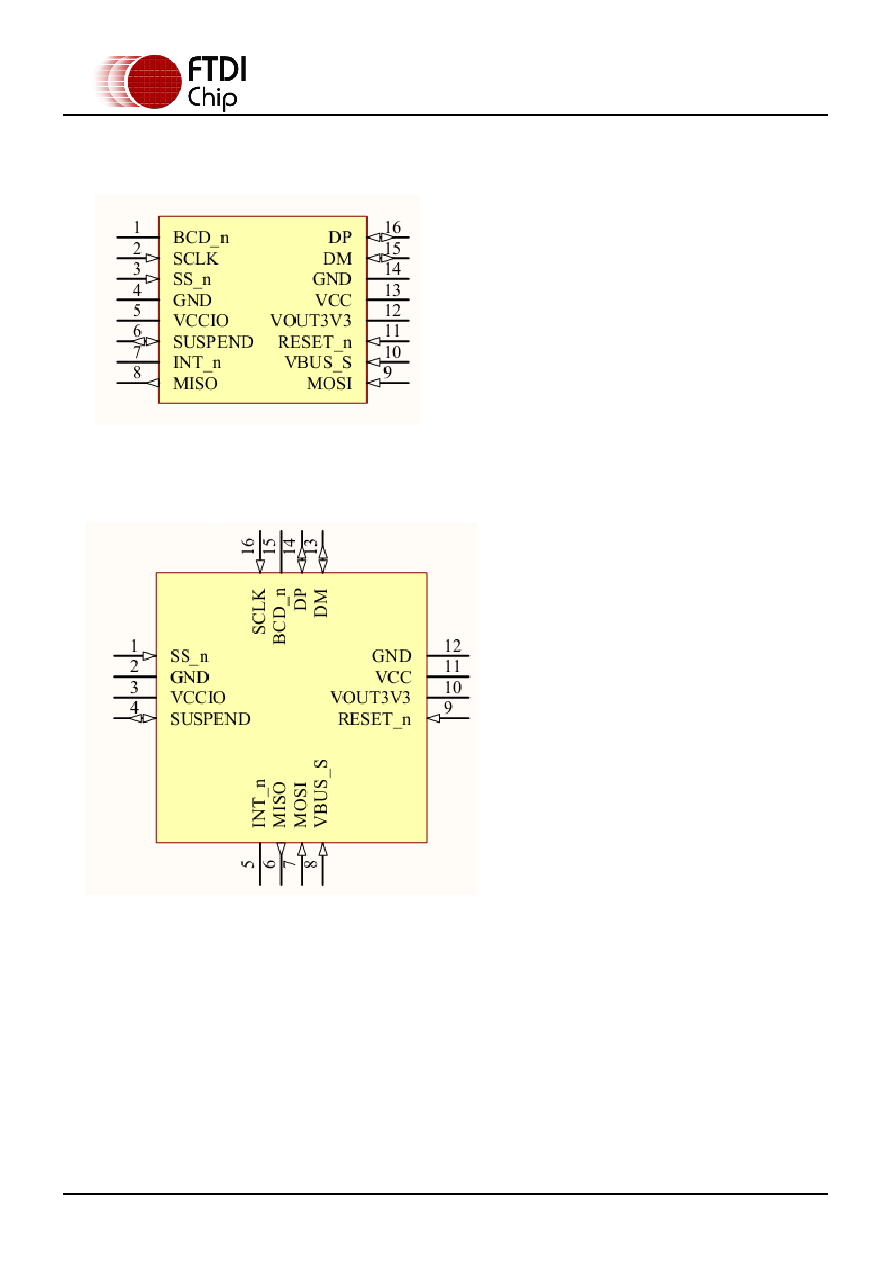

3 Device Pin Out and Signal Description

3.1 TSSOP-16 Package Pin Out

Figure 3-1 TSSOP-16 package schematic symbol

3.2 QFN-16 Package Pin Out

Figure 3-2 QFN-16 package schematic symbol

NOTE: Bottom Side centre pads not shown on QFN Pin Out:



Ground

Bottom View Location = Upper right



VCCIO

Bottom View Location = Lower right



VOUT3V3

Bottom View Location = Lower left



VCC

Bottom View Location = Upper left

See QFN Package information in Section 9.3 below for more details. They may be left unconnected.
