End of Active Video
(EAV)
Start of Active Video
(SAV)
Pixel Data

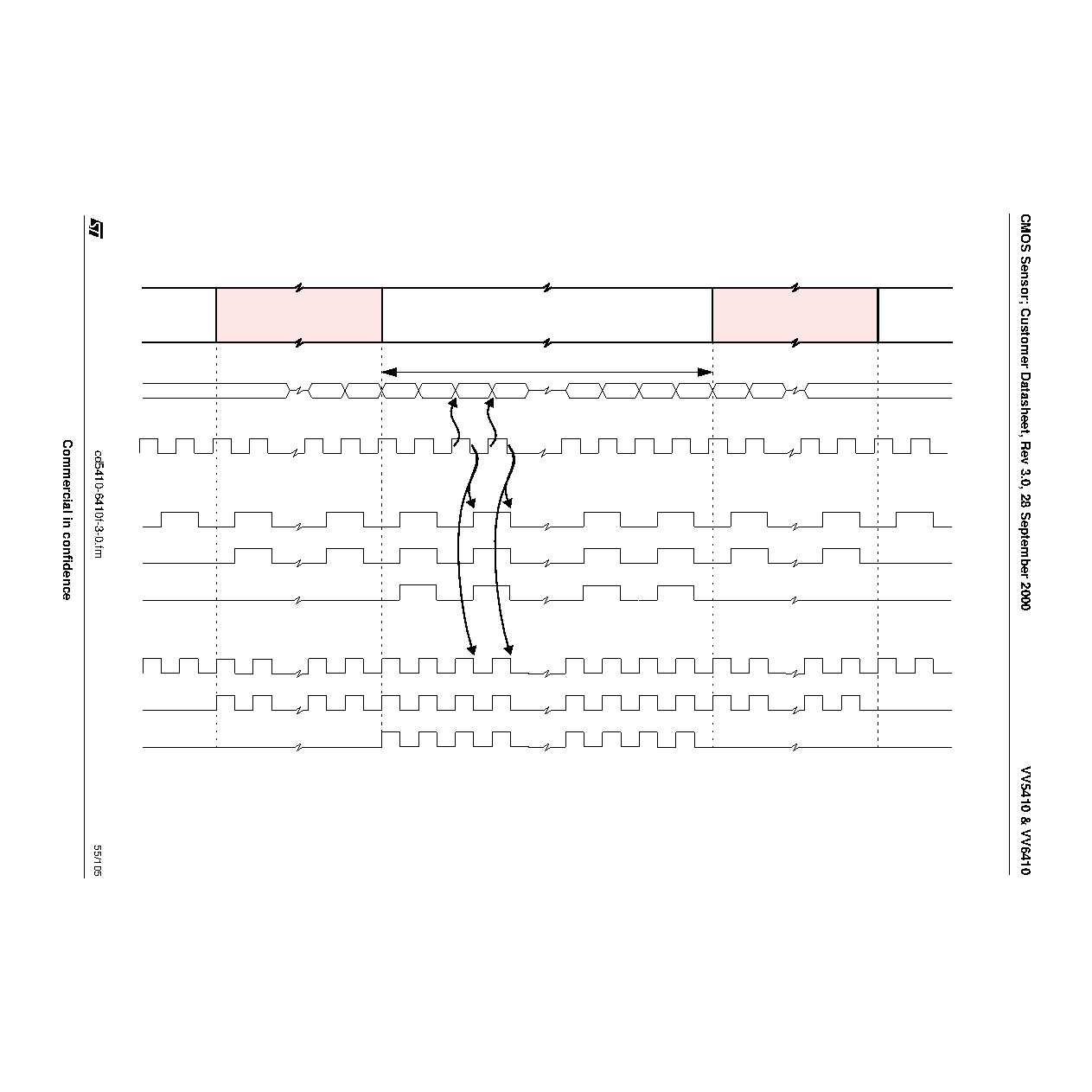

Figure 31 : Qualification of Output Data (Border Rows and Columns Enabled).
Video Data
FH
Line Format
4-wire Nibble Output Mode - D[3:0]
D1
D0
FH
FH
FH
PM
PL
PM
PL
PM
PL
PM
PL
Crystal Clock or external clock applied to CKI
Slow Qualification Clock, QCK
(i) Free running
(ii) Control sequences and Pixel Data
(iii) Pixel Data only
PM = Pixel Value - Most Significant Nibble, PL = Pixel Value - Least Significant Nibble, P = 8-bit Pixel Value
Fast Qualification Clock, QCK
(i) Free running
(ii) Control sequences and Pixel Data
(iii) Pixel Data only
