STV-6410-R01 数据表(PDF) 38 Page - STMicroelectronics

部件名 STV-6410-R01
功能描述  Mono and Colour Digital Video CMOS Image Sensors
PDF  105 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  STMICROELECTRONICS [STMicroelectronics]
网页  http://www.st.com
标志 STMICROELECTRONICS - STMicroelectronics

STV-6410-R01 数据表(HTML) 38 Page - STMicroelectronics

Back Button STV-6410-R01 Datasheet HTML 34Page - STMicroelectronics STV-6410-R01 Datasheet HTML 35Page - STMicroelectronics STV-6410-R01 Datasheet HTML 36Page - STMicroelectronics STV-6410-R01 Datasheet HTML 37Page - STMicroelectronics STV-6410-R01 Datasheet HTML 38Page - STMicroelectronics STV-6410-R01 Datasheet HTML 39Page - STMicroelectronics STV-6410-R01 Datasheet HTML 40Page - STMicroelectronics STV-6410-R01 Datasheet HTML 41Page - STMicroelectronics STV-6410-R01 Datasheet HTML 42Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 38 / 105 page
background image
VV5410 & VV6410
Digital Video Interface Format
cd5410-6410f-3-0.fm
Commercial in confidence
38/105

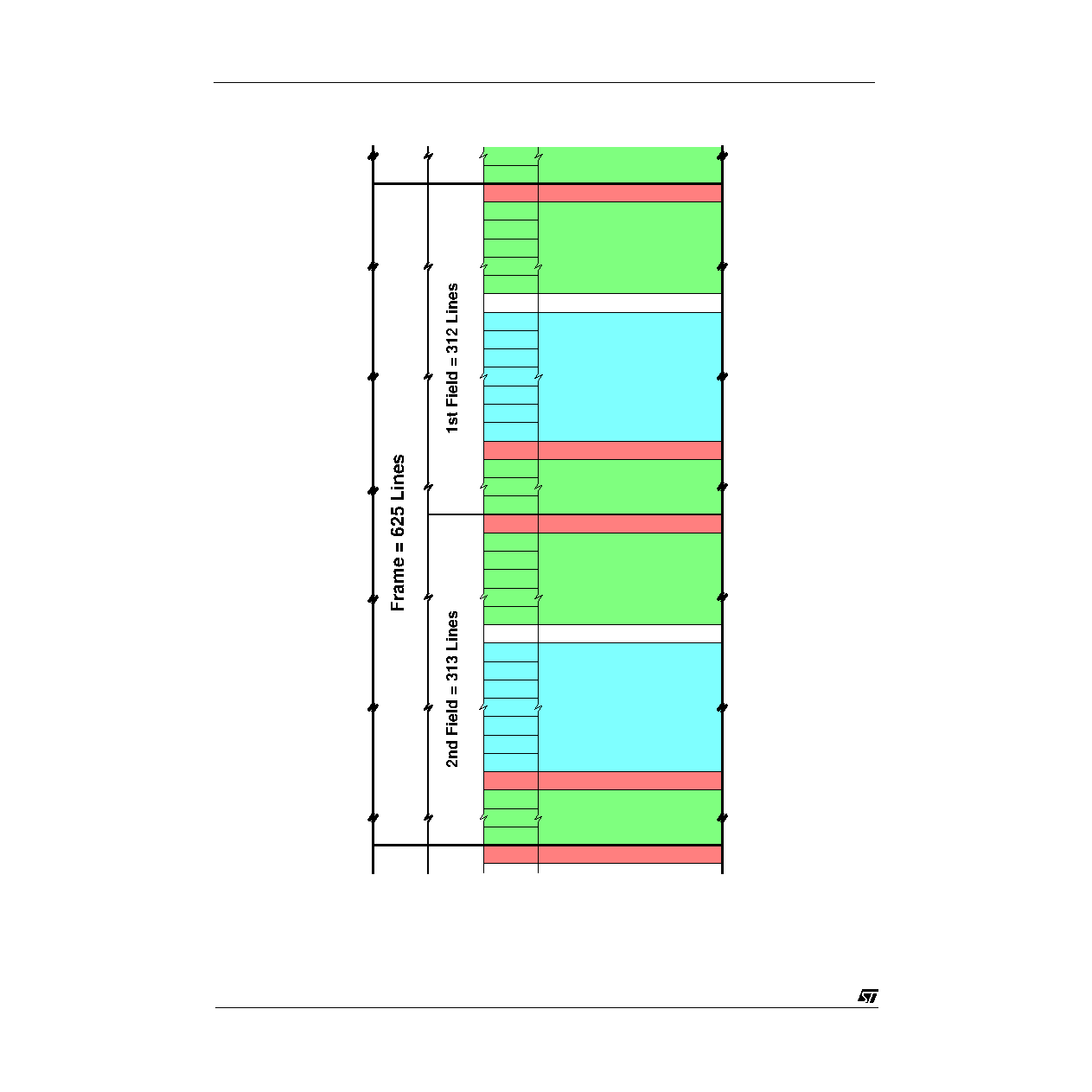

Figure 18 : PAL Field and Frame Formats - VP3 Mode On, Extra Black Lines On
10 Black Lines
312
8 Black Lines
Start Of 2nd Field Line
End Of 2nd Field Line
Blanking Line
292 Visible Lines
10 Black Lines
0
1
0
2
3
9
10
11
301
299
300
12
302
312
303
8 Black Lines
Start Of 1st Field Line
End Of 1st Field Line
Blanking Line
292 Visible Lines
9 Black Lines
1
0
2
3
9
10
11
301
299
300
12
302
311
303
Start Of 1st Field Line
8
8
