SSM2602
Rev. 0 | Page 10 of 32
TYPICAL PERFORMANCE CHARACTERISTICS
CONVERTER FILTER RESPONSE
FREQUENCY (
fS)
00.25
0
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0.75
1.00
1.25
0.50
1.50
2.00
1.75

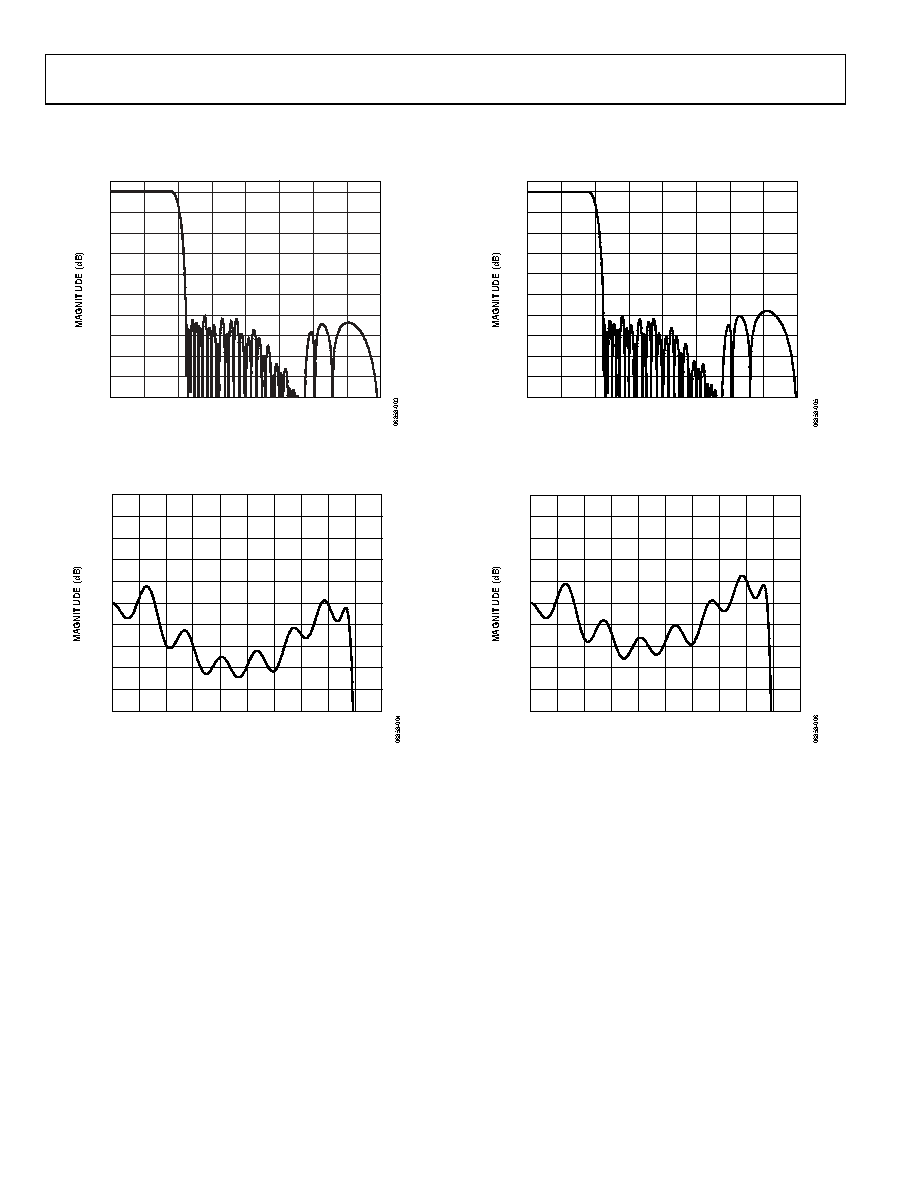

Figure 8. ADC Digital Filter Frequency Response
FREQUENCY (
fS)
0
0.050.100.150.200.250.300.350.400.450.50
−0.05
−0.04
−0.03
−0.02
−0.01
0
0.01
0.02
0.03
0.04
0.05
Figure 9. ADC Digital Filter Ripple
FREQUENCY (
fS)
00.25
0
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0.75
1.00
1.25
0.50
1.50
2.00
1.75
Figure 10. DAC Digital Filter Frequency Response
FREQUENCY (
fS)
0
0.050.100.150.200.250.300.350.400.450.50
−0.05
−0.04
−0.03
−0.02
−0.01
0
0.01
0.02
0.03
0.04
0.05
Figure 11. DAC Digital Filter Ripple
