Data Sheet

ADP1034

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 21 of 41

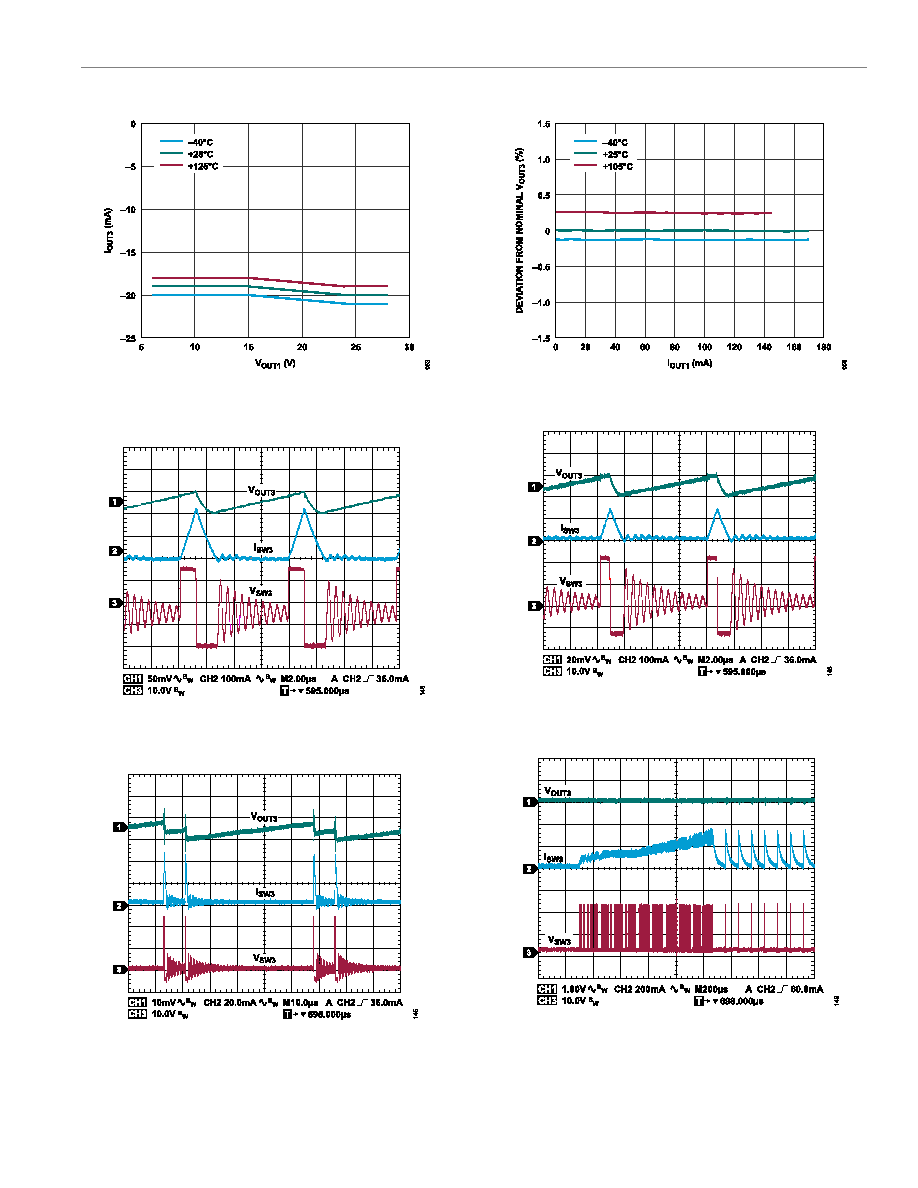

Figure 53. Inverting Regulator Maximum Output Current, VVINP = 24 V, VOUT3 =

−15 V, IOUT1 = 0 mA, IOUT2 = 0 mA, Based on Target of 70% ILIM (FLYBACK) or ILIM

(INVERTER), Whichever Comes First

Figure 54. Inverting Regulator Discontinuous Conduction Operation Showing

Inductor Current (IL3), Switch Node Voltage, and Output Ripple, TA = 25°C,

VOUT1 = 24 V, VOUT3 = −15 V, IOUT3 = −20 mA

Figure 55. Inverting Regulator Pulse Skipping Operation Showing IL3, Switch

Node Voltage, and Output Ripple, TA = 25°C, VOUT1 = 24 V, VOUT3 = −6 V, IOUT3

= −0.3 mA

Figure 56. Inverting Regulator Cross Regulation Across Temperature, VVINP =

24 V, VOUT3 = −15 V, IOUT2 = −4 mA

Figure 57. Inverting Regulator Discontinuous Conduction Operation Showing

IL3, Switch Node Voltage, and Output Ripple, TA = 25°C, VOUT1 = 24 V, VOUT3 =

−15 V, IOUT3 = −7 mA

Figure 58. Inverting Regulator Short-Circuit Current Limit During Startup,

VOUT1 = 24 V, VOUT3 = SGND2, TA = 25°C
