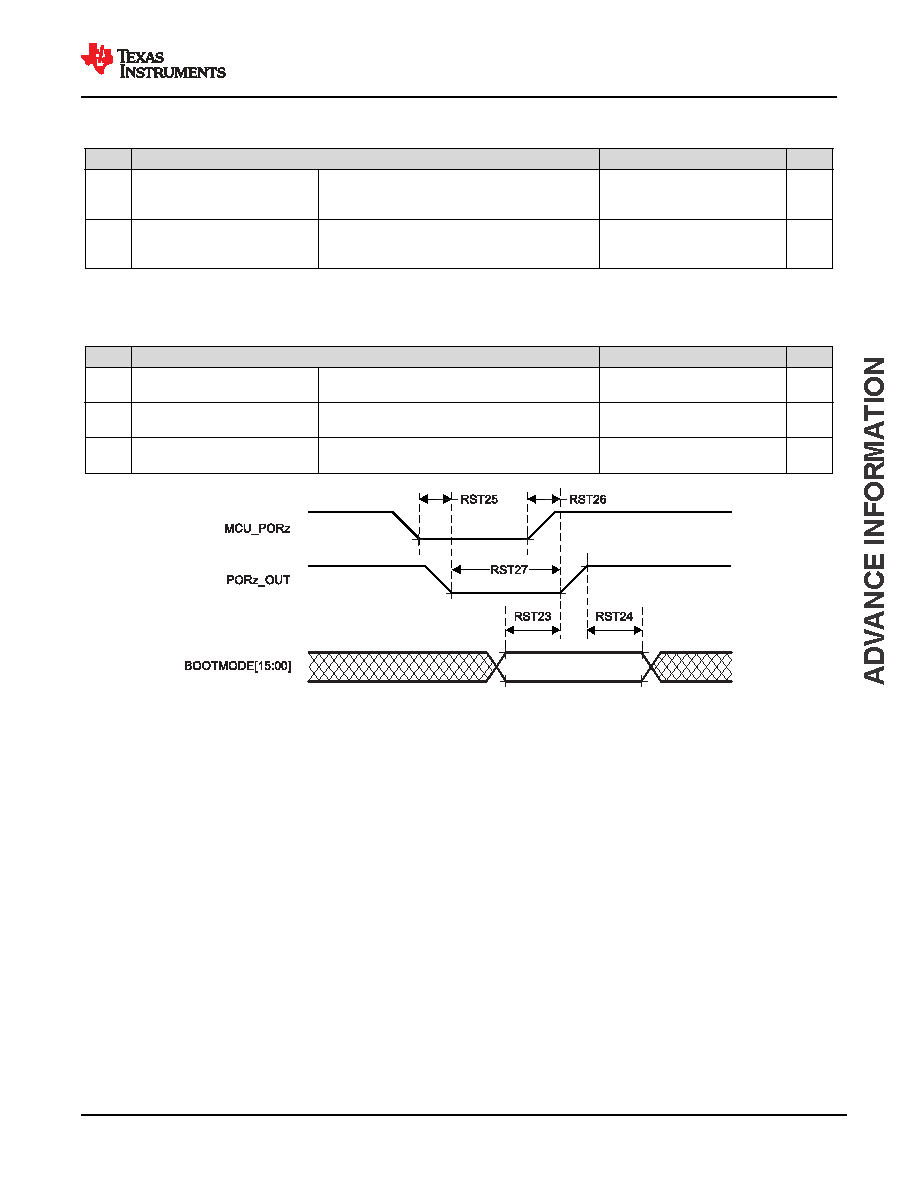

139 / 280 page  Table 7-12. BOOTMODE Timing Requirements see Figure 7-12 NO. PARAMETER MIN MAX UNIT RST23 tsu(BOOTMODE-PORz_OUT) Setup time, BOOTMODE[15:00] before PORz_OUT high (External MCU PORz event or Software SW_MAIN_PORz) 3*S(1) ns RST24 th(PORz_OUT - BOOTMODE) Hold time, BOOTMODE[15:00] after PORz_OUT high (External MCU PORz event, Software SW_MAIN_PORz) 0 ns (1) S = MCU_OSC0_XI/XO clock period Table 7-13. PORz_OUT Switching Characteristics see Figure 7-12 NO. PARAMETER MIN MAX UNIT RST25 td(MCU_PORzL-PORz_OUT) Delay time, MCU_PORz active (low) to PORz_OUT active (low) 0 ns RST26 td(MCU_PORzH-PORz_OUT) Delay time, MCU_PORz inactive (high) to PORz_OUT inactive (high) 0 ns RST27 tw(PORz_OUTL) Pulse Width Minimum PORz_OUT low (MCU_PORz, SW_MAIN_PORz) 1200 ns Figure 7-12. BOOTMODE Timing Requirements and PORz_OUT Switching Characteristics www.ti.com AM2434, AM2432, AM2431 SPRSP65D – APRIL 2021 – REVISED AUGUST 2022 Copyright © 2022 Texas Instruments Incorporated Submit Document Feedback 139 Product Folder Links: AM2434 AM2432 AM2431 |
|
