AM2434...ALV 数据表(PDF) 154 Page - Texas Instruments |
|
|
|||||||||||||||||||||||||||||
AM2434...ALV 数据表(HTML) 154 Page - Texas Instruments |
|
|

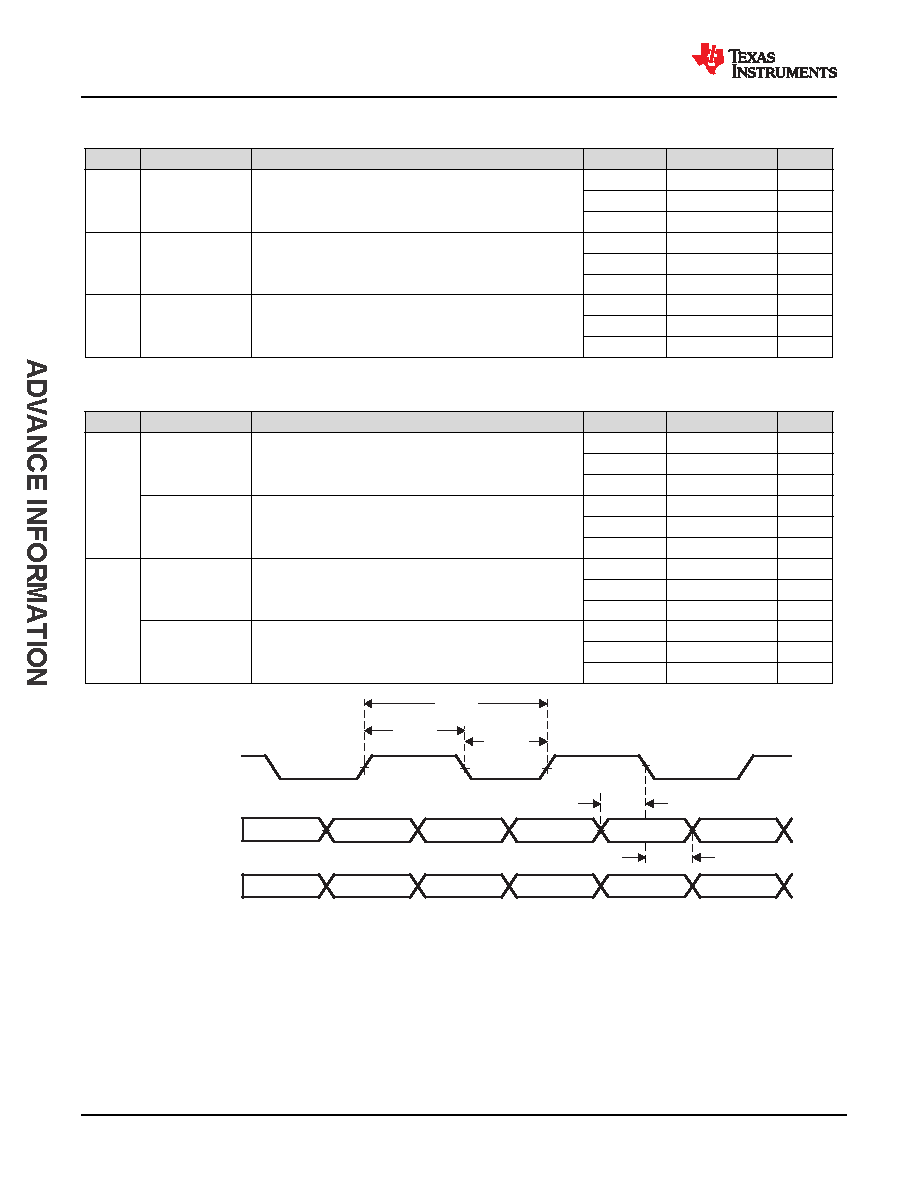

154 / 280 page  Table 7-29. RGMII[x]_TXC Switching Characteristics – RGMII Mode see Figure 7-27 NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT RGMII6 tc(TXC) Cycle time, RGMII[x]_TXC 10Mbps 360 440 ns 100Mbps 36 44 ns 1000Mbps 7.2 8.8 ns RGMII7 tw(TXCH) Pulse duration, RGMII[x]_TXC high 10Mbps 160 240 ns 100Mbps 16 24 ns 1000Mbps 3.6 4.4 ns RGMII8 tw(TXCL) Pulse duration, RGMII[x]_TXC low 10Mbps 160 240 ns 100Mbps 16 24 ns 1000Mbps 3.6 4.4 ns Table 7-30. RGMII[x]_TD[3:0] and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode see Figure 7-27 NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT RGMII9 tosu(TD-TXC) Output setup time, RGMII[x]_TD[3:0] valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns tosu(TX_CTL-TXC) Output setup time, RGMII[x]_TX_CTL valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns RGMII10 toh(TXC-TD) Output hold time, RGMII[x]_TD[3:0] valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns toh(TXC-TX_CTL) Output hold time, RGMII[x]_TX_CTL valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns RGMII[x]_TXC (A) RGMII[x]_TD[3:0] (B) RGMII[x] TX_CTL _ (B) RGMII9 1st Half-byte TXERR TXEN 2nd Half-byte RGMII7 RGMII8 RGMII6 RGMII10 A. TXC is delayed internally before being driven to the RGMII[x]_TXC pin. This internal delay is always enabled. B. Data and control information is received using both edges of the clocks. RGMII[x]_TD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_TXC and data bits 7-4 on the falling edge of RGMII[x]_TXC. Similarly, RGMII[x]_TX_CTL carries TXEN on rising edge of RGMII[x]_TXC and TXERR on falling edge of RGMII[x]_TXC. Figure 7-27. CPSW3G RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics - RGMII Mode AM2434, AM2432, AM2431 SPRSP65D – APRIL 2021 – REVISED AUGUST 2022 www.ti.com 154 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: AM2434 AM2432 AM2431 |
|
