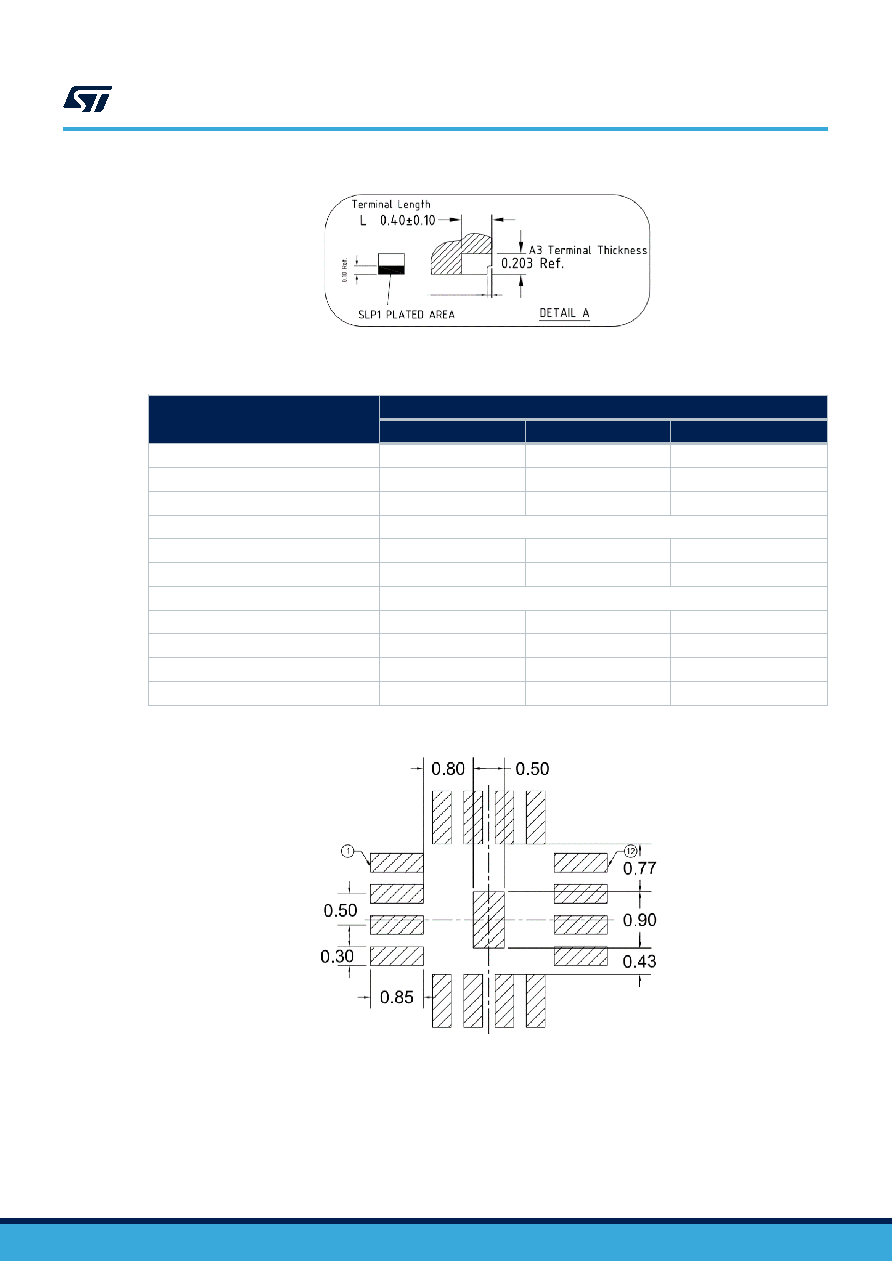

Figure 55. QFN16 (3x3mm) package outline. Detail A
Table 10. QFN16 (3x3mm) mechanical data
Symbol
mm
Min.
Typ.
Max.
A
0.7
0.75
0.8
A1
0
0.05
A2
0,5
0.55
0.6
A3
0,203REEF
b
0.2
0.25
0.3
L
0.3
0.4
0.5
e
0,50BSC
D
2,95
3
3,05
E
2,95
3
3,05
D1
0,43
0,48
0,53
E1
0.81
0,86
0,91
Figure 56. QFN16 (3x3 mm) recommended footprint
L6983I
QFN16 (3x3 mm) package information
DS14040 - Rev 1
page 48/56
