AD4056BCPZ-R2 数据表(PDF) 13 Page - Analog Devices

部件名 AD4056BCPZ-R2
功能描述  Compact, Low Power, 12-Bit, 2 MSPS/500 kSPS Easy Drive SAR ADC
PDF  67 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

AD4056BCPZ-R2 数据表(HTML) 13 Page - Analog Devices

Back Button AD4056BCPZ-R2 Datasheet HTML 9Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 10Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 11Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 12Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 13Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 14Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 15Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 16Page - Analog Devices AD4056BCPZ-R2 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 67 page
background image
Data Sheet
AD4050/AD4056
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 67
VDD = 3.3 V, VREF = 3.3 V, VIO = 3.3 V, CREF = 2.2 μF, maximum fS, TA = 25°C, and all features in default configuration, unless otherwise
specified.

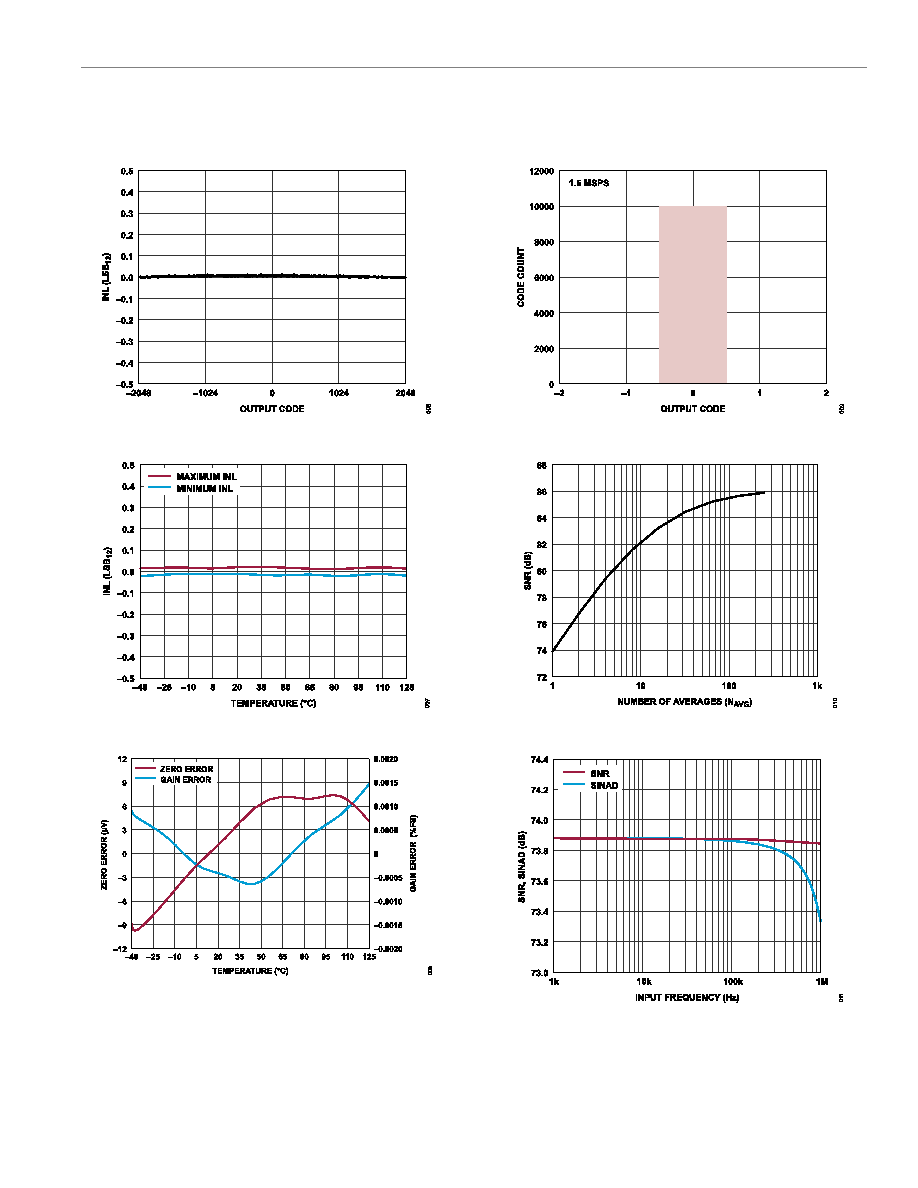

Figure 6. INL vs. Output Code
Figure 7. INL vs. Temperature
Figure 8. Zero Error and Gain Error vs. Temperature
Figure 9. Histogram, Sample Mode (No Averaging)
Figure 10. SNR vs. Number of Averages
Figure 11. SNR, SINAD vs. Input Frequency
