SPECIFICATIONS

TRANSMITTER SPECIFICATIONS

Description

Specification

120 Vac +10%/-15%, 50-60 Hz

Supply Voltage

240 Vac +10%/-15%, 50-60 Hz

24 Vdc +/-20%

Power Consumption

12 watts maximum

Analog output signal

4–20 mA (isolated)

Active mode

maximum 1,000

Ω loop resistance

4–20 mA (isolated)

Analog output signal

loop resistance dependent on

Passive mode

power supply

Digital output

RS–485 with Modbus

Relays

10 amp SPDT resistive (none, 2, or 4)

Fail-safe

User selectable for analog

and relay outputs

Ambient Temperature

(Electronics)

-40° F to +160° F (-40° C to +71° C)

Display

Two-line alphanumeric LCD

(16 characters per line)

Keypad

16-button

Humidity (Electronics)

99% non-condensing

Fuse (Non-replaceable)

⁄8 amp, 250 Vac Slo-Blo® for AC units

11⁄2 amp, 250 Vdc Slo-Blo® for DC units

TRANSDUCER SPECIFICATIONS

PERFORMANCE SPECIFICATIONS

Description

Specification

Response time

2 seconds typical

Accuracy

± 0.25% of calibrated span

Description

Specification

Transducer Frequency 38 kHz

Maximum Range

30 feet (9.1 m)

Maximum Span

28.5 feet (8.7 m)

Dead Band

18 inches (460 mm) minimum

Ambient Temperature

-40° F to +163° F (-40° C to +73° C)

(Transducer)

non-operational to +250° F (121° C)

Temperature

Automatic over range of transducer

Compensation

operating temperature

Operating Pressure

–10 to +50 psig (–0.689 to +3.45 Bar)

Beam Angle

Conical 12°

Cable length

500 feet maximum (between transducer

and electronics)

FM AGENCY APPROVALS

CSA AGENCY APPROVALS

Model

Approval

Non-hazardous environment

300-RXXX-45X,

Type 4X enclosure

301-RXXX-400

Hazardous environments

and

Class

I, Division 1, Groups B, C, & D

384-XK0X-0XX

Class

II, Division 1, Groups E, F, & G

Class

III

384-XK1X-0XX

Hazardous environments

and

Class

I, Division 1, Groups C & D

384-XKYX-0XX

Class

II, Division 1, Groups E, F, & G

Class

III

These units have been tested to EN 50081-2 and EN 50082-2 and

are in compliance with the EMC Directive 89/336/EEC.

Model

Approval

Indoors and outdoors

300-RXXX-45X,

NEMA Type 4X and IP 65

301-RXXX-400

Hazardous locations

and

Class

I, Division 1, Groups B, C, & D

384-XKXX-0XX

Class

II, Division 1, Groups E, F, & G

Class

III

3.87 (98)

Rotation

clearance

2" NPT

Process

Connection

3.00 (76) or 10.00 (254)

Insertion Length

5.93 (151)

1" NPT

(plugged)

12.25

(311)

1" NPT

8.46

(215)

2.12 (54) Insertion Diameter

2 Holes

.38 (10) Dia.

3.00

(76)

2.00

(51)

2.37

(60)

3.50

(89)

3.87 (98)

Rotation

clearance

3.75

(95)

5.93

(151)

10.68

(271)

1" NPT

8.46

(215)

3/4" NPT

Plug

Model 301 Remote Mount with Bracket

Model 300 Integral Mount

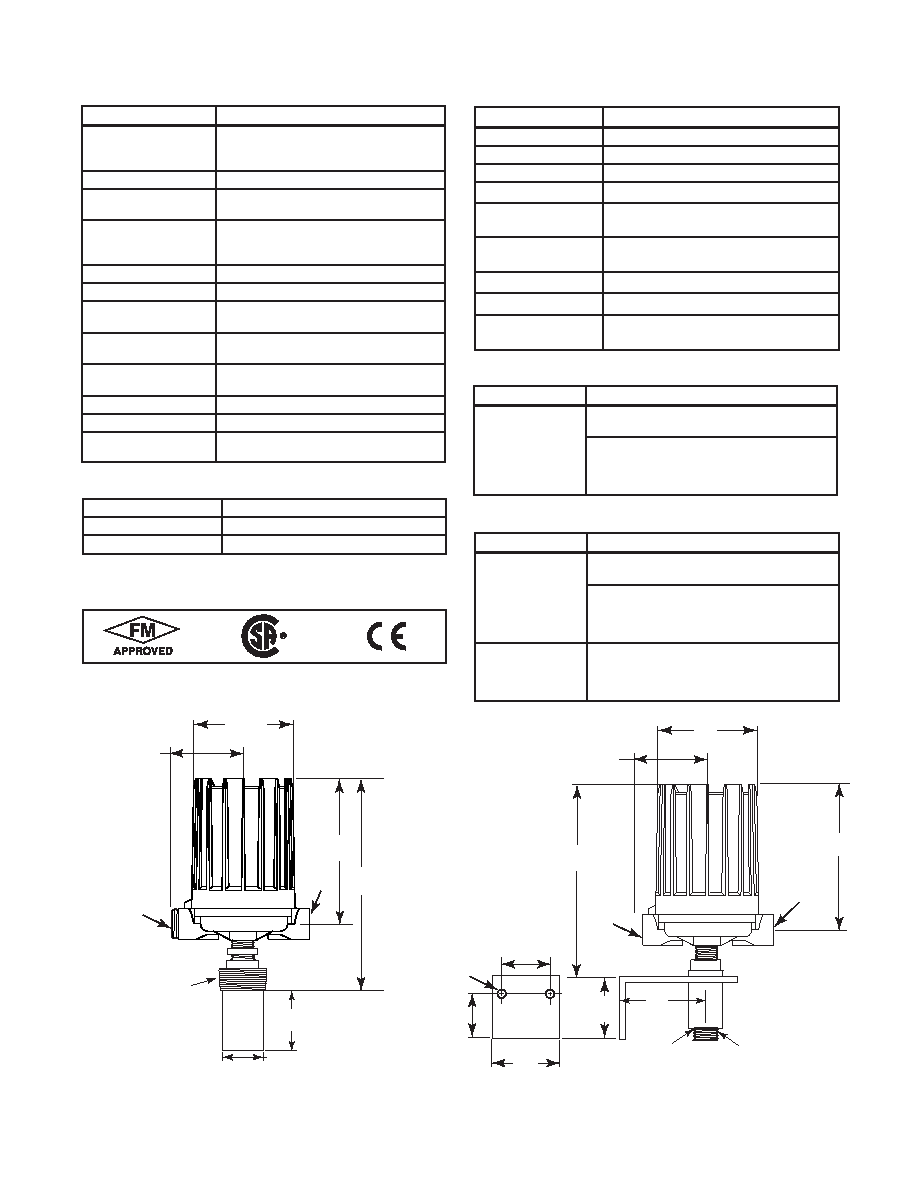

DIMENSIONAL SPECIFICATIONS

Inches (mm)

Figure 21

Transmitters
