WIRING cont.

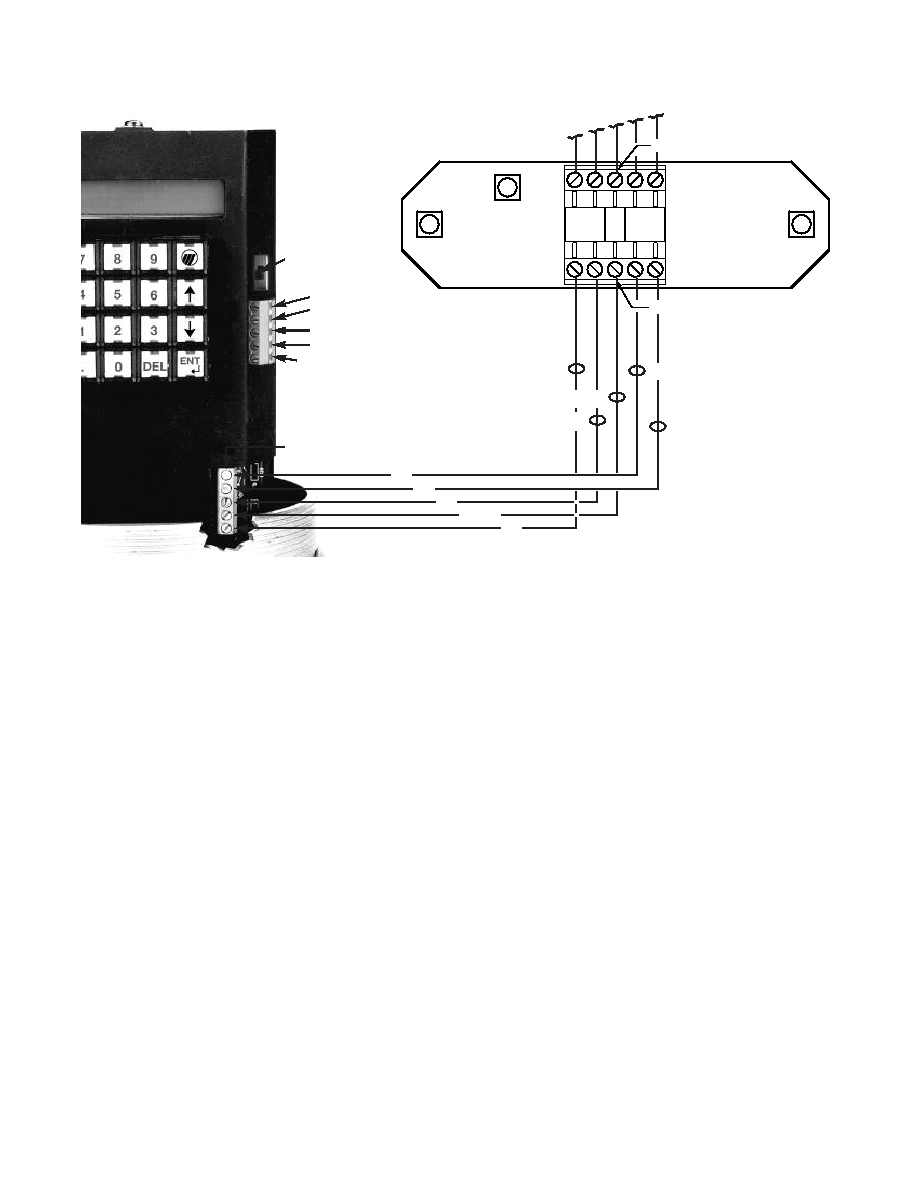

Figure 6

Optional Remote Transducer Housing Wiring

Figure 5

Front Panel Wiring

TRANSDUCER

WIRING

(X1, X2 [GND], SHLD)

TEMPERATURE

SENSOR

WIRING

(+, –)

+ –

Shield

Blue with white stripe

Orange with white stripe

White with orange stripe

White with blue stripe

Shield

RS-485 terminals

4–20 mA terminals

Active/Passive

mode switch

(+)

(–)

}

Transducer wiring (TB6)

Shield

–

TRANSDUCER WIRING

The transducer wiring section describes the proper wiring

procedures for connecting a remote Model 301 transmitter

with a Model 384 transducer. If you have an integral Model

300 unit, please proceed to Control Relay Wiring.

NOTE: Remote mount Model 301 transducer cabling should

be routed through the 1" NPT conduit opening in the front of

the unit. No cables should be routed through the bottom

center entry in the base of remote-mounted Model 301 units.

The transducer cable consists of two twisted pairs of wire,

wrapped with a shield. Each wire is labeled for identification.

Refer to Figures 5 and 6.

After running the transducer wiring through the conduit,

from the transducer to the transmitter, separate the

wires into two groups;

Group 1 – Signal Wiring (transducer), orange wire pair.

Group 2 – Temperature Compensation Wiring (temper-

ature sensor), blue wire pair.

NOTE: It is imperative that Magnetrol cable, part number

037-3176 (Belden Type 8102 or Carol C0515/E111240), be

used. If connecting cable was not provided with unit, consult

the factory for specifications. Maximum total cable length is

500 feet (152 m). AVOID SPLICING CABLE.

To prevent electromagnetic noise from disrupting the normal

operation of the Model 301, each transducer cable must be

run in its own conduit, separated from power, relays, and

other transducer cables.

Not

used
