EM351 / EM357

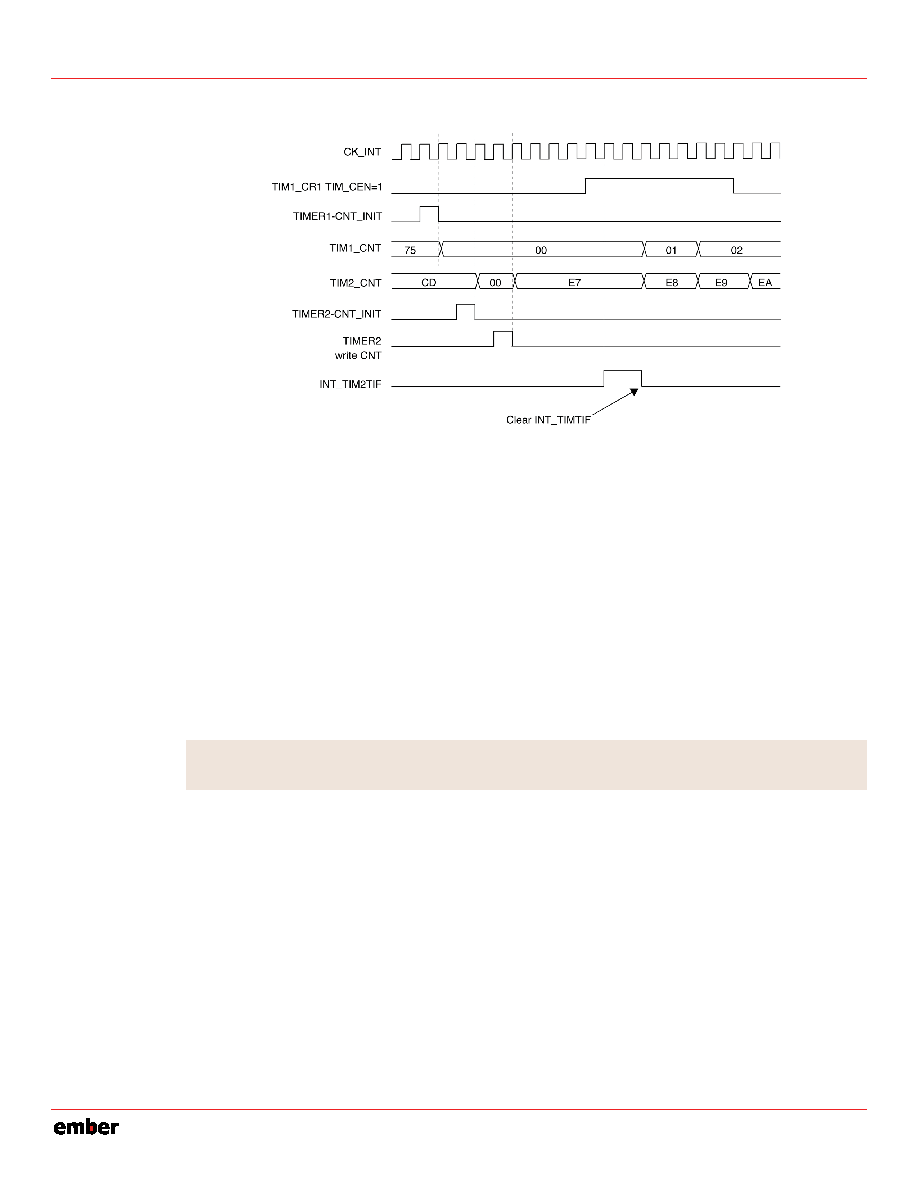

Figure 9-35. Triggering Timer 2 with Enable of Timer 1

9.3.14.4

Starting both Timers Synchronously in Response to an External Trigger

This example sets the enable of Timer 1 when its TI1 input rises, and the enable of Timer 2 with the enable of

Timer 1. To ensure the counters are aligned, Timer 1 must be configured in master/slave mode (slave with

respect to TI1, master with respect to Timer 2):

Configure Timer 1 in master mode to send its Enable as trigger output: Write TIM_MMS = 001 in the

TIM1_CR2 register.

Configure Timer 1 slave mode to get the input trigger from TI1: Write TIM_TS = 100 in the TIM1_SMCR

Configure Timer 1 in trigger mode: Write TIM_SMS = 110 in the TIM1_SMCR register.

Configure the Timer 1 in master/slave mode: Write TIM_MSM = 1 in the TIM1_SMCR register.

Configure Timer 2 to get the input trigger from Timer 1: Write TIM_TS = 000 in the TIM2_SMCR register.

Configure Timer 2 in trigger mode: Write TIM_SMS = 110 in the TIM2_SMCR register.

When a rising edge occurs on TI1 (Timer 1), both counters start counting synchronously on the internal clock

and both timers’ INT_TIMTIF flags are set. Figure 9-36 shows this in operation.

Note:

In this example both timers are initialized before starting by setting their respective TIM_UG bits. Both

counters starts from 0, but an offset can be inserted between them by writing any of the counter registers

(TIMx_CNT). The master/slave mode inserts a delay between CNT_EN and CK_PSC on Timer 1.
