EM351 / EM357

6.5.2

Basic Sleep Modes

The power management state diagram in Figure 6-3 shows the basic operation of the power management

controller.

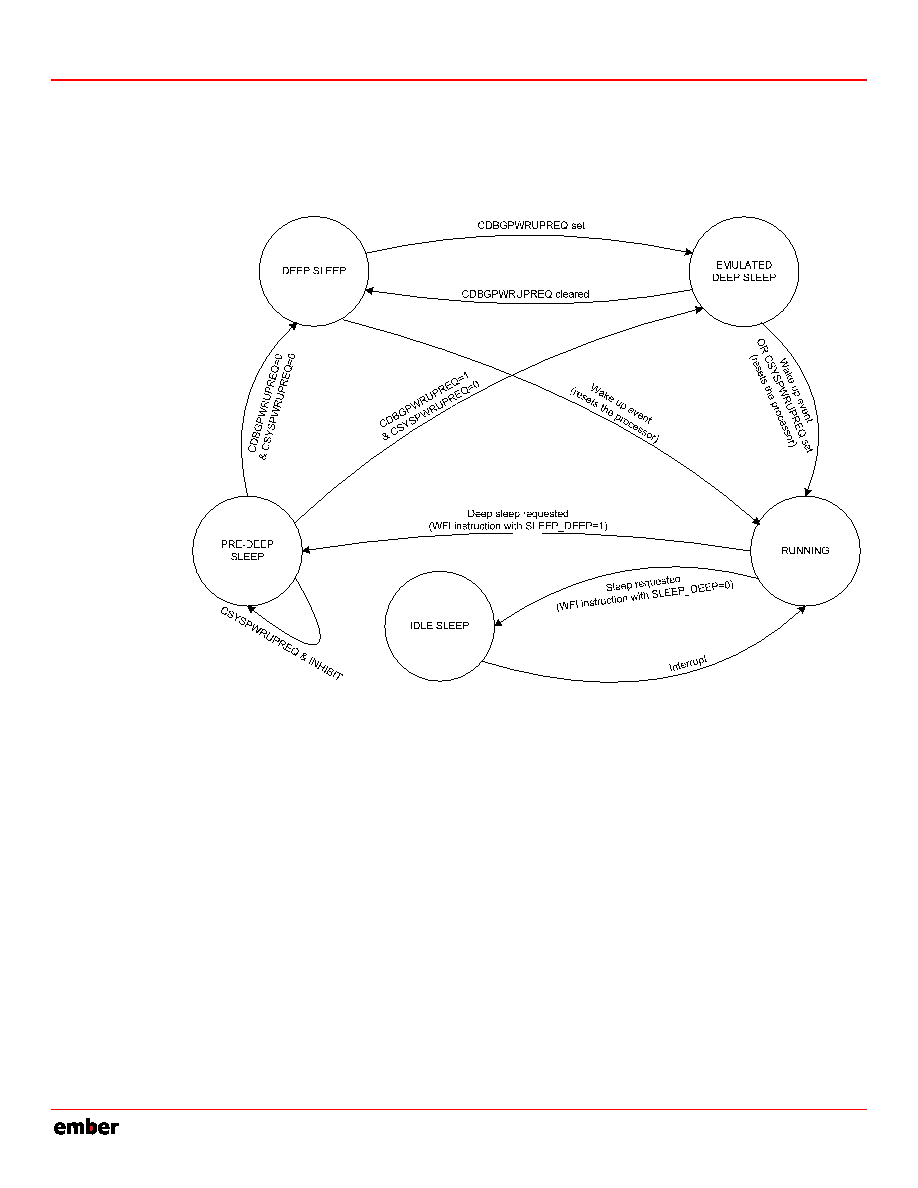

Figure 6-3. Power Management State Diagram

In normal operation an application may request one of two low power modes through program execution:

Idle Sleep is achieved by executing a WFI instruction while the SLEEPDEEP bit in the Cortex System Control

interrupt occurs. This is indicated by the state at the bottom of the diagram. Power is maintained to the

core logic of the EM35x during the Idle Sleeping state.

Deep sleep is achieved by executing a WFI instruction with the SLEEPDEEP bit in SCS_SCR set. This triggers

the state transitions around the main loop of the diagram, resulting in powering down the EM35x’s core

logic, and leaving only the always-on domain powered. Wake up is triggered when one of the pre-

determined events occurs.

If a deep sleep is requested the EM35x first enters a pre-deep sleep state. This state prevents any section of

the chip from being powered off or reset until the SWJ goes idle (by clearing CSYSPWRUPREQ). This pre-deep

sleep state ensures debug operations are not interrupted.

In the deep sleep state the EM35x waits for a wake up event which will return it to the running state. In

powering up the core logic the ARM

® CortexTM-M3 is put through a reset cycle and Ember software restores the

stack and application state to the point where deep sleep was invoked.

6-12

120-035X-000D

Preliminary
