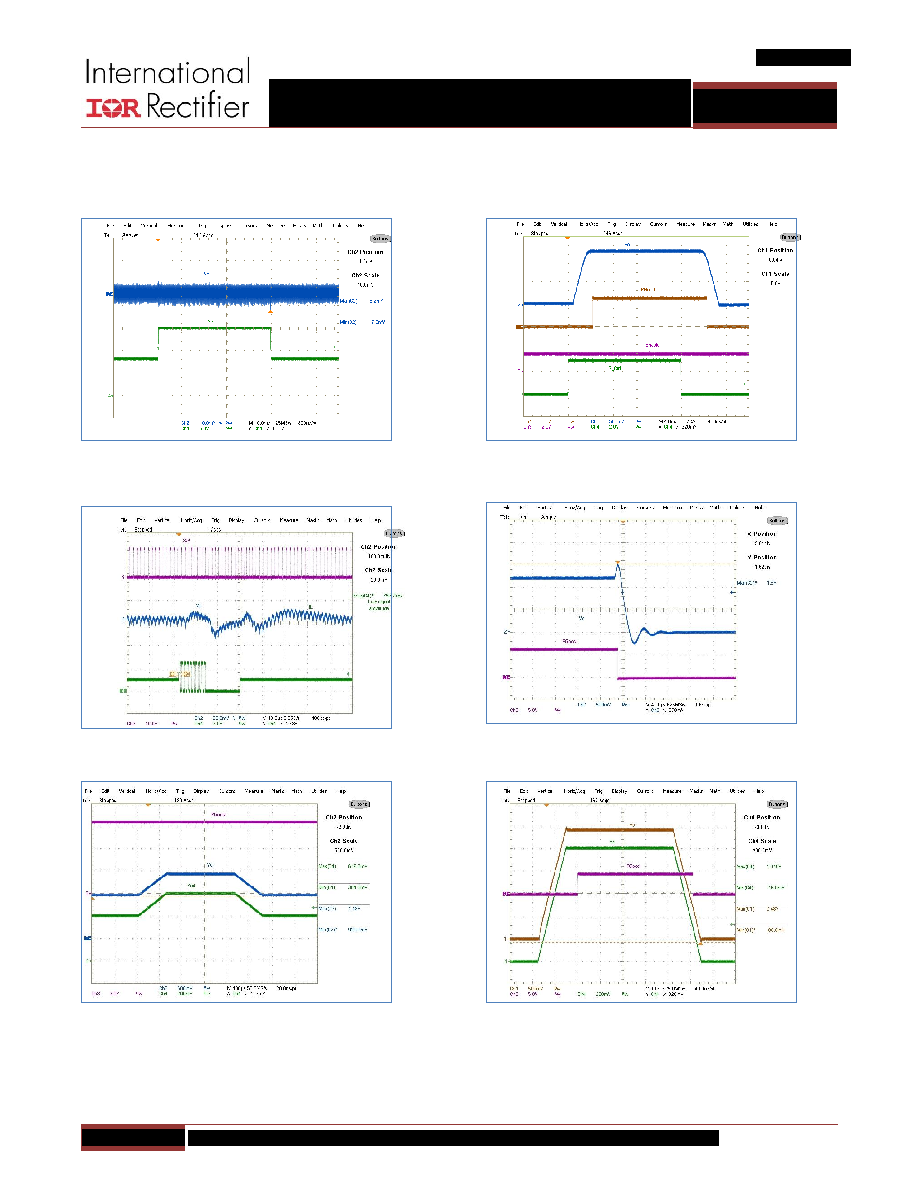

40 / 46 page  - 40 - JANURARY 18, 2013 | DATA SHEET | Rev 3.5 40 IR3898 6A Highly Integrated SupIRBuck TM Single-Input Voltage, Synchronous Buck Regulator PD-97662 TYPICAL OPERATING WAVEFORMS Vin = 12V, Vo = 1.2V, Iout = 0-6A Room Temperature, No Air Flow Figure 43: Feed Forward for Vin change from 7-16-7V Figure 44: Start/Stop using S-ctrl pin Ch2-Vo,Ch4:Vin Ch1-PGood,Ch2:Vout;Ch3-EN.Ch4-S-Ctrl Figure 45: External frequency synchronization to Figure 46: Over Voltage protection 800KHz from free running 600KHz, Ch2:Vo, Ch3:LX, Ch4:Rt/Sync Voltage Ch2-Vo,Ch43-PGood Figure 47: Voltage Margining using Vref pin Figure 48: Voltage tracking using Vp Pin Ch2:Vo, Ch3:PGood, Ch4:Vref Ch1:Vo, Ch3:PGood, Ch4:Vp |
|
