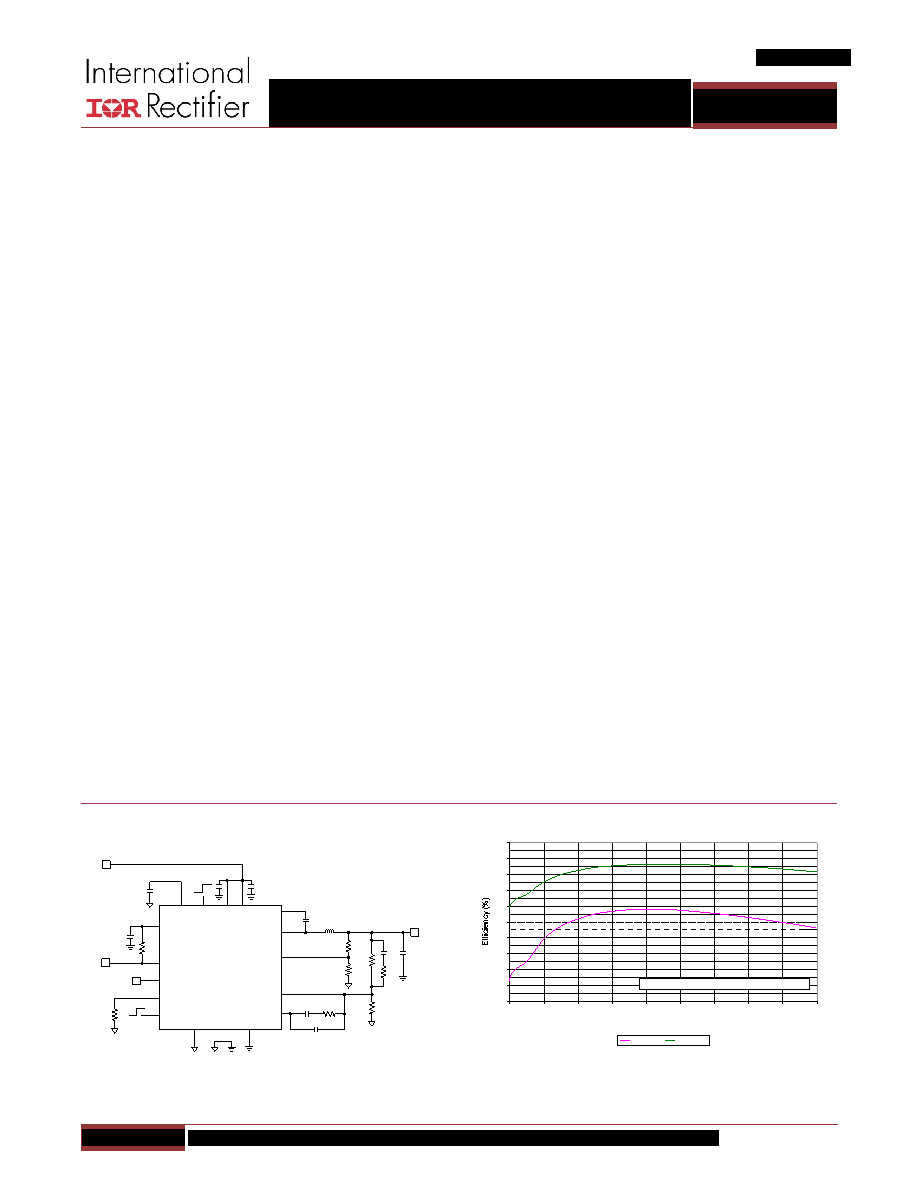

- 1 -

JANURARY 18, 2013 | DATA SHEET | Rev 3.5

1

IR3898

6A Highly Integrated SupIRBuck

TM

Single-Input Voltage, Synchronous Buck Regulator

PD-97662

78

80

82

84

86

88

90

92

94

96

98

0.6

1.2

1.8

2.4

3

3.6

4.2

4.8

5.4

6

Load Current (A)

1.2Vout

3.3Vout

12Vin,Internal bias,Frequency 600KHz

FEATURES

 Single 5V to 21V application

 Wide Input Voltage Range from 1.0V to 21V with

external Vcc

 Output Voltage Range: 0.5V to 0.86× Vin

 Enhanced Line/Load Regulation with Feed-Forward

 Programmable Switching Frequency up to 1.5MHz

 Internal Digital Soft-Start/Soft-Stop

 Enable input with Voltage Monitoring Capability

 Thermally Compensated Current Limit with robust

hiccup mode over current protection

 Smart Internal LDO to improve light load and full load

efficiency

 External Synchronization with Smooth Clocking

 Enhanced Pre-Bias Start-Up

 Precision Reference Voltage (0.5V+/-0.5%) with

margining capability

 Vp for Tracking Applications (Source/Sink Capability

+/-6A)

 Integrated MOSFET drivers and Bootstrap Diode

 Thermal Shut Down

 Programmable Power Good Output with tracking

capability

 Monotonic Start-Up

 Operating temp: -40oC < Tj < 125oC

 Small Size: 4mm x 5mm PQFN

 Lead-free, Halogen-free and RoHS Compliant

BASIC APPLICATION

Boot

Vcc/

LDO_out

Fb

Comp

Gnd

PGnd

SW

Vo

PGood

Rt/Sync

5V <Vin<21V

PVin

Vp

Vin

Enable

Vref

Vsns

S_Ctrl

IR3898

Vp

PGood

Figure 1: IR3898 Basic Application Circuit

DESCRIPTION

The IR3898 SupIRBuck

TM is an easy-to-use, fully

integrated and highly efficient DC/DC regulator.

The onboard PWM controller and MOSFETs make

IR3898 a space-efficient solution, providing accurate

power delivery.

IR3898 is a versatile regulator which offers

programmable switching frequency and the fixed

internal current limit while operates in wide input and

output voltage range.

The switching frequency is programmable from 300kHz

to 1.5MHz for an optimum solution.

It also features important protection functions, such as

Pre-Bias startup, thermally compensated current limit,

over voltage protection and thermal shutdown to give

required system level security in the event of fault

conditions.

APPLICATIONS

 Netcom Applications

 Embedded Telecom Systems

 Server Applications

 Storage Applications

 Distributed Point of Load Power Architectures

Figure 2:IR3898 Efficiency
