- 43 -

JANURARY 18, 2013 | DATA SHEET | Rev 3.5

IR3898

6A Highly Integrated SupIRBuck

Single-Input Voltage, Synchronous Buck Regulator

PD-97662

PCB METAL AND COMPONENT PLACEMENT

Evaluations have shown that the best overall

performance is achieved using the substrate/PCB layout

as shown in following figures. PQFN devices should be

placed to an accuracy of 0.050mm on both X and Y axes.

Self-centering behavior is highly dependent on solders

and processes, and experiments should be run to confirm

the limits of self-centering on specific processes.

For further information, please refer to “SupIRBuck™

Multi-Chip Module (MCM) Power Quad Flat No-Lead

(PQFN) Board Mounting Application Note.” (AN1132)

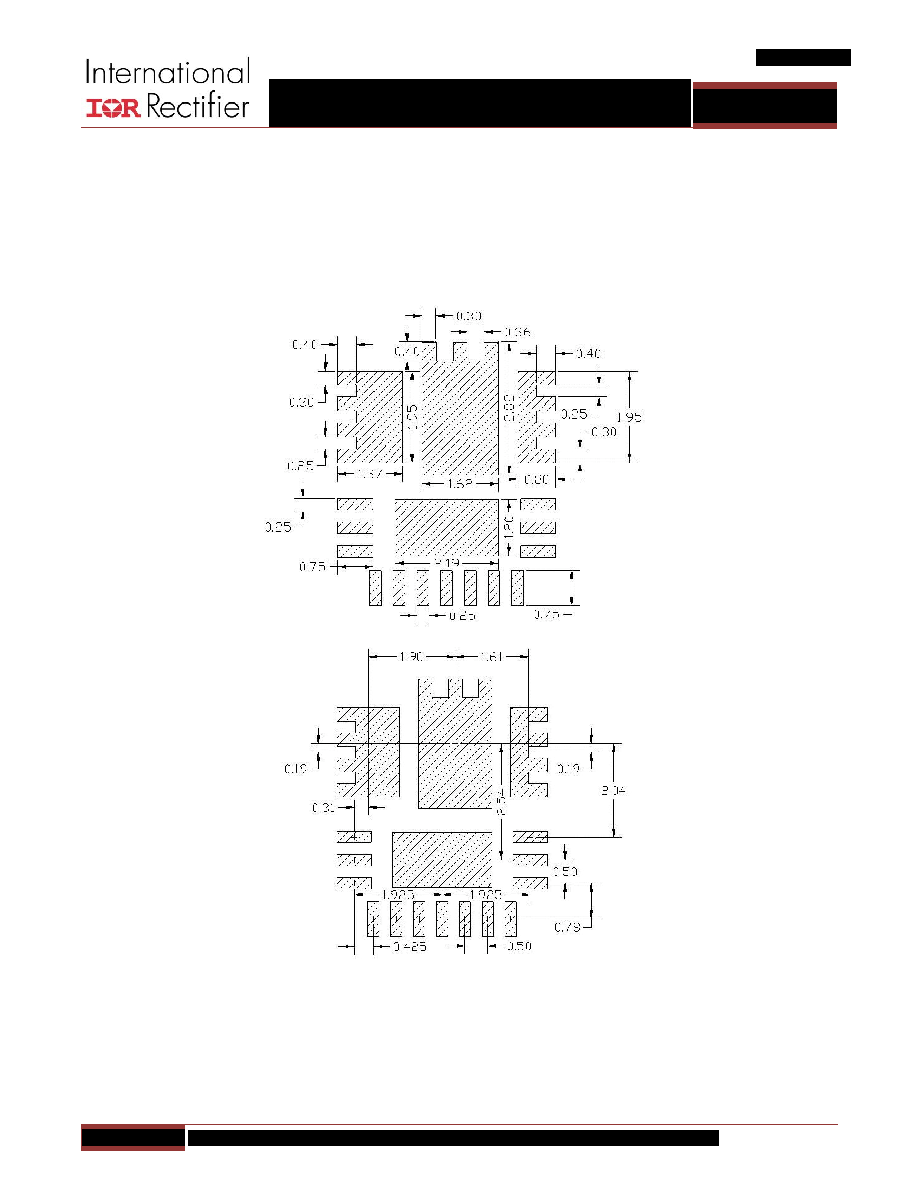

Figure 50: PCB Metal Pad Spacing (all dimensions in mm)

* Contact International Rectifier to receive an electronic PCB Library file in your preferred format
