EM351 / EM357

Figure 9-24 illustrates this example.

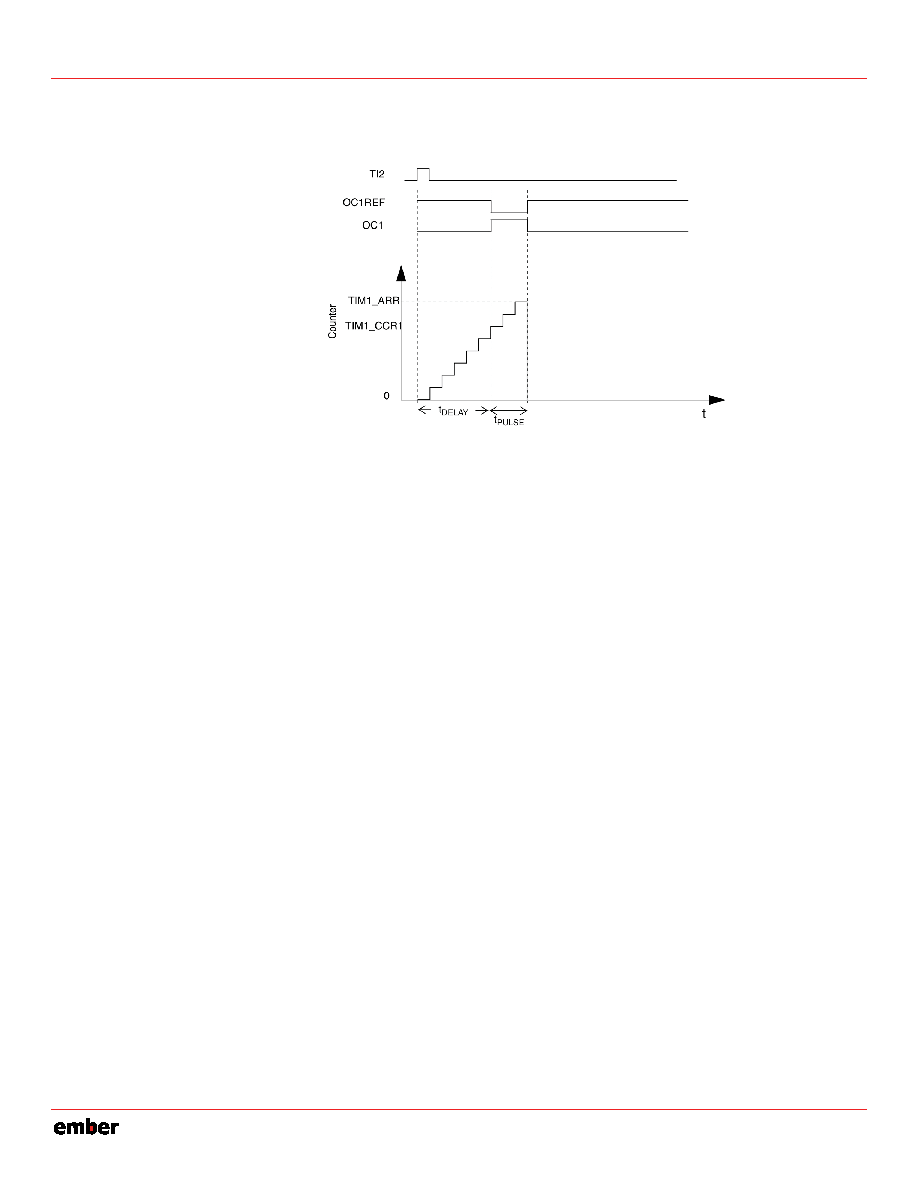

Figure 9-24. Example of One Pulse Mode

9.3.10.1

A Special Case: OCy Fast Enable

In one-pulse mode, the edge detection on the TIy input sets the TIM_CEN bit, which enables the counter. Then

the comparison between the counter and the compare value toggles the output. However, several clock cycles

are needed for this operation, and it limits the minimum delay (tDELAY min) achievable.

To output a waveform with the minimum delay, set the TIM_OCyFE bit in the TIMx_CCMR1 register. Then

OCyREF and OCy are forced in response to the stimulus, without taking the comparison into account. Its new

level is the same as if a compare match had occurred. TIM_OCyFE acts only if the channel is configured in

PWM mode 1 or 2.

9.3.11 Encoder Interface Mode

To select encoder interface mode, write TIM_SMS = 001 in the TIMx_SMCR register to count only TI2 edges,

TIM_SMS = 010 to count only TI1 edges, and TIM_SMS = 011 to count both TI1 and TI2 edges.

Select the TI1 and TI2 polarity by programming the TIM_CC1P and TIM_CC2P bits in the TIMx_CCER register. If

needed, program the input filter as well.

The two inputs TI1 and TI2 are used to interface to an incremental encoder (see Table 9-3). Assuming that it is

enabled (the TIM_CEN bit in the TIMx_CR1 register = 1), the counter is clocked by each valid transition on

TI1FP1 or TI2FP2 (TI1 and TI2 after input filter and polarity selection, TI1FP1 = TI1 if not filtered and not

inverted, TI2FP2 = TI2 if not filtered and not inverted.) The timer input logic evaluates the sequence of the

two inputs’ values, and from this generates both count pulses and the direction signal. Depending on the

sequence, the counter counts up or down, and hardware modifies the TIM_DIR bit in the TIMx_CR1 register

accordingly. The TIM_DIR bit is calculated at each transition on any input (TI1 or TI2), whether the counter is

counting on TI1 only, TI2 only, or both TI1 and TI2.

Encoder interface mode acts simply as an external clock with direction selection. This means that the counter

counts continuously between 0 and the auto-reload value in the TIMx_ARR register (0 to TIMx_ARR or

TIMx_ARR down to 0 depending on the direction), so TIMx_ARR must be configured before starting. In the

same way, the capture, compare, prescaler, and trigger output features continue to work as normal.

In this mode the counter is modified automatically following the speed and the direction of the incremental

encoder, and therefore its contents always represent the encoder’s position. The count direction corresponds

to the rotation direction of the connected sensor. Table 9-3 summarizes the possible combinations, assuming

TI1 and TI2 do not switch at the same time.

9-20

120-035X-000D

Preliminary
