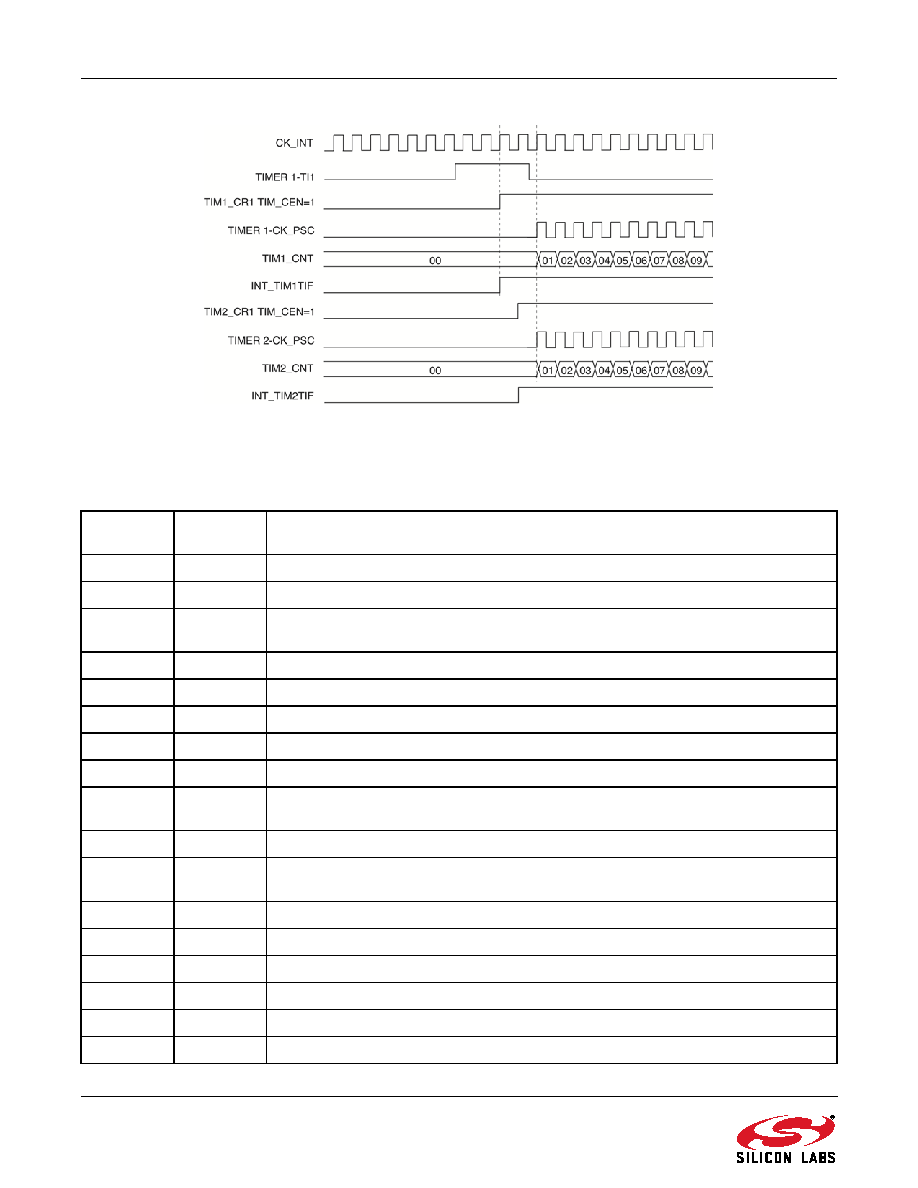

Figure 9.36. Triggering Timer 1 and 2 with Timer 1 TI1 Input

9.3.15. Timer Signal Descriptions

Table 9.4. Timer Signal Descriptions

Signal

Internal/

External

Description

CK_INT

Internal

Internal clock source: connects to EM35x peripheral clock (PCLK) in internal clock mode.

CK_PSC

Internal

Input to the clock prescaler.

ETR

Internal

External trigger input (used in external timer mode 2): a clock selected by TIM_EXTRIGSEL in

TIMx_OR.

ETRF

Internal

External trigger: ETRP after filtering.

ETRP

Internal

External trigger: ETR after polarity selection, edge detection and prescaling.

ICy

External

Input capture or clock: TIy after filtering and edge detection.

ICyPS

Internal

Input capture signal after filtering, edge detection and prescaling: input to the capture register.

ITR0

Internal

Internal trigger input: connected to the other timer’s output, TRGO.

OCy

External

Output compare: TIMxCy when used as an output. Same as OCyREF but includes possible

polarity inversion.

OCyREF

Internal

Output compare reference: always active high, but may be inverted to produce OCy.

PCLK

External

Peripheral clock connects to CK_INT and used to clock input filtering. Its frequency is 12 MHz

if using the 24 MHz crystal oscillator and 6 MHz if using the 12 MHz RC oscillator.

TIy

Internal

Timer input: TIMxCy when used as a timer input.

TIyFPy

Internal

Timer input after filtering and polarity selection.

TIMxCy

Internal

Timer channel at a GPIO pin: can be a capture input (ICy) or a compare output (OCy).

TIMxCLK

External

Clock input (if selected) to the external trigger signal (ETR).

TIMxMSK

External

Clock mask (if enabled) AND’ed with the other timer’s TIMxCLK signal.

TRGI

Internal

Trigger input for slave mode controller.
